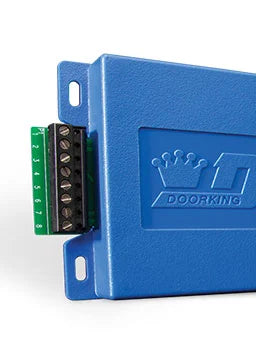

8040-080 MicroPlus / MicroClik Receiver, 318 MHz, Selectable Low-Power Mode

by DoorKing
Product Code: 8040-080

The 8040 sends the transmitter codes to a access controller (such as a DKS 1830 Series System) in wiegand format. This receiver can also be programmed as a stand-alone device. It is also ideal for solar-powered applications as it has an extremely low power draw while in stand-by mode.

Pickup Eligible for free local pickup. If this item is out of stock, we will bring it to an R&S location near you at no cost.
Shipping Eligible for shipping. Freight will apply.
Loading locations...

Please log in to see if you’re eligible to purchase this product.

$178.82
Shipping calculated at checkout.
No Tariff No import tariff
Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description
The DoorKing 8040-080 receives signals from compatible 318 MHz MicroPlus or MicroClik transmitters and sends transmitter data to an access controller in 26-, 30-, or 31-bit Wiegand format. It can also operate as a stand-alone receiver, storing up to 100 transmitter codes and activating equipment through its built-in Form C relay. A selectable low-power mode supports solar-powered gate installations when using the stand-alone relay connection. Operates on 12–24 VAC or VDC. The receiver must be programmed for either MicroPlus or MicroClik operation; Wiegand output is unavailable in low-power mode.
