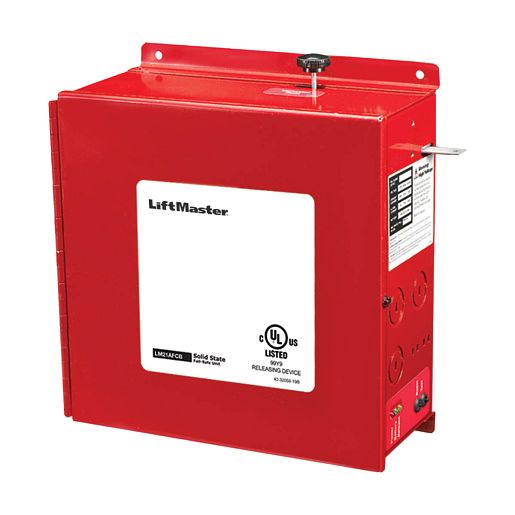

LM21-AFCB Advanced Fire Control Release Device w/ BBU

by LiftMaster
Product Code: LM21-AFCB
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$1,410.34
Shipping calculated at checkout.

The AFCB release device is designed to be used in conjunction with a standard commercial door operator to provide a fully automated door closing system. For use with motorized doors incorporating a reversing electric safety edge, this 120VAC device can power up to 4 smoke detectors and 2 horn/strobes. This system combines state-of-the-art functionality and advanced features typically found on special-order fire door operators. Features include: UL864/ULC-S527/S533 Listed Programmable DIP switch delay setting – either 10, 20, 30, 60 second delay of door release to permit passage clearance Plus: Internal battery backup system Obstruction cycling – working in conjunction with the door’s electrical safety edge reverses the door if an obstruction is encountered Motor voltage sensing Test key switch – permits floor-level testing of the system

LM21-AFCB Advanced Fire Control Release Device w/ BBU is available for shipping.

No Tariff No import tariff

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description

The AFCB release device is designed to be used in conjunction with a standard commercial door operator to provide a fully automated door closing system. For use with motorized doors incorporating a reversing electric safety edge, this 120VAC device can power up to 4 smoke detectors and 2 horn/strobes. This system combines state-of-the-art functionality and advanced features typically found on special-order fire door operators.

Features include:

  • UL864/ULC-S527/S533 Listed
  • Programmable DIP switch delay setting – either 10, 20, 30, 60 second delay of door release to permit passage clearance

Plus:

  • Internal battery backup system
  • Obstruction cycling – working in conjunction with the door’s electrical safety edge reverses the door if an obstruction is encountered
  • Motor voltage sensing
  • Test key switch – permits floor-level testing of the system
