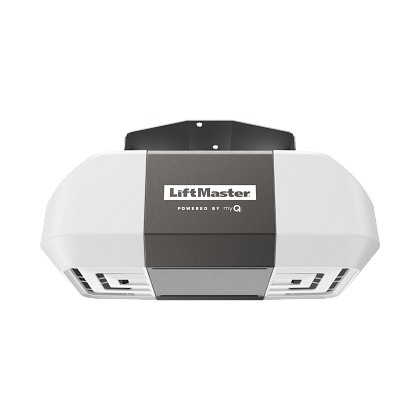

ATSWTMC ATSW WIFI Light Duty Trolley Operator, 115V, Single Phase

by LiftMaster
Product Code: ATSWTMC
Pickup Eligible for free local pickup. If this item is out of stock, we will bring it to an R&S location near you at no cost.
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$680.26
Shipping calculated at checkout.
  • Includes (1) 883LMW – Encrypted Control and photoeyes.
  • Built-in Wi-Fi enables access to mQ
  • Built-in Bluetooth for easier connection to building's Wi-Fi network
  • Dual-rated for residential and commercial doors; tested and approved for commercial duty cycle requirements.
  • Ceiling mount for standard lift sectional doors
  • Ideal for pole barns and similar structures for storage and manufacturing.
Tariff Subject to a 11.5% tariff surcharge at checkout

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description

Light Duty Applications

  • Dual-Rated for Residential and commercial doors with light-duty cycle requirements
  • Ideal for use in pole barns and similar structures for storage and manufacturing

Smart

  • myQ® Technology enables monitoring and control of the property operators through a mobile app or the myQ Facility website.
  • Built-In Bluetooth for simple operator internet connection.
  • Built-In Wi-Fi for an easier connection to the building's Wi-Fi network.
  • Real-Time Alerts indicate the status of doors via email or push notifications.

Quiet and Secure

  • Motor Vibration Isolation System (MVIS) for smoother and quieter operation.
  • Security+ 2.0® safeguards access to property with an encrypted signal to offer extended range.
  • The Protector System® auto-reverses the door if an entrapment protection device detects an obstruction.

Note: UL 325 requires all commercial door operators to be either constant pressure to close or be equipped with a primary external monitored entrapment device.

Reliable

  • High-Starting Torque Motor with overload protection.
  • Rated Load 600 inch-pounds per second to satisfy a wide range of light-duty cycle applications.
  • Warranty 1 year.

Powerful Add-Ons:

  • LiftMaster’s® LC36M Monitored Light Curtains provide up to 33 ft. of protection range and a minimum of 36 in. of height coverage to keep your customers, employees and equipment safe.
  • 827LM myQ Remote Led Light Operates automatically with the operator and works with the myQ App.
  • 50111 Center Support Bracket for 14 ft. rail provides additional rail support. Standard with 14’ rail, optional for all other door sizes.
  • 893MAX Remote Controls Program up to three LiftMaster operators with Security+ 2.0 Rolling Code Technology users are assured of a new code with every use.
  • KPW5/ KPW250 Wireless Keypads NEMA 4X (water protection requirements) sealed electronics for reliable outdoor use.
  • 878MAX Wireless Keypads Programmable to Security+® Technology, this keypad provides convenient, secure access with a 4-digit PIN.
  • 880LMW Smart Control Panel® LCD display with motion sensing and Timer-To-Close (TTC) capability.
