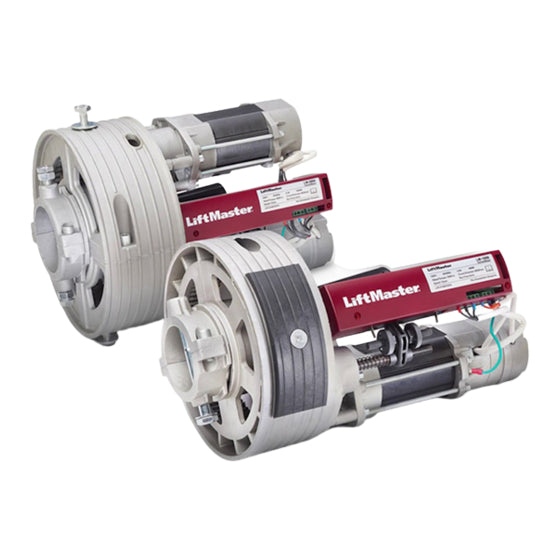

LM-1600 LM1600 Central Motor, 352 lbs. maximum lift force
Eligible for shipping. Freight will apply.
LM-1600 LM1600 Central Motor, 352 lbs. maximum lift force is available for shipping.
Subject to a 11.5% tariff surcharge at checkout
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description

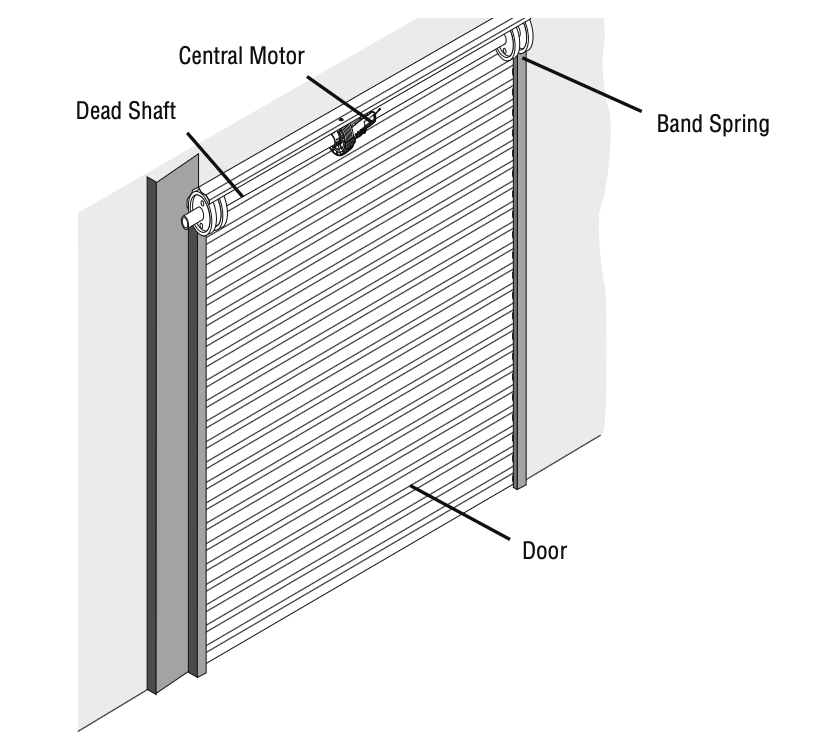

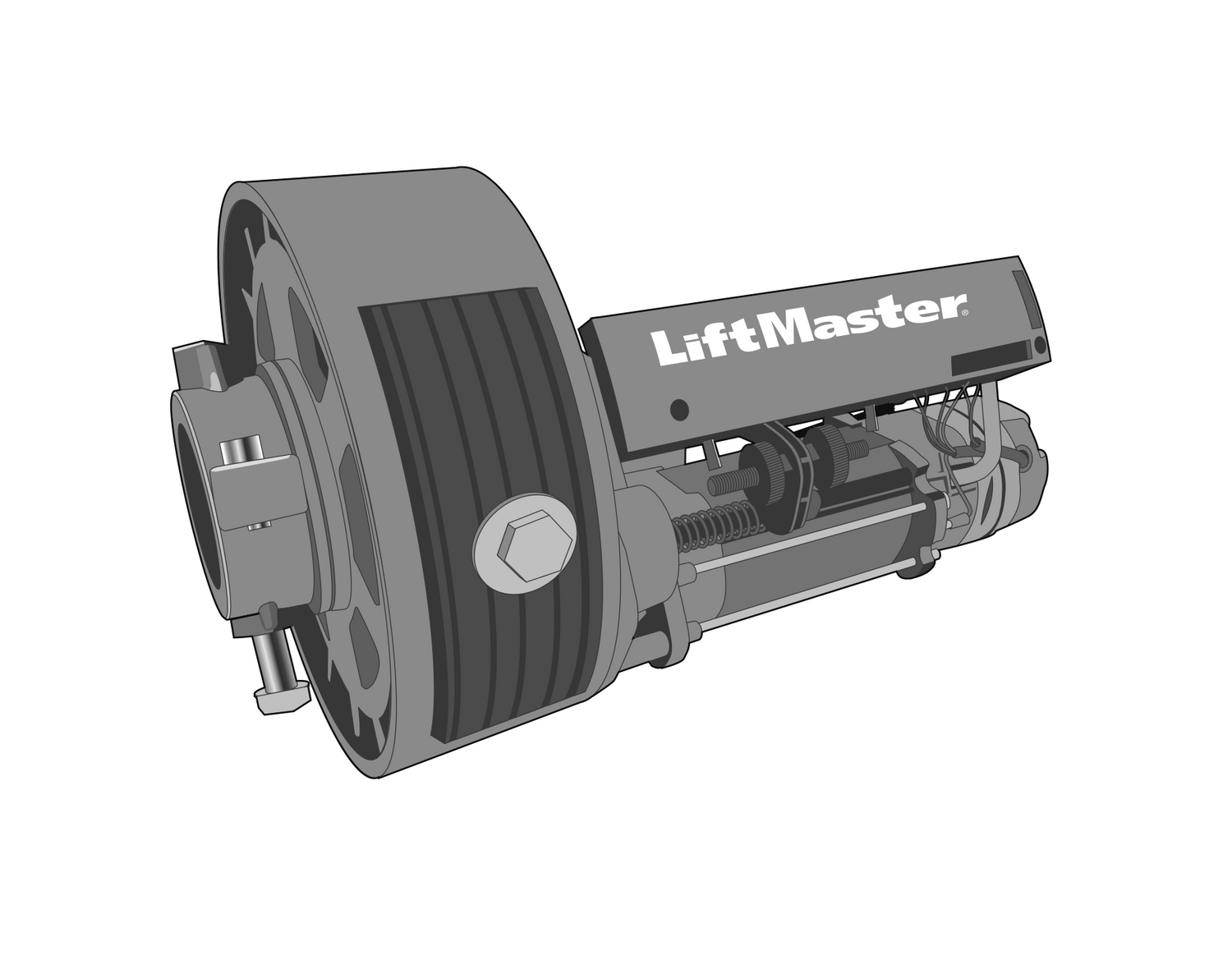

Central Motors are electric motors used with rolling type doors (Slat, Grill, etc.) that roll-up around the shaft on the crown of the motor.The Central Motor is to be used only with a balanced door.The motor housing is mounted around the dead shaft and its internal electric motor rotates a gear- driven crown attached/bolted to the rolling door. The door rolls around the crown when opening the door and unrolls when the door is closing. This type of motor is frequently used when there is not enough space on the sides of the door for a chain or gear-driven motor. Rolling doors used with Central
Motors should not be confused with side-driven motors used on rolling sheet steel doors.
Central Motors are for use on dead shafts ONLY ranging from 1.65" (42 mm) to 2.99" (76 mm), with 2.36" (60 mm) being the most common size.
