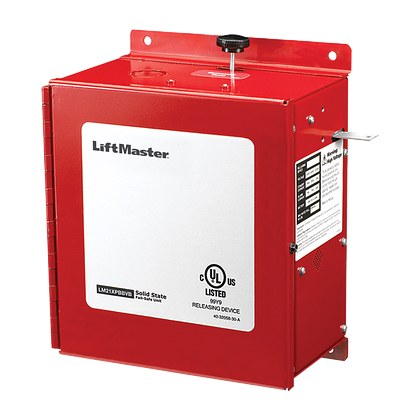

LM21XPBB Extended Performance Release Device with Battery Backup

by LiftMaster
Product Code: LM21XPBB
Pickup Eligible for free local pickup. If this item is out of stock, we will bring it to an R&S location near you at no cost.
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$956.83
Shipping calculated at checkout.

Versatility allows the XPBB release device to operate on 120VAC, 24VAC, or 24VDC power sources. Internal Battery Backup allows the release device to stand-alone from the fire alarm system and act independently in the event of a power outage. The system can provide 24VDC power for up to 4 smoke detectors and 2 horn strobes mounted on either side of the door. Programmable delay settings, close door detection, diagnostic LEDs, localized testing and reset capabilities are all also standard. Features include: • UL864/ULC-S527/S533 Listed • Programmable DIP switch delay setting – either 10, 20, 30, 60 second delay of door release to permit passage clearance Plus: • On board diagnostic LEDs for easy trouble shooting • Inputs for normally open 2- or 4-wire detectors and 4-wire normally closed detectors • Trouble and alarm relays for communication with the fire alarm control panel, if required • Audible trouble sounder to indicate when the release device is not operational • Testing function allows routine fire door testing without requiring activation of the smoke detector
No Tariff No import tariff

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description

Versatility allows the XPBB release device to operate on 120VAC, 24VAC, or 24VDC power sources. Internal Battery Backup allows the release device to stand-alone from the fire alarm system and act independently in the event of a power outage. The system can provide 24VDC power for up to 4 smoke detectors and 2 horn strobes mounted on either side of the door. Programmable delay settings, close door detection, diagnostic LEDs, localized testing and reset capabilities are all also standard.

Features include:

• UL864/ULC-S527/S533 Listed

• Programmable DIP switch delay setting – either 10, 20, 30, 60 second delay of door release to permit passage clearance

Plus:

• On board diagnostic LEDs for easy trouble shooting

• Inputs for normally open 2- or 4-wire detectors and 4-wire normally closed detectors

• Trouble and alarm relays for communication with the fire alarm control panel, if required

• Audible trouble sounder to indicate when the release device is not operational

• Testing function allows routine fire door testing without requiring activation of the smoke detector
