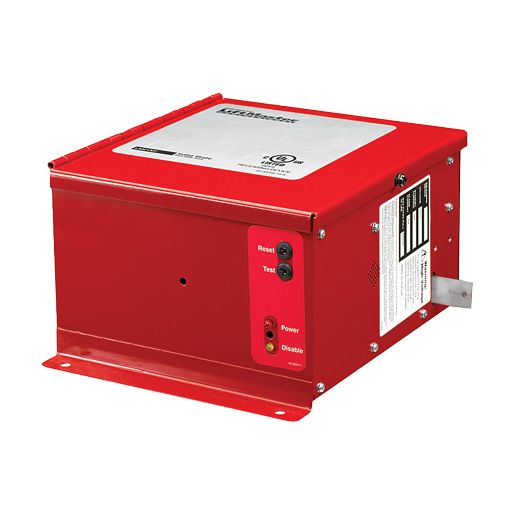

LM21XP High Performance Release Device w/out BBU

by LiftMaster
Product Code: LM21XP
Pickup Eligible for free local pickup. If this item is out of stock, we will bring it to an R&S location near you at no cost.
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$615.85
Shipping calculated at checkout.

The XP release device provides a fail-safe release mechanism for non-motorized doors and acts as an interface between the door and fire alarm system. The device requires 24VDC power from an approved UL1481 regulated power supply with Battery Backup, such as a fire alarm control panel. Therefore, installation will require coordination with a fire panel installer. Features include: • UL864/ULC-S527/S533 Listed • Programmable DIP switch delay setting – either 10, 20, 30, 60 second delay of door release to permit passage clearance Plus: • On board diagnostic LEDs for early trouble shooting • Close door detection – prevents door release if the door is kept in the closed position and eliminates door reset service calls or potential system damage • Testing function allows routine fire door testing without requiring activation of the central alarm system; easy reset function returns the device to standby state
No Tariff No import tariff

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description

The XP release device provides a fail-safe release mechanism for non-motorized doors and acts as an interface between the door and fire alarm system. The device requires 24VDC power from an approved UL1481 regulated power supply with Battery Backup, such as a fire alarm control panel. Therefore, installation will require coordination with a fire panel installer.

Features include:

• UL864/ULC-S527/S533 Listed

• Programmable DIP switch delay setting – either 10, 20, 30, 60 second delay of door release to permit passage clearance

Plus:

• On board diagnostic LEDs for early trouble shooting

• Close door detection – prevents door release if the door is kept in the closed position and eliminates door reset service calls or potential system damage

• Testing function allows routine fire door testing without requiring activation of the central alarm system; easy reset function returns the device to standby state
