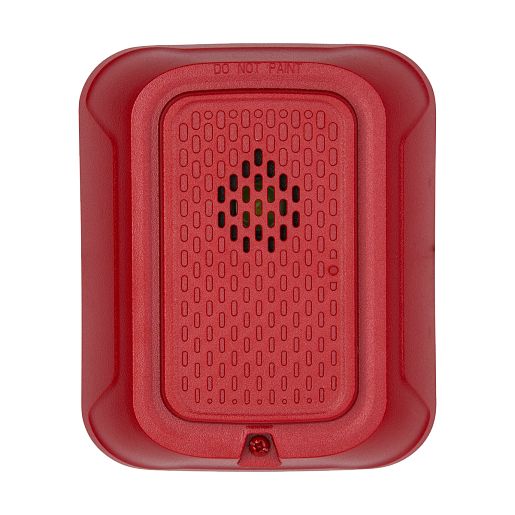

LMH24R Horn, 12/24VDC, Red

by LiftMaster
Product Code: LMH24R
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$95.32
Shipping calculated at checkout.

LMH24R Horn, 12/24VDC, Red is available for shipping.

No Tariff No import tariff

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description

Plain Red 2-Wire, Horn Strobe 12/24VDC

Features

  • Auto Voltage Selection: 12 Volt/15 candela or 24 Volt/30 candela
  • Field-Selectable Candela Settings: 15/30/75/95/ 110, 135, 185
  • Horn Speaker Watts: 88+ dBA at 16 Volts
  • dBA Adjustment: Rotary Switch for Horn Tone and 2 Volume Selections
  • Mounting Type: Indoor Wall-Mount Only
  • Standard Operating Temprature: 32°F to 120°F (0°C to 490°C)
  • Humidity Range: 10% to 93% non-condensing
  • Strobe Flash Rate: 1 Flash per Second
  • Nominal Voltage: Regulated 12 VDC or Regulated 24 VDC/FWR
  • Operating Voltage Range: 8 Volt to 17.5 Volt (12 Volt nominal) or 16 Volt to 33 Volt (24 Volt Nominal)
  • Wall-Mount Dimensions (including Lens): 5.6" L x 3.46" W x 1.91" D (143mm L x 119mm W x 49mm D)
  • Horn and Speaker (only) Dimensions: 5.6" L x 3.46" W x 1.25" D (143mm L x 119mm W x 32mm D)
  • Strobe products will operate at 12 V nominal only for 15 candela and 30 candela. Specifications are subject to change.
