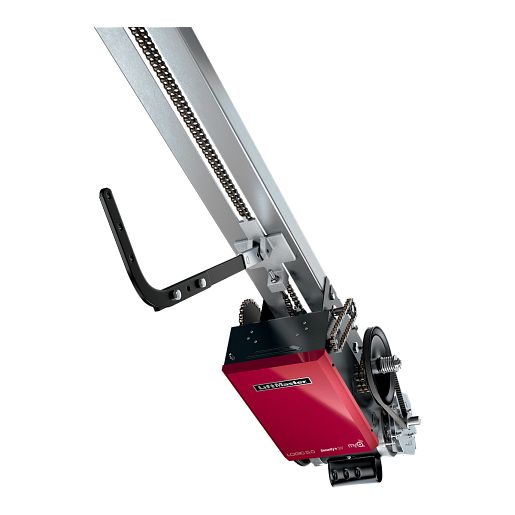

APT501L5-MC Apartment Trolley Operator

Logic 5.0 apartment trolley commercial door operators are optimal for high-cycle apartment house applications. These operators employ an auto-reconnect trolley with nylon inserts and a resilient-mount motor for quiet operation. Suspended from the ceiling, they are used on sectional overhead doors with a standard lift. APT operators are directly attached to drive and control the door.

Connectivity

• MyQ® Technology enables you to securely monitor and control your facility door operator and lights with your smartphone, tablet, or computer for greater peace of mind.
• Alerts can be received as email or pop-up (push) notifications.

Performance

• Resilient-mount motor provides quiet operation.
• Control function selector dial allows for easy selection and programming of seven wiring types—from constant pressure to close to specialized Timer-to-Close functionality—to meet end user needs.
• Timer-to-Close conveniently and confidently closes the commercial door automatically after a predetermined amount of time has elapsed for added security and peace of mind.
• Mid-stop enables partial opening of the door to a preprogrammed position for energy savings, time savings, and convenience.
• Dual voltage connections increase flexibility by enabling the installer to select the required voltage within phase to meet job-site requirements. Within phases, voltage is selectable at the time of installation with the placement of a connector.
• Continuous-duty high-starting torque motor with instant reverse and overload protection. Capacitor start with single phase, removable without affecting limit switches.
• Adjustable friction clutch helps protect the door and operator from damage should the door meet an obstruction.
• Maximum run timer reverses or stops the door if closing time exceeds the expected time frame to limit damage to door and operator.
• Delay-on-reverse circuit prevents abrupt reversal of door, reducing wear on the door and operator system.
• 3-Button Control Station with Maintenance Alert System (MAS).
• Drive reduction: first stage heavy-duty 5L V-belt; second and third stages #41 chain; #48 output chain on trolley.
• Bearings: industrial ball bearings on output and first reduction shafts; bearings on second reduction shaft.
• Brake: standard on APT.
• Construction: NEMA 1-rated electrical box, heavy-duty 11-gauge steel frame with durable powder-coat finish. All reduction sprockets drilled and pinned to shafts.
• #41 trolley roller chain standard with APT operators.
• Door speed: 6–7 in. per second.
• Warranty: 2 years.

Safety

• Security+ 2.0™ radio receiver is standard on-board with Logic 5.0 operators and virtually eliminates radio frequency interference.
• Accepts up to 90 one-button or 30 three-button remote controls, plus up to 30 wireless keypads or an unlimited number of DIP switch remote controls.
• LiftMaster® Commercial Door Operators comply with UL 325 standards.
• LiftMaster offers a variety of entrapment protection devices for every commercial application.
• Emergency Disconnect with Auto-Reconnect disconnects the operator from the door for manual lifting in an emergency and automatically reconnects for convenience.
