MAX MINI EDGE Small Footprint Slide Gate Safety Device 48"

by Maximum Controls
Product Code: MAX MINI EDGE
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$255.11
Shipping calculated at checkout.
  • For installations where a low profile design, compliance, safety and reliability are critical.
  • Maximum Controls introduces the Max Mini Edge, a maintenance free, easy to install, high quality, reversing, edge sensor, small in footprint but safe enough to use on train doors where failure is not an option.
  • The Max Mini Edge operates at extreme temperature ranges and is small enough not to be an eyesore in critical applications.
  • Reliable, cost effective solution for UL 325 2018 compliance.

MAX MINI EDGE Small Footprint Slide Gate Safety Device 48" is available for shipping.

Tariff Subject to a 7% tariff surcharge at checkout

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description

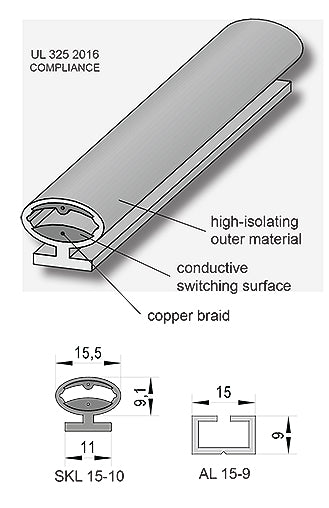

Maximum Controls introduces the Max Mini Edge, a maintenance free, easy to install, high quality, reversing, edge sensor, small in footprint but safe enough to use on train doors where failure is not an option. The Max Mini Edge operates at extreme temperature ranges and is small enough not to be an eyesore in critical applications.

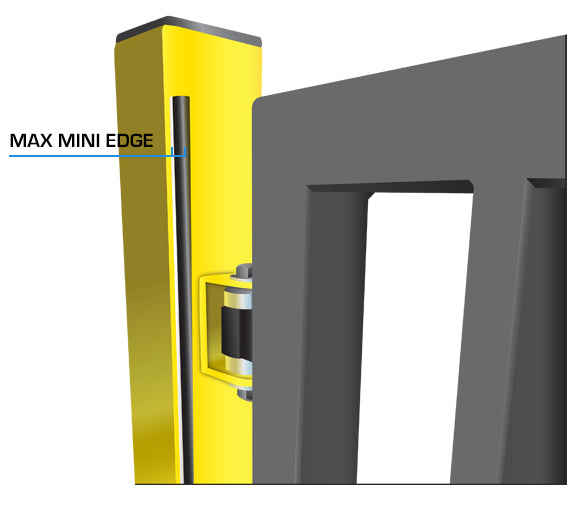

Maximum Controls offers a reliable, cost effective, swing & sliding gate edge solution for UL 325 2018 compliance.

  • MADE IN: Germany
  • LENGTH: 48″
  • ATTACHMENT HARDWARE: 48″ Aluminum Bar
  • MATERIAL: EPDM Rubber
  • ACTIVATION FORCE: Soft Touch Engagement
  • OPERATING TEMPERATURE: -25° + 75° / -13°F +167°F
  • RAINPROOF: Both ends
  • LENGTH OF ATTACHMENT CABLE: 5M / 15FT
  • CABLE MATERIAL: Pure Matt Schwarz / Pure Matte Black
  • MULTI DIRECTIONAL SENSING: Yes
  • WARRANTY: 1 Year
  • MAINTENANCE: Free
