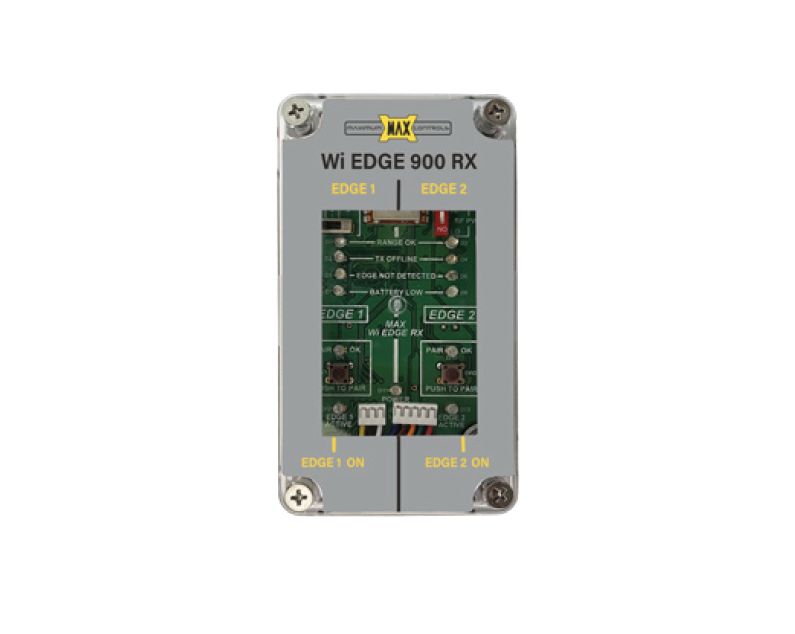

MAX WETX Wireless Edge 900 Tx (Receiver)

by Maximum Controls
Product Code: MAX WERX
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$337.33
Shipping calculated at checkout.
  • Up to 200 ft range (line of sight)
  • Response time 100ms
  • 12 VDC, Current draw 70 mA
  • UL 325 Compliant
  • Dimensions 1.625” d x 2.5”w x 4.5” h
  • Monitor real-time status of both edge transmitters with indicator LEDs

MAX WETX Wireless Edge 900 Tx (Receiver) is available for shipping.

Tariff Subject to a 7% tariff surcharge at checkout

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description

The Max Wireless Edge 900 is tailored for residential, commercial, and industrial gate applications, this cutting-edge solution prioritizes safety. Exclusively compatible with Max Gate Operators, the Wireless Edge 900, in collaboration with the robust Max DSP Controlled brushless motor, ensures an unparalleled quick response time, setting it apart from others in the industry. Distinguished by diagnosing features such as individual indicator lights for every error type, this premier solution brings together advanced technology and ease of use, making it the ultimate choice for those seeking to elevate the safety and efficiency of gate operators.

Features

  • Logs error types on both the error log on operator and Max Cloud App
  • Three frequency channel selections to prevent cross talk with nearby operators, ensuring interference-free operation
  • Clearly-labeled individual LED lights for each error type, providing easy identification
  • Low latency, making it the fastest reacting wireless edge for enhanced safety in the Market
  • Pre-wired device with a pre-installed bracket for simplified installation

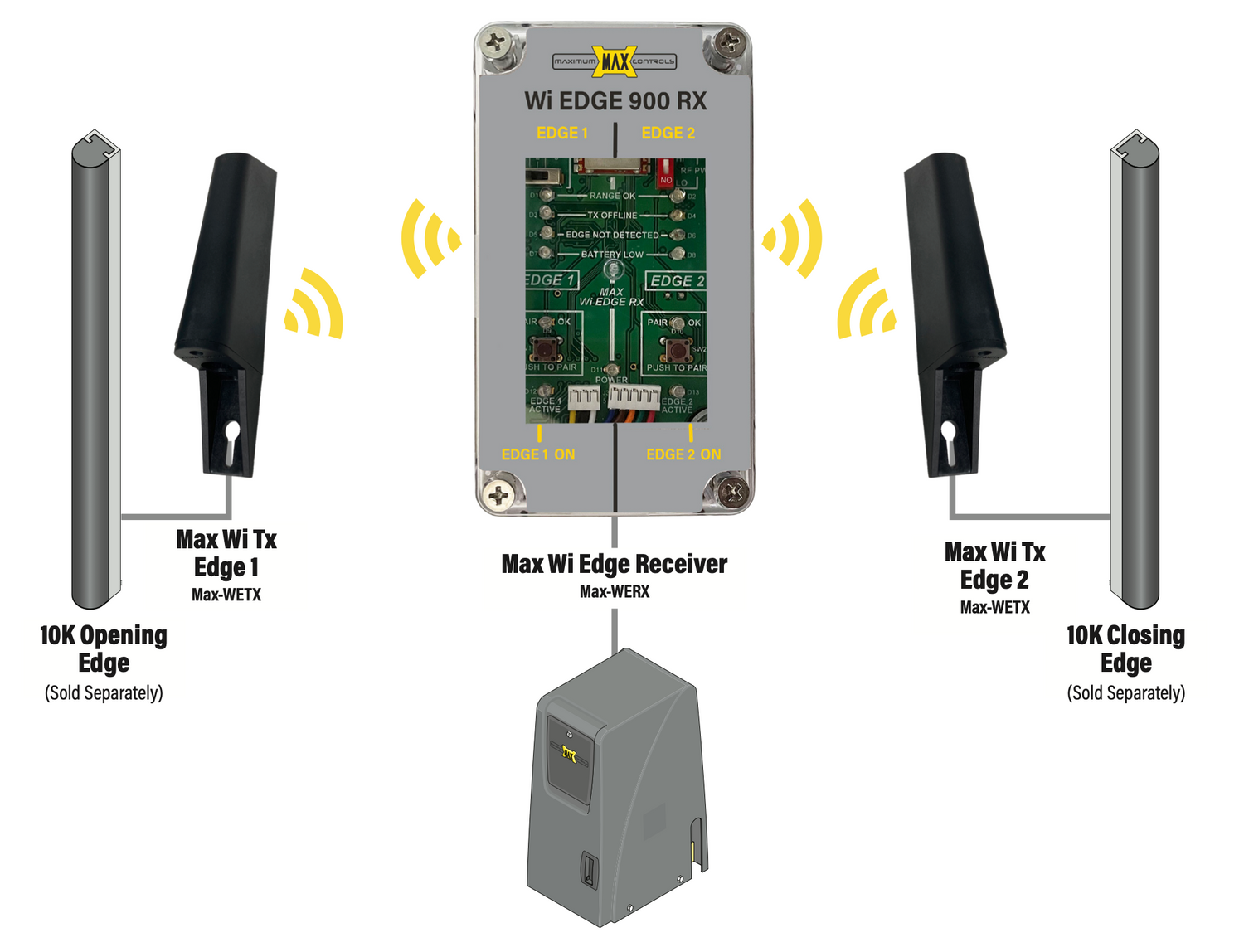

  • Accepts two transmitters per receiver
  • Accepts two monitored edges per transmitter

Specifications

  • Operating range: Up to 200 ft. (line of sight)
  • Operating frequency: 915 MHz 915 MHz
  • Response time: 100ms 100ms 100ms
  • Environmental rating: UL 325 Compliant UL 325 Compliant UL 325 Compliant
  • Battery Type: AA8 Lithium Batteries, Energizer “Ultimate Lithium” (3500 mAH)
  • Operating temperature -10°- 156°F -10°…156°F -10° to 156°F
  • Dimensions (L x W x H) 2.25” d x 1”w x 7.125”

Products

  • Max-WERX - Max Wi Edge 900 Rx (Receiver)
  • Max-WETX - Max Wi Edge Tx (Transmitter)
  • Max-WETX-BRKT - Max Tx Mounting Bracket
