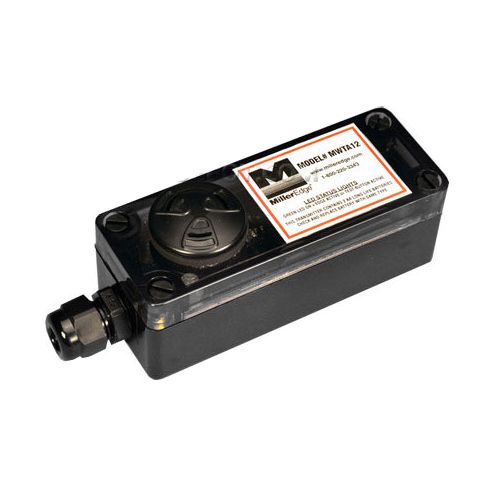

MWTA12 Wireless Edge Transmitter with Low Battery Alarm
Eligible for free local pickup. If this item is out of stock, we will bring it to an R&S location near you at no cost.
Eligible for shipping. Freight will apply.
MWTA12 Wireless Edge Transmitter with Low Battery Alarm is available for shipping.
Subject to a 2% tariff surcharge at checkout
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description
The Miller Edge Model MWTA12 and MWT12 safety edge transmitters are designed to provide wireless signal transmission from the safety edge to the motor controls. They are easily mounted and wired to the gate or door edge sensor. When the sensing edge comes into contact with an obstruction, a closed circuit signal is created and is sent to the transmitter. The transmitter relays the information to the receiver and the receiver passes the signal along to the operator motor. The gate or door stops movement and will then reverse the direction of travel.
The Model MWTA12 is available with an Audible Alarm feature that activates when the battery is running low and needs to be replaced.
Both models of the transmitter come standard with a NEMA 4 weather-proof enclosure. The enclosure can be easily mounted with the four mounting holes and screws provided.
Both the Miller Edge receiver and transmitter have a compact design which allows for easy trouble shooting via the see-thru case. Selectable features include: coded dip switches and a wire harness for relay options.
