6006-381 Swing Gate Actuator 24VDC, Secondary
Eligible for shipping. Freight will apply.
Please log in to see if you’re eligible to purchase this product.
6006-381 Swing Gate Actuator 24VDC, Secondary is available for shipping.
No import tariff
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description

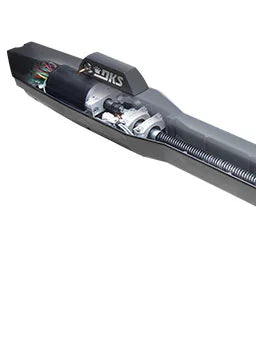

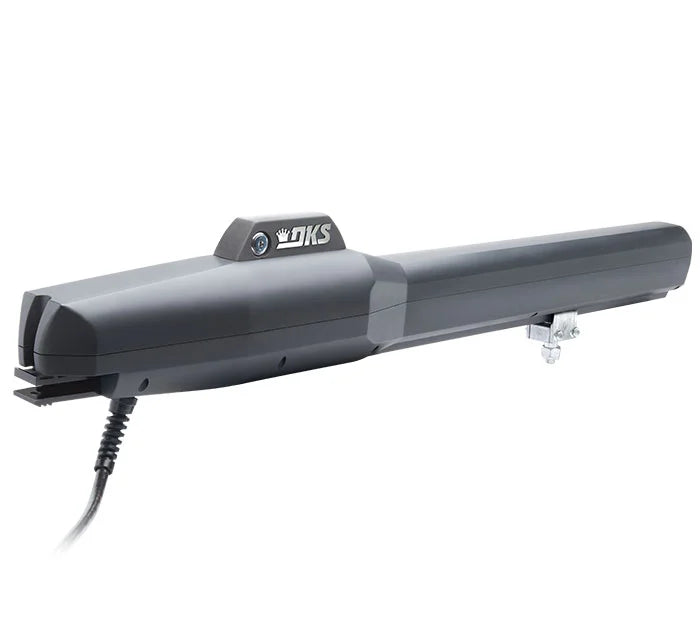

DKS 6006 Swing Gate Operator offers convenience and reliability in a compact, aesthetic design. This Operator mounts directly to your gate and pilaster, simplifying installation and not requiring concrete mounting pads. The screw-driven action is powered by a 24 Volt DC motor, eliminating the worry over hydraulic leaks, check valves or pumps. Built-in no-contact magnetic limit switches precisely control the start / stop speed of the operator, all powered by a microprocessor control board.
The 6006 operator operates on 24 Volt DC power and features built-in limit switches that precisely control the start / stop speed, and travel of your gate. The microprocessor-based electronic control board provides many advanced features typically not found in operators in this class. The control box can be powered by 120 Volt AC, which is then converted to 24 Volt DC to power the operator and control board. Two 120 Volt control boxes are available to choose from, Deluxe and Standard. The Deluxe control box includes three 120 VAC outlets to power accessory transformers. Both include 3.5 Ah (Amp Hour) batteries for backup power operation. You can also select our Solar Powered Control Box, which eliminates the need for high-voltage power runs.
Features
- Solar Powered Control Box: Eliminate expensive trenching with the Solar Control Box
- Smooth Operation: 6006 Swing Gate Operator provides smooth gate operation soft start/soft stop.
- Reliability In a compact and simple to install design

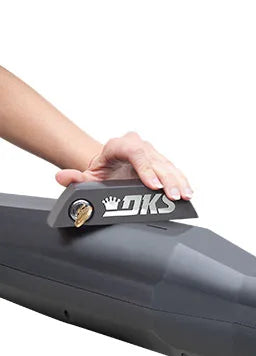

- Keyed Release: The gate will remain closed if the power is lost, with options to manually operate the gate or rely on a backup battery

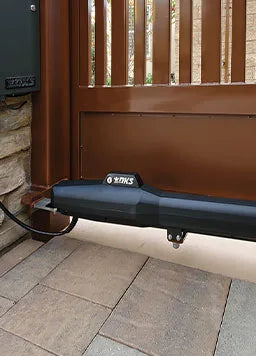

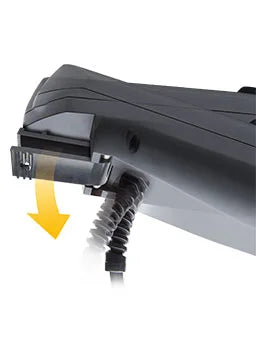

- Easy Install: No-dig installation, the 6006 mounts directly to the gate and gate post. Rear bracket pivots, allowing the unit to be removed easily
- Fully Enclosed: The enclosure has an IP54 protection class rating, delivering a high level of protection against particles and water for a reliable product built to last for years.
Specifications
- Gate Maximums: (Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
- 8 Ft. (2.43m) @ 1600 lbs (725.7kg)
- 16 Ft. (4.87m) @ 800 lbs (362.8kg)
- 18 Ft. (5.48m) @ 600 lbs (272.1kg)
- Speed: 90° in approximately 18-20 seconds
- Actuator operates at 24 Volts DC power.
- Class I, II applications.
- Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices need to be installed with this gate operator.
- Dimensions (actuator only): 4″ (10.1cm)D x 6.25″ (15.8cm)H x 40″ (101.6cm)L
- Dimensions (120 Volt deluxe control box): 14.5″W x 24″H x 4.25″D
- Dimensions (120 Volt standard control box): 12.5″W x 16.5″H x 4.25″D
- Dimensions (24 Volt Solar control box): 13″W x 21″H x 8″D
