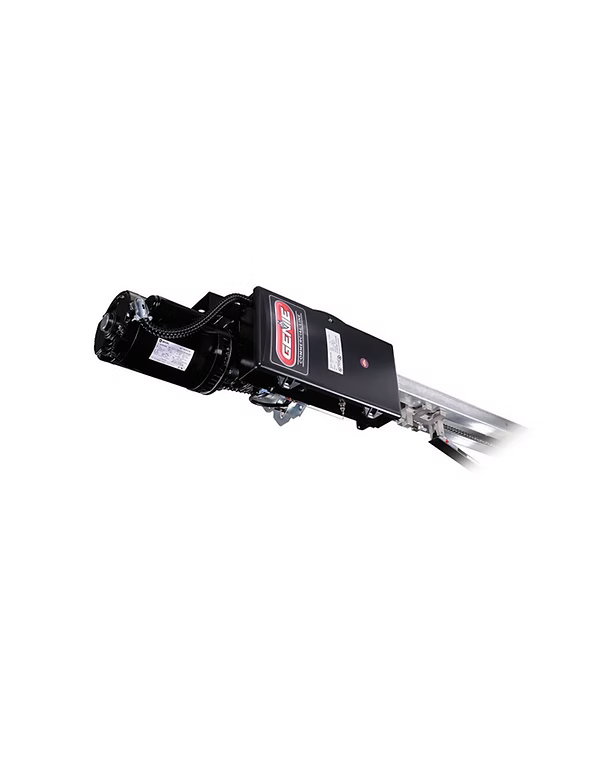

Operator Kit, 1/2 HP, 208/230/460V, 3PH, Heavy Duty, For 27 Sectional Dr, w/ OPGHXT5003B Oper, 50-26T SPRkt, 38176R.S Mon Photo Eyes

by Genie
Product Code: 112632.301
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$1,836.39
Shipping calculated at checkout.

The GCL-GT is designed for standard lift sectional doors that have up to 60-cycle/hour duty requirements. Advanced features and robust mechanical design combine to provide a heavy-duty operator that sets a new standard for productivity.

Operator Kit, 1/2 HP, 208/230/460V, 3PH, Heavy Duty, For 27 Sectional Dr, w/ OPGHXT5003B Oper, 50-26T SPRkt, 38176R.S Mon Photo Eyes is available for shipping.

No Tariff No import tariff

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description

Advantages

  • MultiVolt® - Order phase-specific operator for the job and have the ability to select the right voltage on the job site.
  • Single Phase: 115/208/230V AC
  • Three Phase: 208/230/460V AC
  • 575V AC voltage models available separately
  • Modular design with optional expansion boards for an advanced timer to close, and auxiliary output functionality.
  • LCD display with intuitive setup menu. Provides current status and trouble-shooting assistance.
  • Internal receiver with the ability to individually add/delete up to 50 Intellicode® transmitters directly from the LCD display.
  • EZ Limit® provides for push-to-set limits that stay synchronized with door through a long-term loss of power.
  • The low-profile height of the power head maximizes the clearance for vehicular traffic.
  • Open/close/stop and setup keys included on the control board. Keeps all controls near the LCD display convenient for set up.
  • The quiet trolley carriage with high-strength wear pads eliminates a need to apply grease to rails.

Standard Features

  • UL 325 2010 approved.
  • EZ Limit® electro-mechanical limits.
  • MultiVolt® voltage simplification.
  • Max run timer automatically adjusts to up and down run time.
  • Heavy-duty worm gearbox for primary reduction.
  • Delay on reverse.
  • 16-character LCD display.
  • Advanced radio receiver displays and stores activation by transmitter ID number on the LCD screen.
  • 3-button control station.
  • 2-year/20,000 cycle warranty.
  • Programmable mid-stop.
  • Drawbar disconnect for emergency manual operation.
  • DC disc brake with progressive braking.
