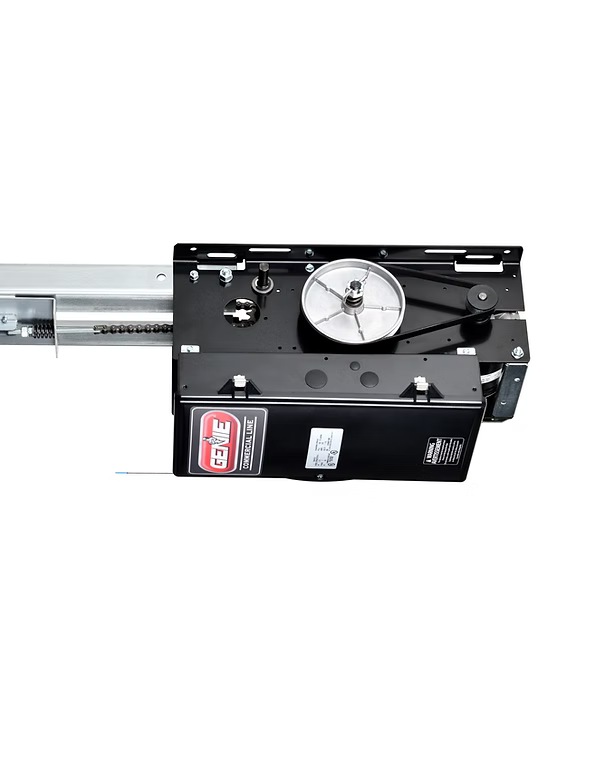

T Operator Kit, 1/2 HP, 115V, 1PH, Med Duty, For 12' Sectional Dr, w/ OPGMZT5011B Oper, Rails (112634.1012), 38176R.S Mon Photo Eyes

by Genie
Product Code: 113206.101
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$1,007.82
Shipping calculated at checkout.

The new Z Series GCL-MT is designed for standard-lift sectional doors that have a 15-cycle/hour or fewer duty requirement. Advanced features and robust mechanical design combine to provide a medium-duty operator that is the new standard in the industry.

T Operator Kit, 1/2 HP, 115V, 1PH, Med Duty, For 12' Sectional Dr, w/ OPGMZT5011B Oper, Rails (112634.1012), 38176R.S Mon Photo Eyes is available for shipping.

No Tariff No import tariff

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description

Advantages

  • Rated for 15 cycles per hour operation. Maximizing the performance of a medium-duty operator.
  • Modular design with optional expansion boards for an advanced timer to close, and auxiliary output functionality.
  • Included internal Intellicode® receiver learns up to 50 transmitters with randomly assigned identity numbers. Learn and delete individual transmitters directly from LCD display.
  • Ball bearing motor with built-in thermal protection and ball bearing drive end provides overload protection, extends motor life due to use of bearings over bushings, and isolates motor for quiet operation.
  • Open/close/stop and setup keys included on control board. Keeps all controls near the LCD display convenient for set up.
  • Electric box isolated from frame for reduced vibration.
  • Quiet trolley carriage with wear pads eliminates the need to grease trolley rails.
  • Uses common 2” rails used by the standard and heavy-duty trolley operators.

Standard Features

  • UL 325 2010 approved.
  • 11.5 inches per second door speed.
  • EZ Limit® electro-mechanical limits.
  • Max run timer automatically adjusts to up and down run time.
  • TensiBelt® primary reduction.
  • Delay on reverse.
  • 16-character LCD display.
  • 3-button control station.
  • 2-year/20,000 cycle warranty.
  • Programmable mid-stop.
  • Built-in cycle count and trouble-shooting assistance via LCD display.
