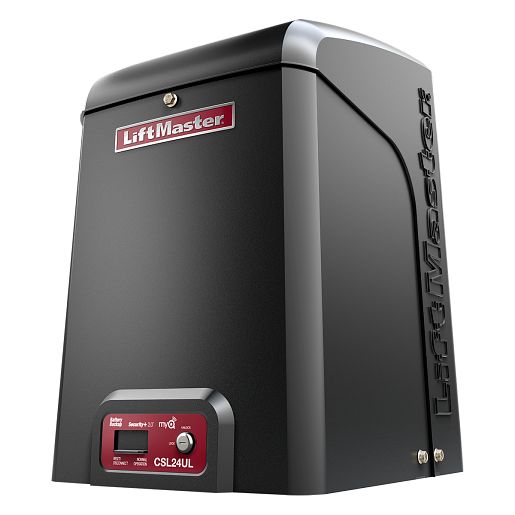

CSL24ULMC 24V DC High Traffic Commercial Slide Gate Operator

Ideal for most demanding slide gate environments.

Included Accessories

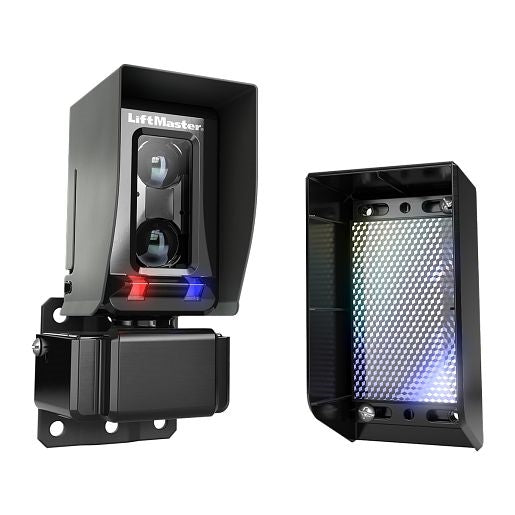

• LMRRUL Monitored Retro Reflective Photo Eye enhanced retro-reflective photo eye now with heater and wider polarized beam, engineered to stay aligned; max. Range: 50 ft.

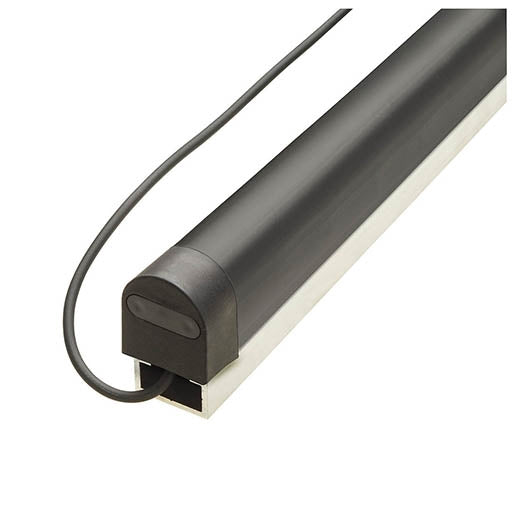

• S505AL Monitored Small Profile resistive edge pressure-sensitive edge stops and/or reverses gate when obstructed.

Reliable

• Battery Backup provides seamless access by providing standby power when the power is down.
• Commercial Gear-Driven Transmission provides unsurpassed reliability.
• Smooth start/stop operation and mid-travel reversal extend operator hardware life.
• Warranty 5 years commercial, 7 years residential.

Smart

• myQ® Technology enables you to securely control and monitor your gate operator from anywhere.
• Wireless Dual-Gate Communication synchronizes gate opening/closing and eliminates expensive driveway trenching costs.

Safe and Secure

• Safeguards access to property with an encrypted signal to offer extended range with Security+2.0.
• Quick Close and Anti-Tailgate quickly secures the property, preventing unauthorized access.
• Fire Department Compliance allows gate to auto-open upon loss of ac power or battery depletion.
• Manual Disconnect when unlocked allows gate to be opened manually.
• UL® Listed gate operators with monitored safety entrapment protection devices.

Mechanics

• 24VDC Continuous duty
• Operator Duty Rating: high-cycle, high-temperature continuous duty
• Wormgear Reduction: Commercial oil-bath gearbox provides 10:1 Wormgear reduction
• Chain: #41 Black Oxide (30ft. Supplied)

Power

• 120/230V single-phase
• Optional Kit (3PHCONV) to convert an input voltage of 208/230/460/575VAC to an output voltage of 120VAC
• Solar-Ready Ultra-Reliable System delivers power when and where you need it
• Accessory Power: 24VDC 500mA output; switched and un-switched power

Commercial Grade Design

• Chassis: constructed with 1/4 in. gold zinc-plated steel for rust prevention
• Cover: high-density, UV-resistant polycarbonate 2-piece cover for excellent heat and corrosion resistance
• UL® Usage Classification: I, II, III, and IV
• Operator Weight: 140 lbs.

Dimensions

Height: 25.07”

Width: 15.55”

Depth: 19.51”

Temperature Specifications When Cold:

Without heater: -4°F (-20°C)

With heater: (HTR) -40°F (-40°C)

Temperature Specifications When Hot:

Without heater: 140°F (60°C)

With heater: (HTR) 140°F (60°C)

Gate Speed

12” per second

Standard Features:

• Inherent Reversing Sensor detects obstructions and reverses gate when closing or stops/reverses gate when opening
• Posilock® automatically closes the gate when it is pushed from the closed limit
• Monitored Safety Inputs 3 main board, 3 expansion board
• Security+ 2.0® On-Board Radio Receiver up to 50 remote controls (unlimited with 811LM/813LM)
• Led Diagnostic Display simplifies installation and troubleshooting
• Programmable Auxiliary Relays make adding additional features easy
• Homelink® Compatible version 4.0 or higher (May require an external adapter depending on the model and year of your vehicle. Visit HomeLink.com for additional information.)
• HomeLink® Compatible
• Compatibility Bridge™ (not included) necessary for certain vehicles. Visit bridge.liftmaster.com to find out if a Bridge is needed.
• HomeLink® is a registered trademark of Gentex Corporation.
