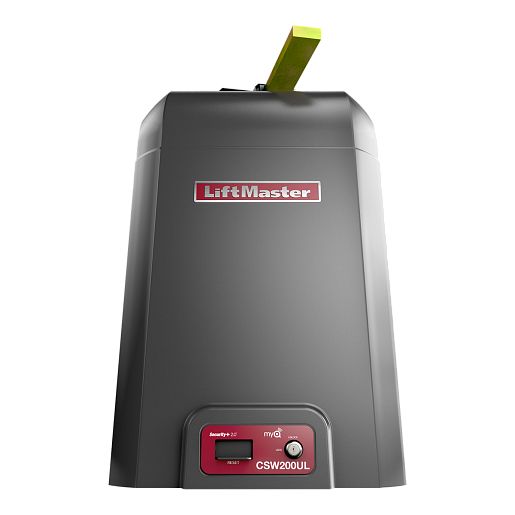

CSW200101ULMC AC High Traffic Commercial Swing Operator 1HP
Eligible for free local pickup. If this item is out of stock, we will bring it to an R&S location near you at no cost.
Eligible for shipping. Freight will apply.
CSW200101ULMC AC High Traffic Commercial Swing Operator 1HP is available for shipping.
Subject to a 5% tariff surcharge at checkout
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description
CSW200UL features continuous duty high temperature motor.
Included Accessories:
LMRRUL Monitored Retro Reflective Photo Eye enhanced retro-reflective photo eye now with heater and wider polarized beam, engineered to stay aligned; max. Range: 50 ft.
Reliable
- Legacy Elite Heavy-Duty Commercial Gear-Driven Transmission provides unsurpassed reliability.
- Surge Suppression provides industrial surge and lightning protection against strikes up to 50 feet away.
- Warranty 5 years commercial, 7 years residential.
Smart
- myQ® Technology enables you to securely control and monitor your gate operator from anywhere.
- Wireless Dual-Gate Communication synchronizes gate opening/closing and eliminates expensive driveway trenching costs.
- Synchronized Close simultaneously closes gates.
Safe and Secure
- Security+ 2.0® safeguards access to property with an encrypted signal to offer extended range with Security+2.0.
- Emergency Disconnect: simple-to-use release handle allows gate to be operated manually and maintain limit position once reengaged.
- Inherent Reversing Sensor detects obstructions and reverses gate when closing or stops/reverses the gate when opening.
- Quick Close And Anti-Tailgate quickly secure property, preventing unauthorized access.
- UL® Listed gate operators with monitored safety entrapment protection devices.
Mechanics
- Continuous-Duty Motor rated for high-cycle, high-temperature applications (available in 1/2 and 1 HP)
- Wormgear Reduction: 2 commercial oil-bath gearboxes providing 900:1 wormgear reduction
Power
- 115V Single-Phase
- Accessory Power: 24VDC 500mA output
- Optional Kit (3PHCONV) to convert an input voltage of 208/240/460/575VAC to an output voltage of 115VAC
Commercial Grade Design
- Chassis: constructed with 1/4 in. gold zinc-plated steel for rust prevention
- Cover: high-density, 2-piece UV-resistant polyethylene cover
- UL® Usage Classification: I, II, III and IV operator weight: 175 lbs.
Dimensions for CSW200101UL
Height: 27.99”
Width: 15.20”
Depth: 24.75”
Temperature Specifications
Without Heater -4°F (-20°C ) to 140°F (60°C)
With Optional Heater (HTRNB) -40°F (-40°C ) to 140°F (60°C)
Gate Travel Speed
Opens 90° in 13-15 seconds
Standard Features
- Pre-Motion Warning Alarm activates on-board alarm 3 seconds prior to gate motion
- Bi-Part Delay monitors and adjusts speed and position of each wing to ensure primary gate closes last
- Mechanical Limit System maintains accurate gate position throughout gate travel, even after using manual disconnect
- Monitored Safety Inputs 3 main board, 3 expansion board
- Security+ 2.0® Up to 50 remote controls (unlimited with 811lm/813lm).
- Led Diagnostic Display simplifies installation and troubleshooting
- Programmable Auxiliary Relays make adding additional features easy
- HomeLink® Compatible
- Compatibility Bridge™ (not included) necessary for certain vehicles. Visit bridge.liftmaster.com to find out if a Bridge is needed.
- HomeLink® is a registered trademark of Gentex Corporation.
