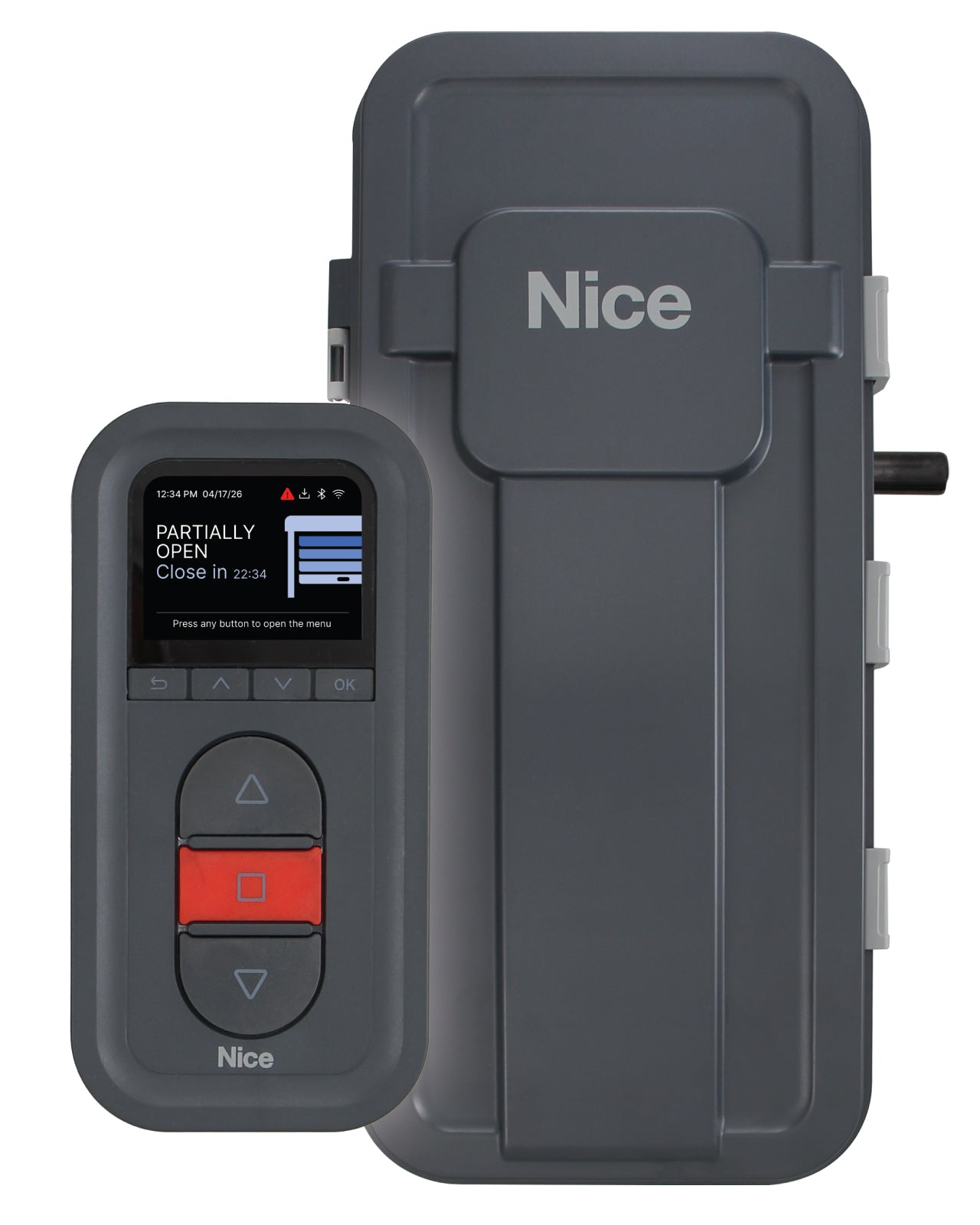

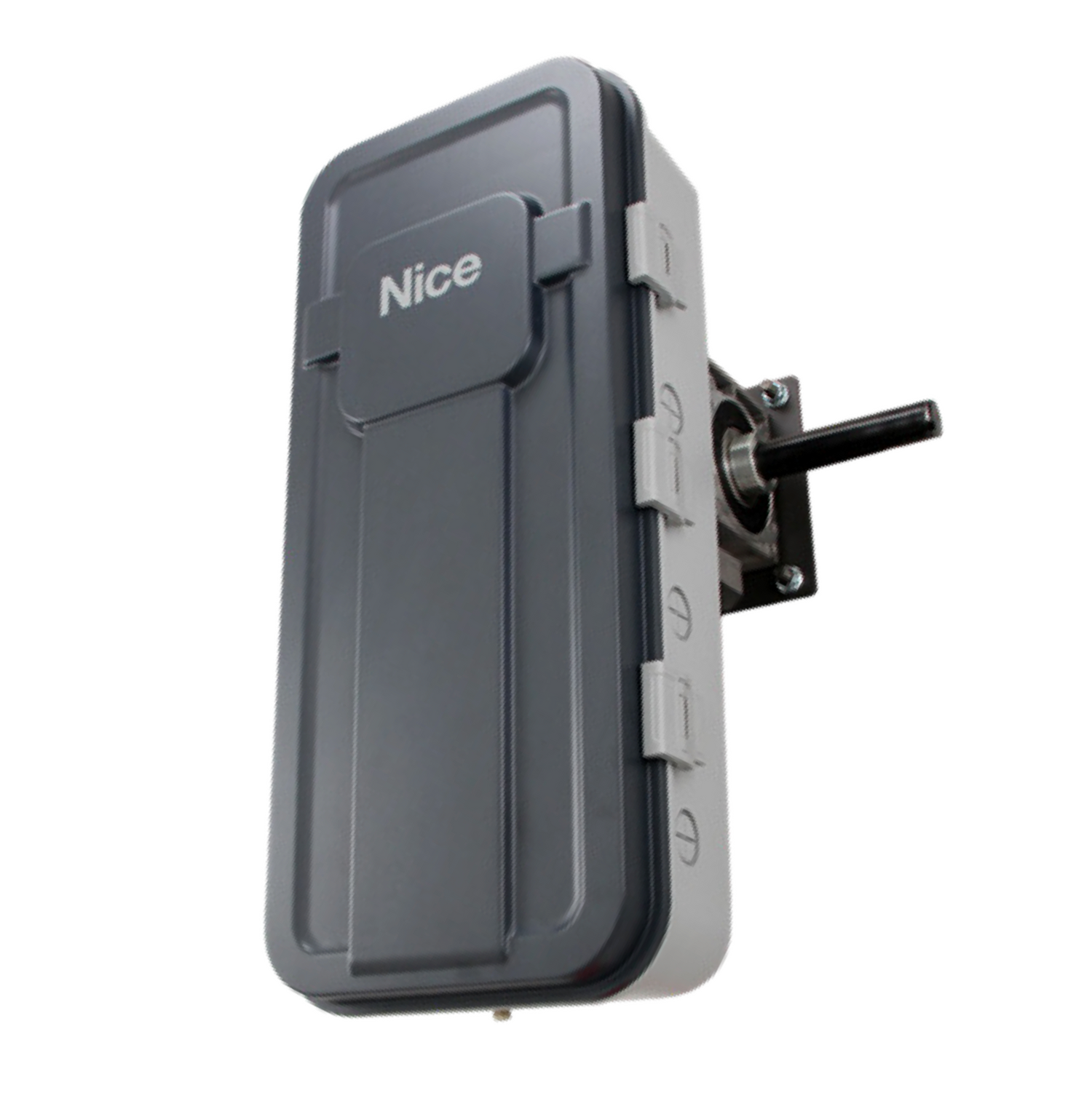

J0-052-N1-N-L-N Commercial/Industrial Continuous Duty MCX-J Jackshaft Operator, 1/2HP, 120V/240V, Single or Three-Phase
Eligible for shipping. Freight will apply.
J0-052-N1-N-L-N Commercial/Industrial Continuous Duty MCX-J Jackshaft Operator, 1/2HP, 120V/240V, Single or Three-Phase is available for shipping.
No import tariff
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description
Designed for use with commercial/industrial sectional doors with high or vertical lift track and small rolling grilles
MCX, the new standard in commercial door automation. Designed from the ground up with a versatile modular platform that delivers power, speed, and effortless set up
and control. MCX handles commercial doors with unmatched precision, ease of use, and long term reliability.
Standard Features
▪ 5 Year/100,000 Cycle Limited Warranty (whichever occurs first)
▪ 1/2 HP continuous duty industrial 90V DC motor with overload protection
▪ Rated for up to 30 cycles per hour, 150 cycles per day
▪ Auto-voltage detection: accepts 120-240V 1PH and 208-240V 3PH, no jumper selection required
▪ 480V/600V operation with field-installable dual-voltage transformer (MV00540)
▪ Built-in Bluetooth and Wi-Fi
▪ Nice G.O. app: remote open/close, real-time status, push notifications and scheduled events
▪ Over-the-air (OTA) firmware updates via Wi-Fi

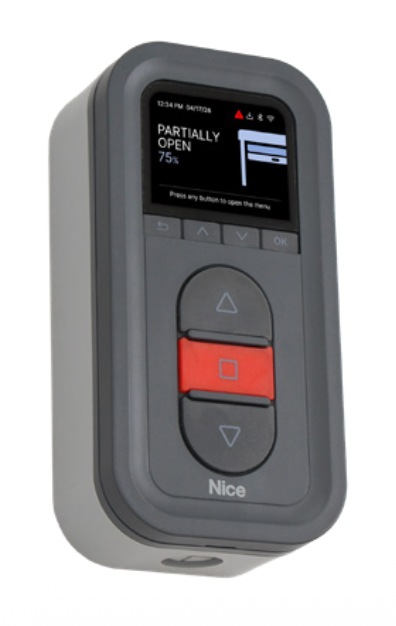

▪ NEMA 4 MCX Control Station with high-resolution display for floor-level programming
▪ Onboard encoder for precise position-based limit control
▪ Onboard fault logs and diagnostics
▪ Lever-based terminal connections for tool-free wiring
▪ Floor-level cable disconnect for manual operation
▪ Optional hand crank (MR00055)
▪ Electro-mechanical brake available as field-installable kit (MV00541)
▪ Retrofit-ready: optional wall mounting plates match legacy Pro-J/Pro-H (MM00651) or Pro-GH (MM00645) mounting footprints. Both plates are compatible with all MCX operators.
▪ N-1 photocells included
▪ For doors up to 24 ft tall (with 12- and 18-tooth sprocket configuration)
▪ Door sprocket sold separately
