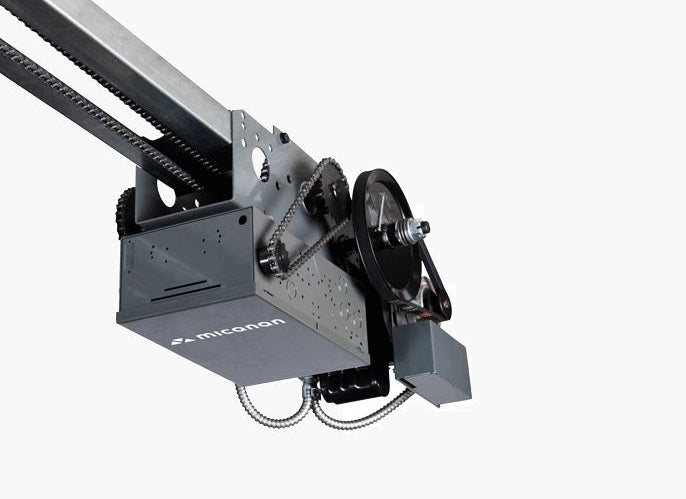

PRO-APT5011 Commercial/Industrial Continuous Duty Belt Drive Apartment Trolley Operator, 1/2HP, 115V, 1PH
by Micanan
Product Code:
PRO-APT5011
Eligible for shipping. Freight will apply.
Regular price
$1,660.35
Unit price
/
Unavailable
Shipping calculated at checkout.
PRO-APT5011 Commercial/Industrial Continuous Duty Belt Drive Apartment Trolley Operator, 1/2HP, 115V, 1PH is available for shipping.
No import tariff
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description
- 2 year Warranty
- 24V class 2 control circuit with 40VA transformer to protect against short circuit
- On board receiver with antenna
- Red & Green traffic light control function (optional)
- Low clearance design for APT applications (9.5”)
- External radio control terminal strip
- Low friction powder metal limit cam nuts with fully adjustable rotary type limit switch assembly
- Three button open-close-stop control station Nema-1
- Continuous duty industrial motor with overload protection
- Motor removable without affecting limit settings
- Heavy duty 5L V-belt
- #41 roller chain & sprockets on all internal drives
- Adjustable friction clutch
- Solenoid brake (optional PRO-APTB)
- Heavy duty trolley idler with #41B12 sprocket
- 3/4” flanged precision bearings on pulley shaft
- 1’‘ Cast iron pillow bearings on final drive shaft
- Emergency quick release disconnect carriage for manual operation
- #41 roller chain drive on trolley rail assembly
- Trolley track for doors up to 12’ standard
- Door speed 12” per second
- Baked on dark grey coat finish
- Shipping weight 85 lbs (excludes rails)
- N-1 photocells included for doors up to 24’ wide
