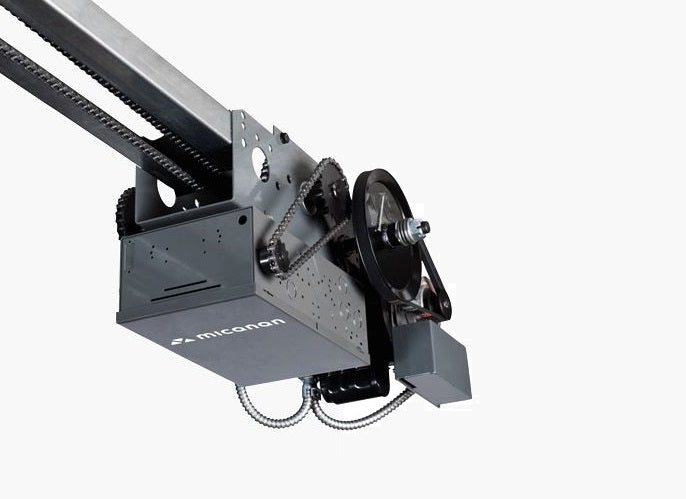

PRO-APTC5043 Commercial/Industrial Continuous Duty Belt Drive Apartment Trolley Operator, 1/2HP, 460V, 3PH

by Micanan
Product Code: PRO-APTC5043
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$4,476.93
Shipping calculated at checkout.

Heavy-duty apartment/condo trolley operator designed for standard lift overhead sectional garage doors with low clearance design.

PRO-APTC5043 Commercial/Industrial Continuous Duty Belt Drive Apartment Trolley Operator, 1/2HP, 460V, 3PH is available for shipping.

No Tariff No import tariff

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description
  • 2 year Warranty
  • 24V class 2 control circuit with 40VA transformer to protect against short circuit
  • Full feature logic board controls
  • On board receiver with antenna
  • Red & Green traffic light control function (optional)
  • Low clearance design for apartment applications (8.5”)
  • Fully assembled operator head, rails and carriage assembly for easy installation
  • Side access hinged cover for easy access to controls
  • External radio control terminal strip
  • Non-resettable cycle counter
  • Low friction powder metal limit cam nuts with fully adjustable rotary type limit switch assembly
  • Three button open-close-stop control station Nema-1
  • Continuous duty industrial instant reverse 3-wire 1/2 HP motor with overload protection
  • Motor removable without affecting limit settings
  • 40:1 industrial duty gearbox reduction
  • 3/4” flanged precision bearings on idler shaft
  • Emergency dual-handle disconnect and reconnect trolley carriage for manual operation
  • #41 roller chain drive on trolley rail assembly
  • Trolley track for doors up to 8’, 10’, 12’ and 14’ high
  • Heavy duty C-channel track, UHMW trolley rollers and rubber dampeners for smooth, quiet operation
  • Door speed 7” per second
  • N-4 compatible monitored photocells included
  • Baked on dark grey coat finish
  • Shipping weight 250 lbs (includes standard rails for 8’ door)
  • Optional 3/4 HP motor and variable frequency drive for high speed and extreme high cycle applications
