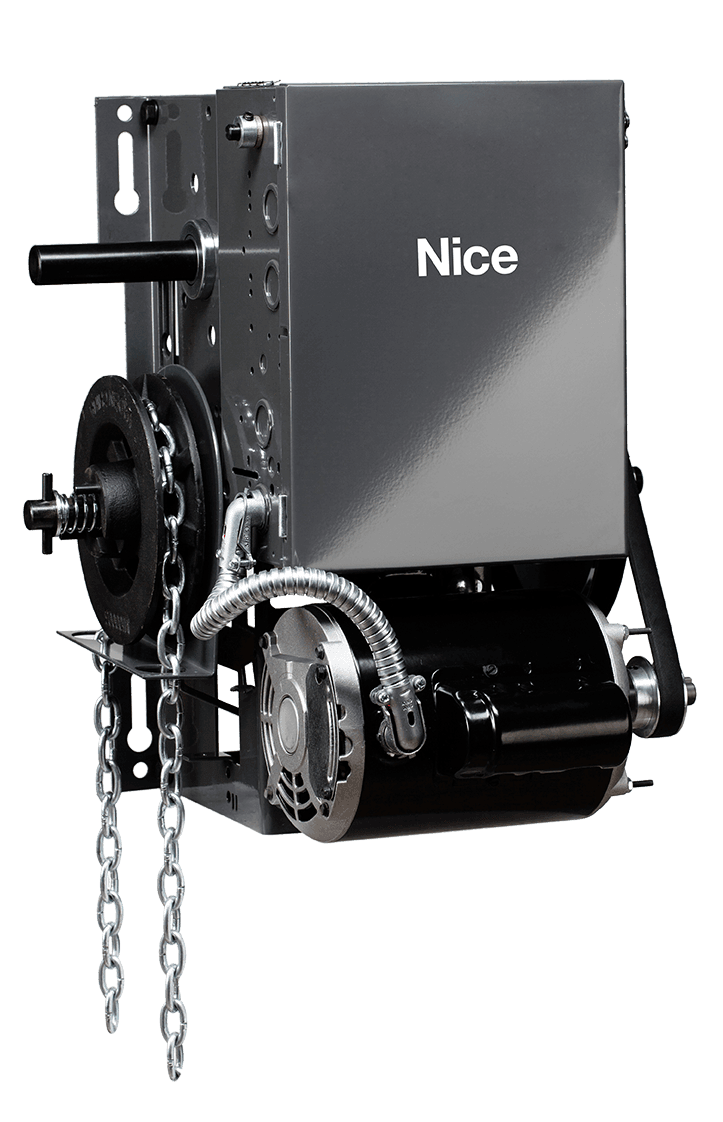

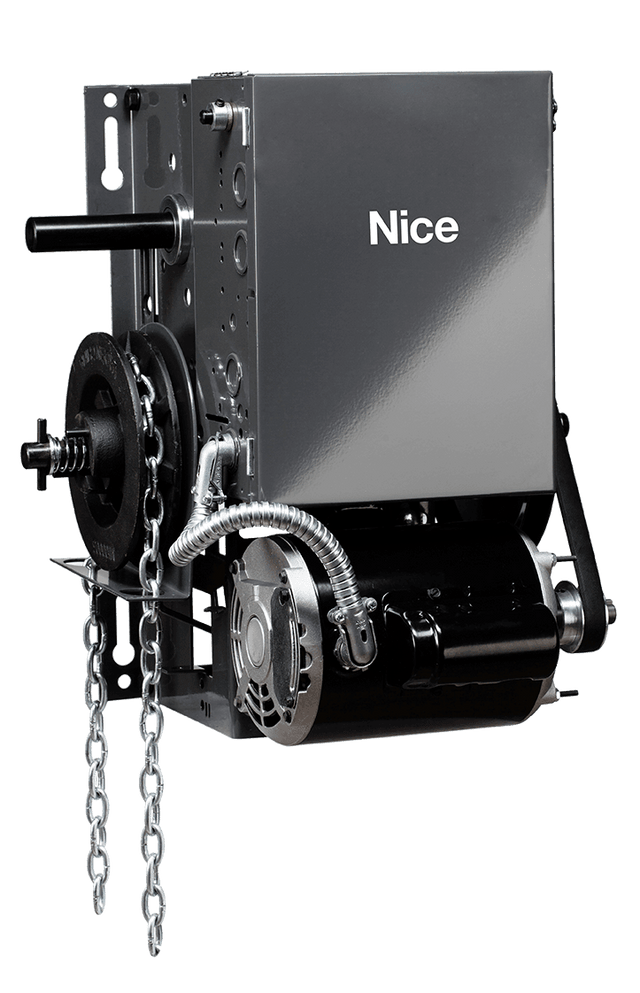

PRO-EHJ7543-R Industrial Duty Belt Drive Jackshaft Operator, 3/4HP, 460V, 3PH, Right Hand
by Micanan
Product Code:
PRO-EHJ7543-R
Eligible for shipping. Freight will apply.
Regular price
$1,751.63
Unit price
/
Unavailable
Shipping calculated at checkout.
PRO-EHJ7543-R Industrial Duty Belt Drive Jackshaft Operator, 3/4HP, 460V, 3PH, Right Hand is available for shipping.
No import tariff
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description
- 2 year Warranty
- 24V class 2 control circuit with 40VA transformer to protect against short circuit
- On board receiver with antenna
- External radio control terminal strip
- Low friction powder metal limit cam nuts with fully adjustable rotary type limit switch assembly
- Three button open-close-stop control station Nema-1
- Continuous duty industrial motor with overload protection
- Motor removable without affecting limit settings
- Heavy duty 5L V-belt
- #41 roller chain & sprockets on all internal drives
- Adjustable friction clutch
- Mechanical brake system
- Solenoid brake (optional PRO-EHJB) recommended for large doors/ grilles
- #50 roller chain and sprockets on final drive
- 3/4” permanently lubricated & sealed precision ball bearings on pulley shaft
- 1” permanently lubricated & sealed ball bearings on final drive shaft
- Emergency chain hoist with electrical cut-out switch for manual operation
- Internal load sensing feature that will detect a locked or jammed door and stop unit from operation
- Provides for egress to allow for opening of a grill by manual operation or spring tension (optional egress device)
- Left or right hand mounting (must specify at time of order)
- Baked on dark grey coat finish
- Shipping weight 95 lbs
- N-1 photocells included for doors up to 24’ wide
