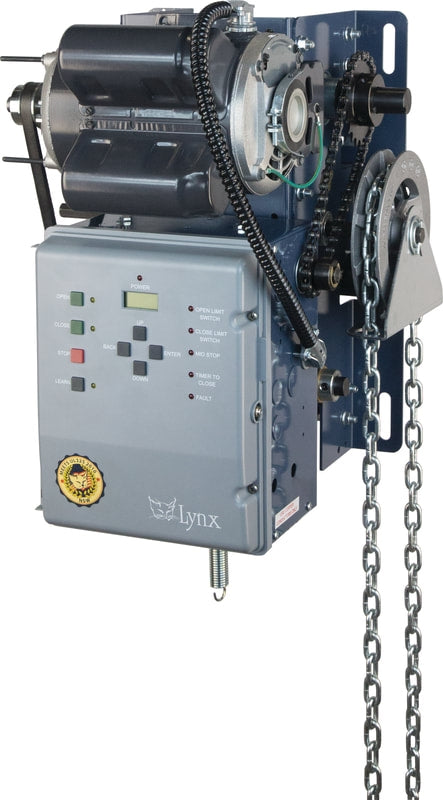

CDJ1011 Continuous Duty Jackshaft Operator 1HP, 115V, Single Phase

by Napoleon
Product Code: CDJ1011
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$1,578.70
Shipping calculated at checkout.

The CDJ Series delivers reliable, continuous-duty operation engineered specifically for high lift and vertical lift sectional doors, rolling doors, and rolling grilles. These versatile jackshaft operators combine robust mechanical features with advanced control capabilities for demanding commercial and industrial applications.

CDJ1011 Continuous Duty Jackshaft Operator 1HP, 115V, Single Phase is available for shipping.

No Tariff No import tariff

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description
  • 1/2 HP, 3/4 HP, and 1 HP - 115V/230V-1 Phase Motor
  • 208/230/460/575V-3 Phase Motor
  • 3 Button station (NEMA 1)
  • 1650 RPM, high starting torque motor with overload protection
  • Inherent Mechanical Brake (I.M.B)
  • LX 100 BOARD Standard Features: B2 Mode, C2 Mode, D1 Mode, E2 Mode, T Mode, TS Mode
  • On board, Open, Close, & Stop for ease of setting limits
  • Photo-eyes included
  • Pre-wired to accept sensing devices
  • 24 Volt accessory power
  • On board (372 MHz) receiver capable of programming up to 20 transmitters
  • External receiver connection
  • NEMA 1 Electrical enclosure
  • Adjustable friction clutch
  • Maximum Output Revolutions - 45
  • Primary Drive: Heavy Duty 4L V-Belt
  • Secondary: #41 CHAIN / SPROCKETS
  • Output: #50 CHAIN / SPROCKETS
  • 32 RPM output shaft speed
  • Door speed determined by the door system installed
  • Standard sprockets:
  • Sectional:  50B12 x 1” bore to 50B18 x 1” bore OR 50B18 x 1 1/4” bore
  • Steel Rolling:  50B12 x 1” bore to 50B24 x 1 1/4” bore
  • Warranty: 2 years on parts and motor
