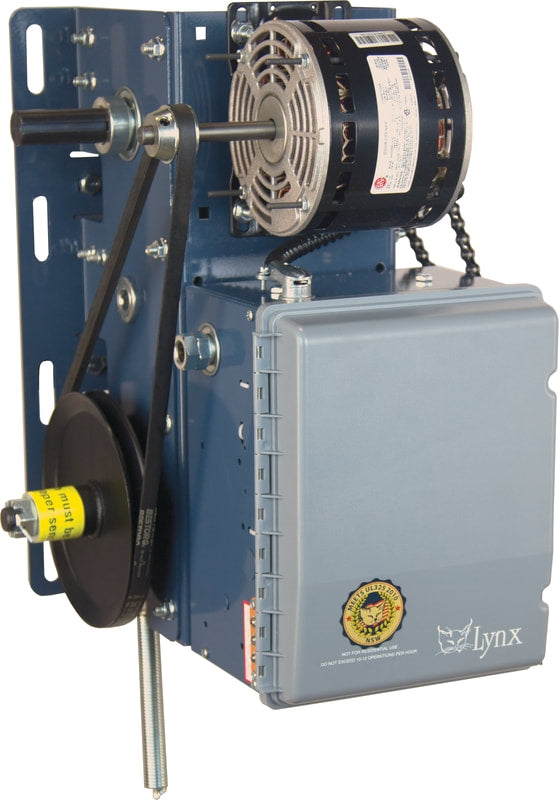

MDJ211 Medium Duty Jackshaft Operator 1/2HP, 115V, Single Phase
by Napoleon
Product Code:
MDJ211
Eligible for shipping. Freight will apply.
Regular price
$981.90
Unit price
/
Unavailable
Shipping calculated at checkout.
MDJ211 Medium Duty Jackshaft Operator 1/2HP, 115V, Single Phase is available for shipping.
No import tariff
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description
- 1/2HP-115V-1PH Motor
- 3 Button station (NEMA 1)
- 1500 RPM, high starting torque motor with overload
- protection
- Inherent Mechanical Brake (I.M.B)
- LX 900 BOARD Standard Features
- B2 Mode, C2 Mode, TTC Mode
- On board, Open, Close, & Stop for ease of setting limits
- Photo-eyes included
- Pre-wired to accept sensing devices
- 24 Volt accessory power
- On board (372 MHz) receiver capable of programming up to 20 transmitters
- External receiver connection
- NEMA 1 Electrical enclosure
- Adjustable friction clutch
- Maximum output shaft revolutions - 21
- Primary Drive: Heavy Duty 4L V-Belt
- Secondary: #41 CHAIN / SPROCKETS
- Output: #41 CHAIN / SPROCKETS
- 27 RPM output shaft speed
- Door speed determined by the door system installed
- Standard sprockets:
- Sectional: 41B14 x 1” bore to 41B18 x 1” bore
- Steel Rolling: 41B14 x 1” bore to 41B24 x 1 1/4” bore
- Warranty
- 2 years on parts and motor
