MCS302210 Safety Edge MultiCode Compatible Transmitter Linear Pro 302210

by Linear
Product Code: MCS302210
Pickup Eligible for free local pickup. If this item is out of stock, we will bring it to an R&S location near you at no cost.
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$138.70
Shipping calculated at checkout.

For adding obstacle sensing for motorized gates or barrier arms.
No Tariff No import tariff

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description

Single channel transmitter that connects to a safety edge sensor for obstacle detection, 9 volt battery powered, 1024 selectable codes, 300MHz

The Model 302210 Gate Safety Edge Transmitter is for adding obstacle sensing for motorized gates or barrier arms. Using a safety edge transmitter is more economical and discrete than the traditional coiled cord connection method.

The transmitter mounts directly on the gate or barrier arm and wires to a standard exterior safety edge sensor (a Miller gate edge sensor is recommended). If an obstacle is encountered, the sensor will present a closed circuit across the connecting wires and the 302210 will transmit a message to the receiver signaling entrapment to the gate operator. The operator then stops or reverses the movement of the gate.

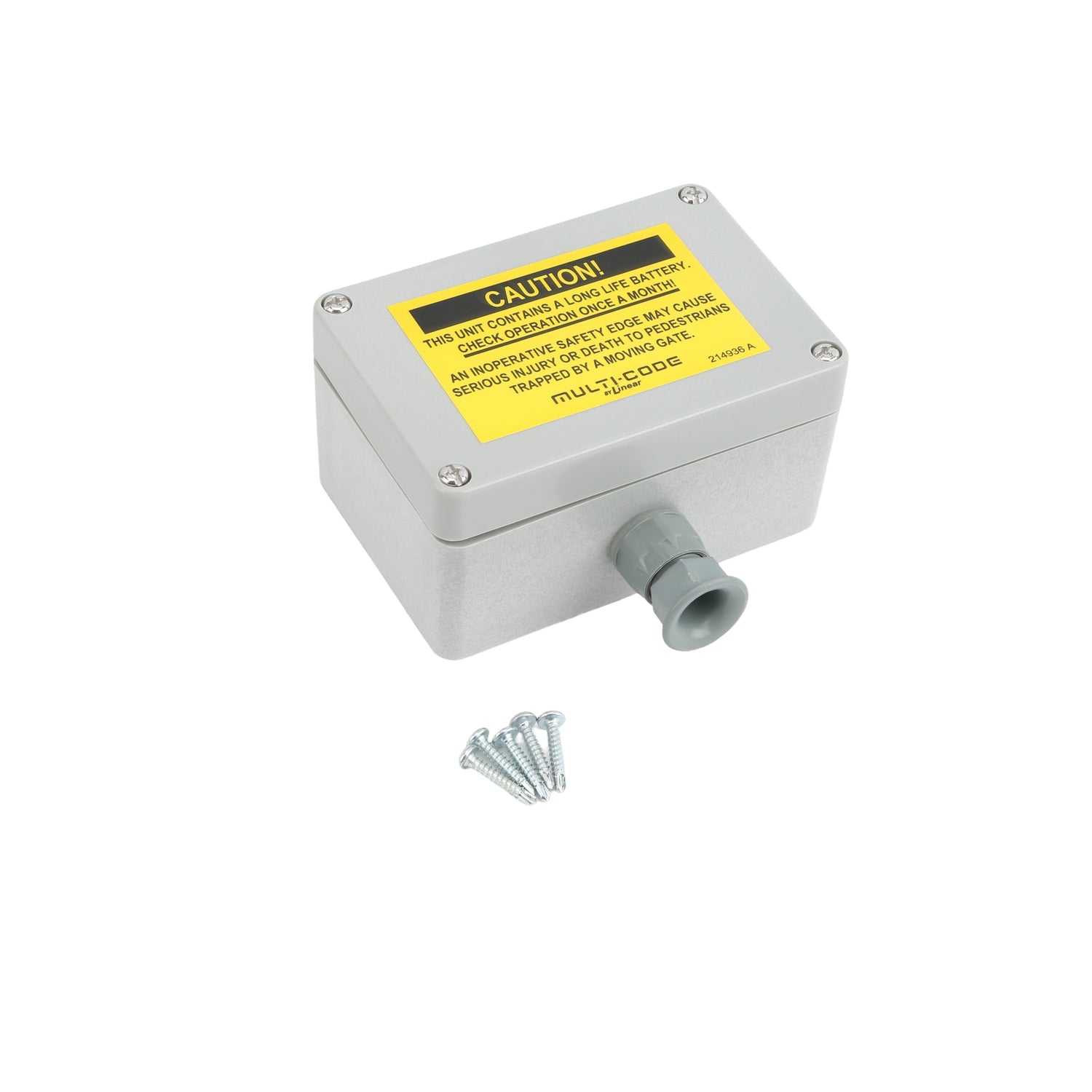

The 302210 transmitter is supplied in a weather-resistant, fiberglass box. Its circuit board is coated to prevent moisture damage. The enclosure mounts to the gate, door, or barrier arm through sealed interior mounting screws.

The Model 302210 is compatible with 300 MHz Multi-Code receivers and Model 109950 and 302850 receivers.

Features

  • Compatible with 300 MHz Multi-Code receivers
  • Safety edge transmitter
  • Activates receiver for stop or reverse entrapment
  • No cables or coiled wires
  • Mounting hardware (4 screws) supplied
  • Power: 9-volt battery
  • Codes: 1,024 (set by dip switches)
  • RF frequency: 300 MHz
  • Dimensions: 4.28" W x 2.875" H x 2.25" D
