DNR00105 - MGR-2 - 2-Channel 12-24 V AD/DC MegaCode Gate Receiver (MGR-2)
Eligible for free local pickup. If this item is out of stock, we will bring it to an R&S location near you at no cost.
Eligible for shipping. Freight will apply.
DNR00105 - MGR-2 - 2-Channel 12-24 V AD/DC MegaCode Gate Receiver (MGR-2) is available for shipping.
No import tariff
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description

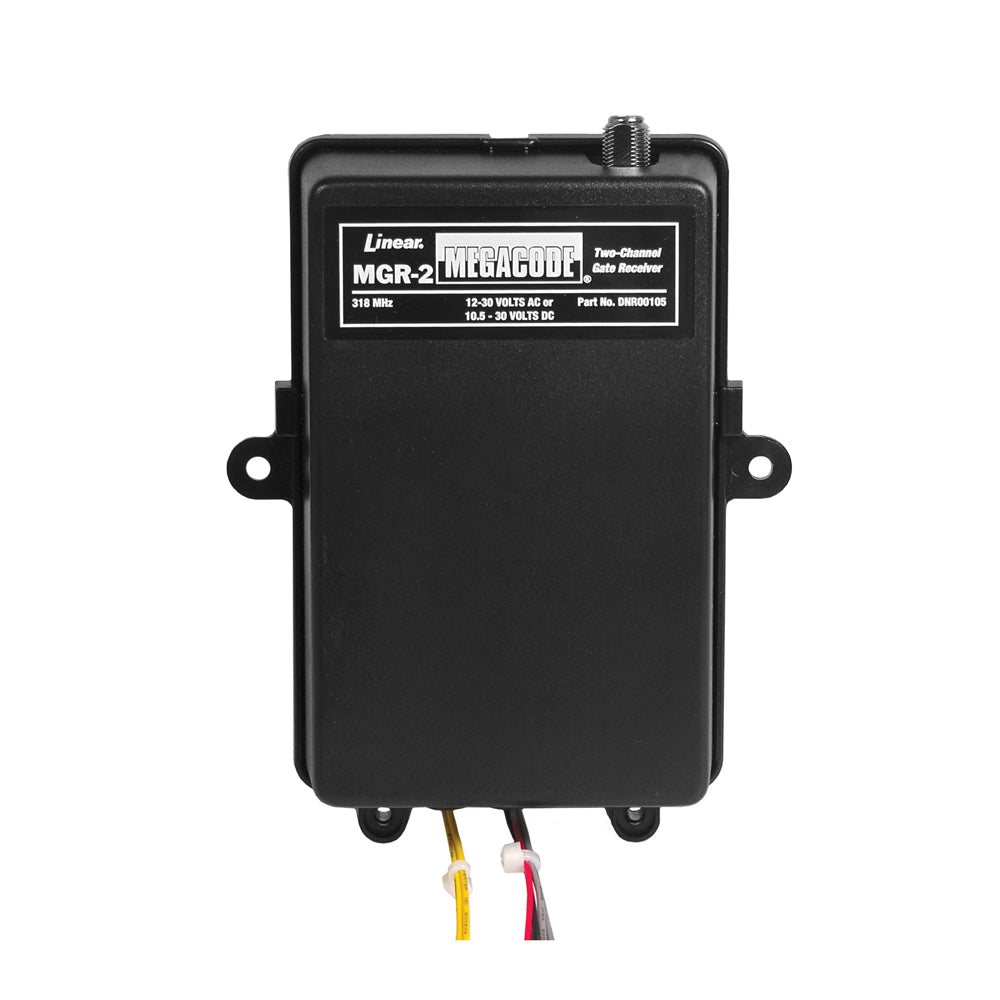

The MGR-2 is a 2-Channel Gate Receiver designed for use with automatic gate operators or systems where a remote antenna is needed. The MGR-2 can operate two gates, one gate and an obstacle sensor, or channel one can open the gate and channel two can close the gate. The receiver uses the MegaCode radio format with over a million possible code combinations. Up to 40 transmitters can be programmed into the receiver.
- Two Form ”A” (normally open) relays rated at 30 Volts AC/DC up to 5 Amps
- Supplied with whip antenna, three feet of coaxial cable, and bulkhead connector
- Memory: storage for up to 40 MegaCode transmitters
- Power: 12 – 30 VAC or 10.5 – 30 VDC
- Codes: 1,000,000+ (MegaCode format)
- RF frequency: 318 MHz
- Dimensions: 3.625″ W x 5.25″ H x 1.5″ D
