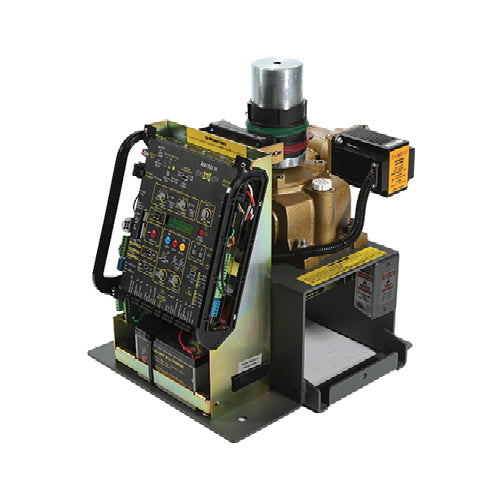

MAX MEGATRON 1400 HP PRO High Traffic Brushless 24V Swing Gate Operator
Eligible for free local pickup. If this item is out of stock, we will bring it to an R&S location near you at no cost.
Eligible for shipping. Freight will apply.
MAX MEGATRON 1400 HP PRO High Traffic Brushless 24V Swing Gate Operator is available for shipping.
Subject to a 7% tariff surcharge at checkout
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description
Motor Control Technology
Maximum Controls’ brushless dc motor control enables precision movement that traditional brushed motors can not replicate. For example, no overcoasting. This ability is crucial in bi-parting slide gates on the same track, as well as catch posts or columns that can’t be avoided.
Another advantage of precise gate control is the ability to stop instantly. In an emergency situation, this is critical. When a safety edge is struck, stopping on a dime to reduce risk of injury or damage to equipment is imperative. Our motor control technology is absolutely the most advanced on the market.
Power Supply
The Megatron 1400 HP PRO’s power supply utilizes a 15 Amp torroid and power management board. The maximum Amp draw from the Megatron is 3.5 – 4.5 Amps depending on gate weight. The power supply is efficiently designed with ample headroom and is not overstressed under any extreme load or temperature conditions. The power supply input accepts 115V or 230V AC via selection switch. During gate operation the battery is not utilized while AC is present, preserving the life of the battery.
Input AC Power/Amps:
Switchable: 115VAC / 6 Amp, Single Phase or 230AVC / 2 Amp, Single Phase
Magic Box

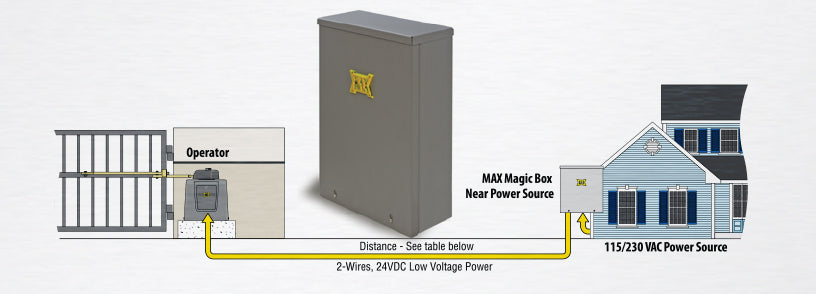

The Megatron 1400 HP PRO MAGIC BOX feature can save thousands of dollars in trenching and costly permit fees. Unforeseen complications like rock formations or utility lines that have to be trenched around can be avoided by using the Magic Box. This feature is a power management system that does not rely on battery power and as a result the battery life is not compromised.
Because the Magic Box does not rely on the batteries as a booster, the gate remains operational regardless of whether the batteries are malfunctioning or the batteries are removed. This technology is unique only to Maximum Controls.
Black Box, Loop Management and Security
One of the primary goals of the Megatron 1400 HP PRO is to provide the most secure, easiest to maintain gate operator with higher gate speed motion and advanced loop management.

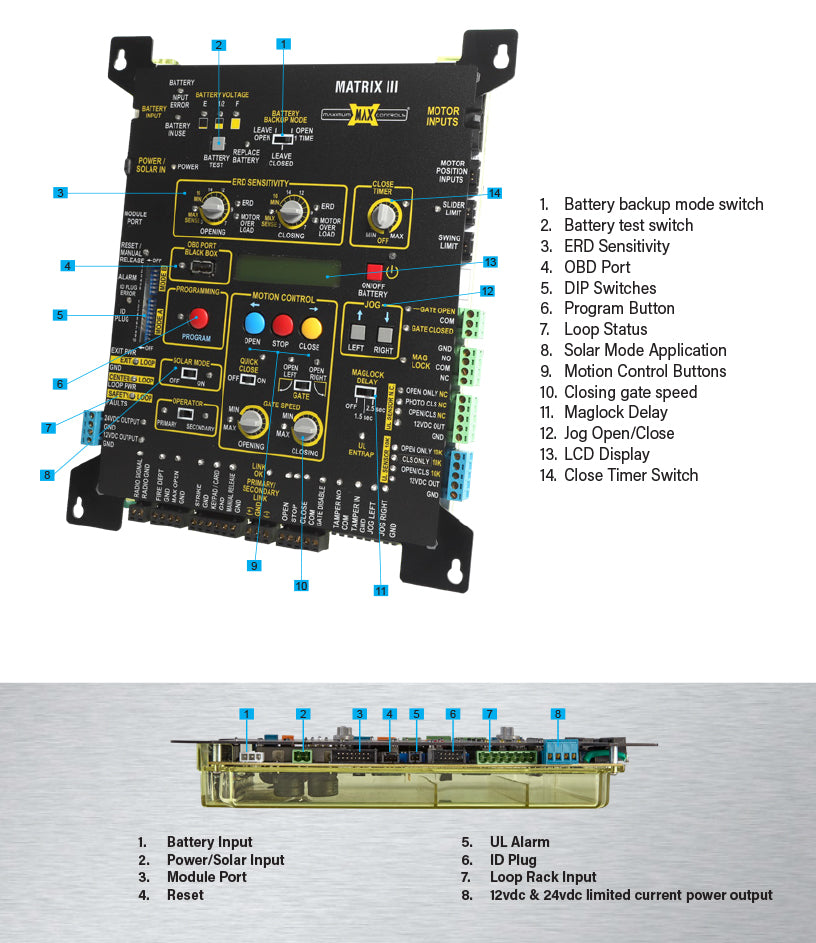

The Megatron 1400 HP PRO uses non-volatile memory to continuously log performance characteristics and input/output events. A service technician can access this data via USB port to download the event history, quickly diagnosing complex or intermittent problems that traditionally have been very difficult to isolate and repair. By plugging a USB thumb drive into the USB port, all the Megatron’s diagnostic history will download, working as a “Black Box” to diagnose what occurred. The Megatron’s event history is stored as a .TXT document which can be emailed to the factory if necessary, for on-site diagnosis.
The .TXT file is a log of the most recent 1000 events reported by each module to the central logger.
The Megatron 1400 HP PRO’s standard intuitive loop management system, when enabled, will discourage tailgating, increasing security for residential and high traffic installations. When the anti-tailgate switch is activated, any car tailgating a legitimate access will be forced to stop by a rapidly closing gate, forcing the tailgater to back up and thereby triggering the gate to close and deny unauthorized access.
When disabled, loop management will allow multi- access, with the gate opening on each successive trigger in the traditional loop management manner.
Anti-Vandalism/Burglar Alarm
As a security device, the Megatron 1400 HP PRO supplies a gate tamper relay output that triggers whenever a gate has encountered an unauthorized movement. This can be configured to activate an alarm system or camera. The Megatron 1400 HP PRO also has a gate disable feature which can disable operator open commands during a vacation or overnight for commercial applications.
Lightening Protection
The Megatron 1400 HP PRO offers the most robust lightning protection available in the industry. The Megatron 1400 HP PRO protects all peripheral inputs, loop inputs, power inputs, relay outputs, and all communication lines (over 44 channels of protection) in 1/1,000,000,000 of a second. With special emphasis on power supply protection, the Megatron 1400 HP PRO is guaranteed to withstand any lighting hit more than 50 feet away. Truly protected like no other operator in the world.
