MT21-NM 2-Wire Non-Monitored Sensing Edge (for Rolling Steel and Rolling Shutter Door Applications, 2”W x 1”H (Black, Gray or Yellow)
Eligible for shipping. Freight will apply.
MT21-NM 2-Wire Non-Monitored Sensing Edge (for Rolling Steel and Rolling Shutter Door Applications, 2”W x 1”H (Black, Gray or Yellow) is available for shipping.
Subject to a 2% tariff surcharge at checkout
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description
Model MT21 is designed for use on rolling steel fire doors with double L-angle bottom bars and are custom manufactured to required length. In case of fire the MT-21 does not release harmful fumes.

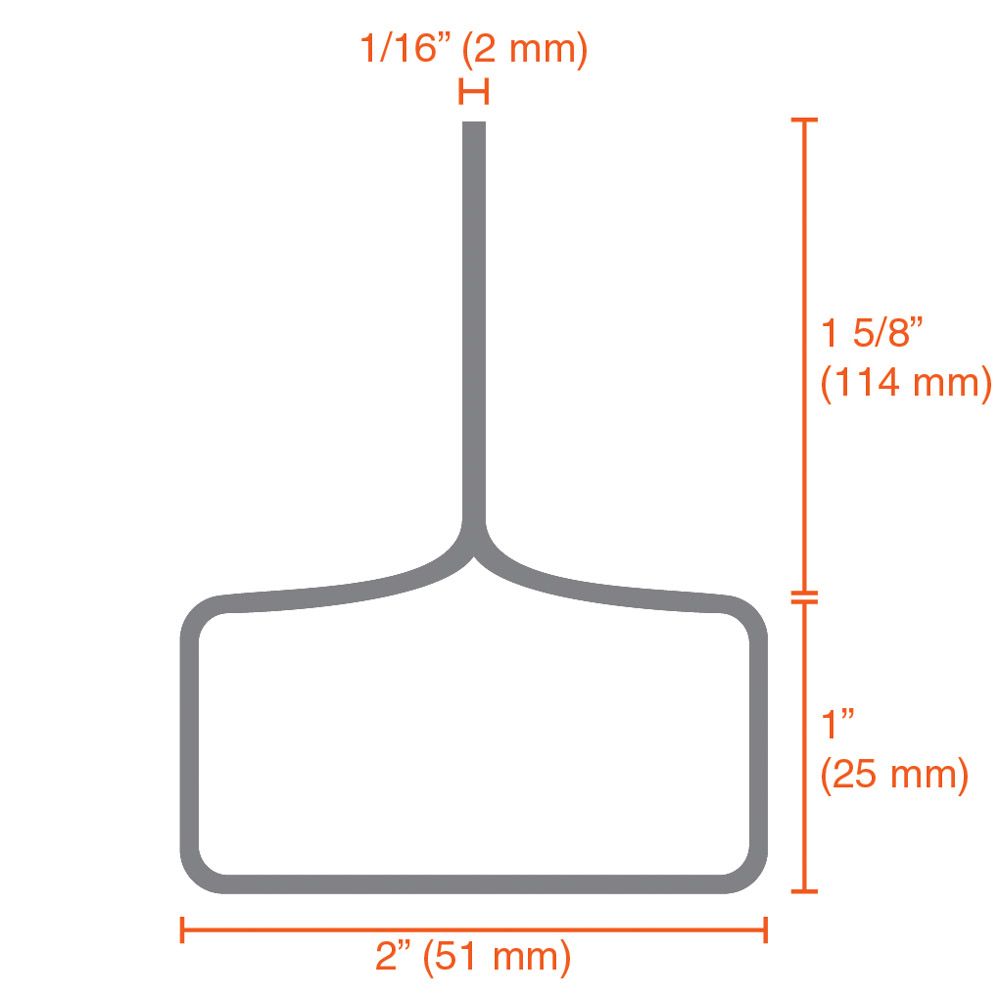

The MT sensing edge product line consists of three standard models: MT21 (2 in W x 1 in H), MT22 (2 in W x 2 in H), and MT33 (3 in W x 3 in H). When touched lightly, the sensing edge will send an immediate signal to operator controls to stop and/or reverse door operation. The MT edge switch is covered in a durable vinyl jacket. The top tab inserts between the double-L angle bottoms bars on a rolling door. These sensing edges are flexible and can conform to irregularities in the floor.
Applications
- Rolling steel fire doors
Features
- Optimum size for 2+ inch thick surfaces
- Custom manufactured to user specifications for color, length, and outlet location
- Three standard models: MT21 (2”W x 1”H), MT22 (2”W x 2”H), MT33 (3”W x 3”H)
- 5-6 inch end flaps create a complete seal and can be trimmed for custom fit

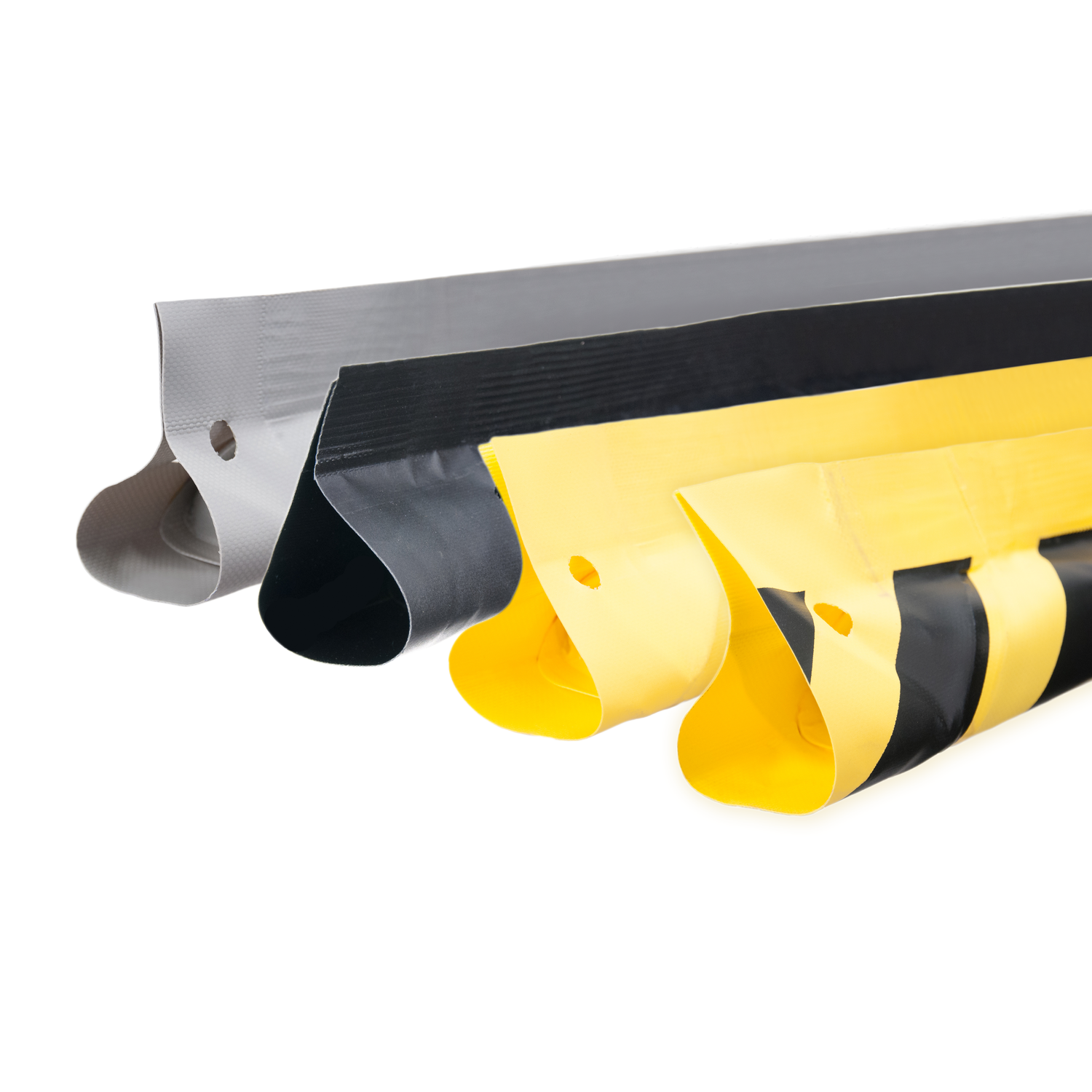

- Extended color options including yellow chemical resistant XR5 jacket
- Flexible and will conform to floor irregularities
- Sealed assembly impervious to dust and debris
- Patented Alumaglas for superior performance (electric option)
- UL 325 Recognized Component
- 1-year warranty
- Made in USA
