MBSAW-500-AW Air-Wave Sensing Edge (non-monitored) Black
Eligible for shipping. Freight will apply.
MBSAW-500-AW Air-Wave Sensing Edge (non-monitored) Black is available for shipping.
Subject to a 8% tariff surcharge at checkout
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description

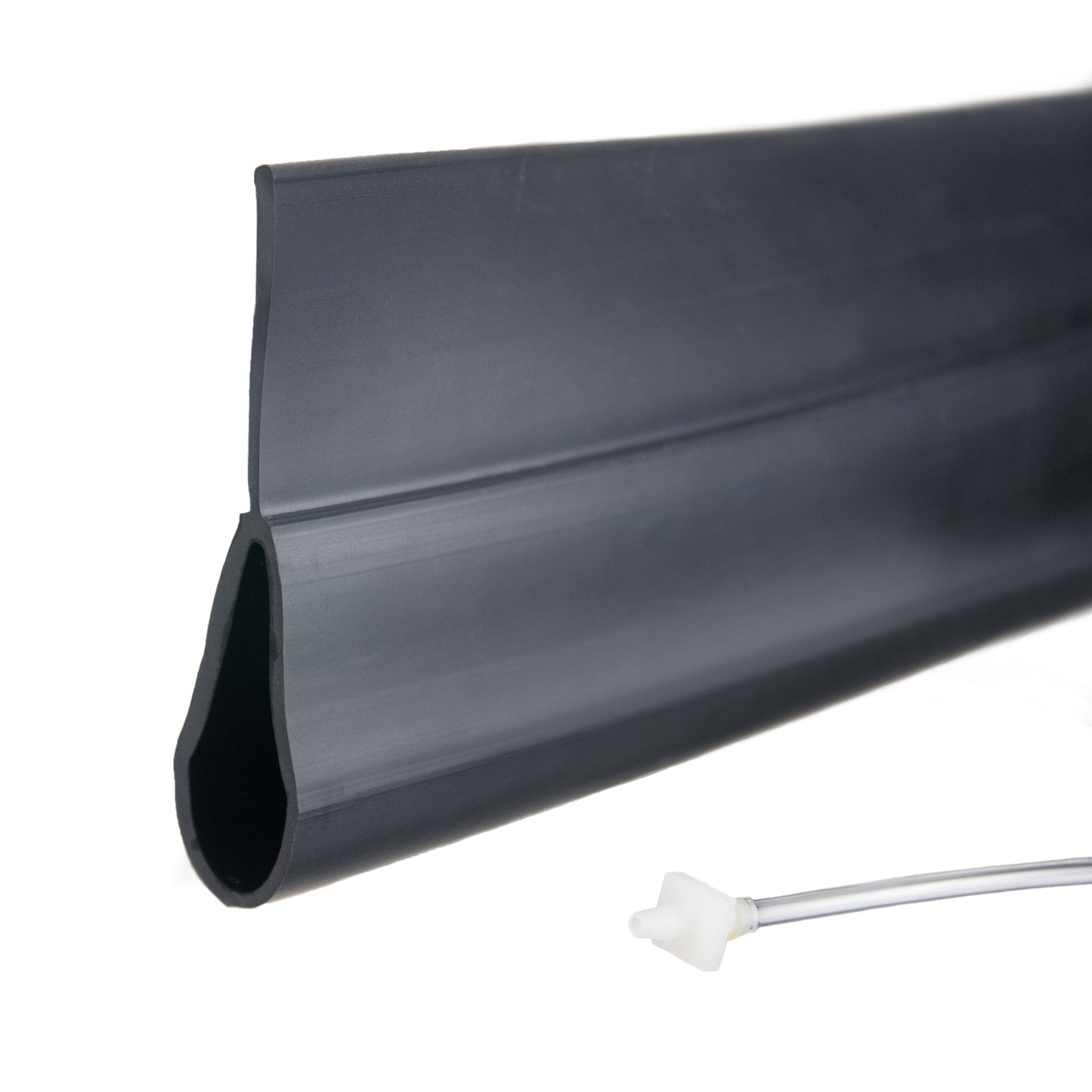

MBSAW-500 is an introductory non-monitored Air-Wave sensing edge. When the sensing edge comes into contact with an obstruction, an air pressure wave is pushed through the internal hose to an external Air-Wave switch (sold separately). The diaphramgm inside the switch then activates an electrical contact, which sends a signal to operator controls to stop and/or reverse door operation. The top tab inserts between the double-L angle bottoms bars on a rolling door.
Mounting: Center tab installs between the bottom bars.
Applications
Rolling steel doors
Features
- Cost-effective safeguarding solution
- Non-monitored Air-Wave technology
- Can be trimmed in the field for custom fit
- 1-year warranty
- Made in USA
