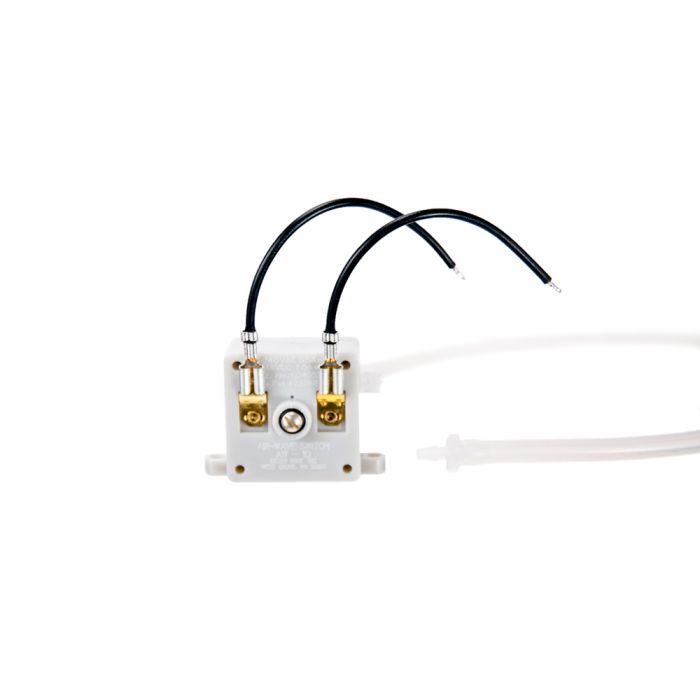

AW10 Air-Wave Switch, No Enclosure
Eligible for shipping. Freight will apply.
AW10 Air-Wave Switch, No Enclosure is available for shipping.
Subject to a 8% tariff surcharge at checkout
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description
The Miller Edge Air-Wave switch was developed for applications such as extremely wet and/or refrigerated areas subject to condensation, cold climates, high vibration environments, and other areas where a monitored electric sensing edge is not ideal.
The Air-Wave switch activates when a wave of air is compressed through an air hose and triggers the internal diaphragm. This converts the pressure wave into an electrical contact, which signals the commercial door operator to stop and/or reverse motion. Air-Wave switches have adjustable sensitivity and are available in three models to suit each unique application.
Air-Wave switches are compatible with Air-Wave configured sensing edges and treadles, and are non-monitored.
Applications
- Air-Wave configured sensing edges on motorized doors
- Air-Wave configured treadles
Features
- Three models:
- AW10: Air-Wave switch only
- AW12A: AW10 switch in NEMA 4 polycarbonate enclosure
- AW14: AW10 switch in ABS enclosure
- Compatible with Miller Edge Air-Wave configured
- sensing edges up to 60 ft.
- Sensitivity adjustment compensates for
- temperature highs and lows
- Easy to install
- Non-monitored
- 2-year warranty
