CPT215-ENDKIT-T3 End Kit: Diode Capacitor Monitored & Non-Monitored

CPT215 is a UL 325 recognized sensing edge designed for on-site configuration and assembly. Upon contact with an obstruction, the edge signals operator controls to immediately stop and/or reverse motion. Easily cut the CPT215 extrusion to the required length at the job site, ensuring a quick turnaround with no lead time. The advanced design of the CPT215 cap, cage, and plug provides a sealed assembly, providing a no-glue solution. This feature not only provides flexibility for field length adjustment but also allows users to choose the appropriate termination for monitoring compatibility with the operator. Experience the efficiency and adaptability of CPT215 for seamless integration into your safety systems.

Applications

• Motorized doors
• Automated gates
• Machinery pinch points
• Scissor lifts
• Automated storage/retrieval

Features

• Easy to install

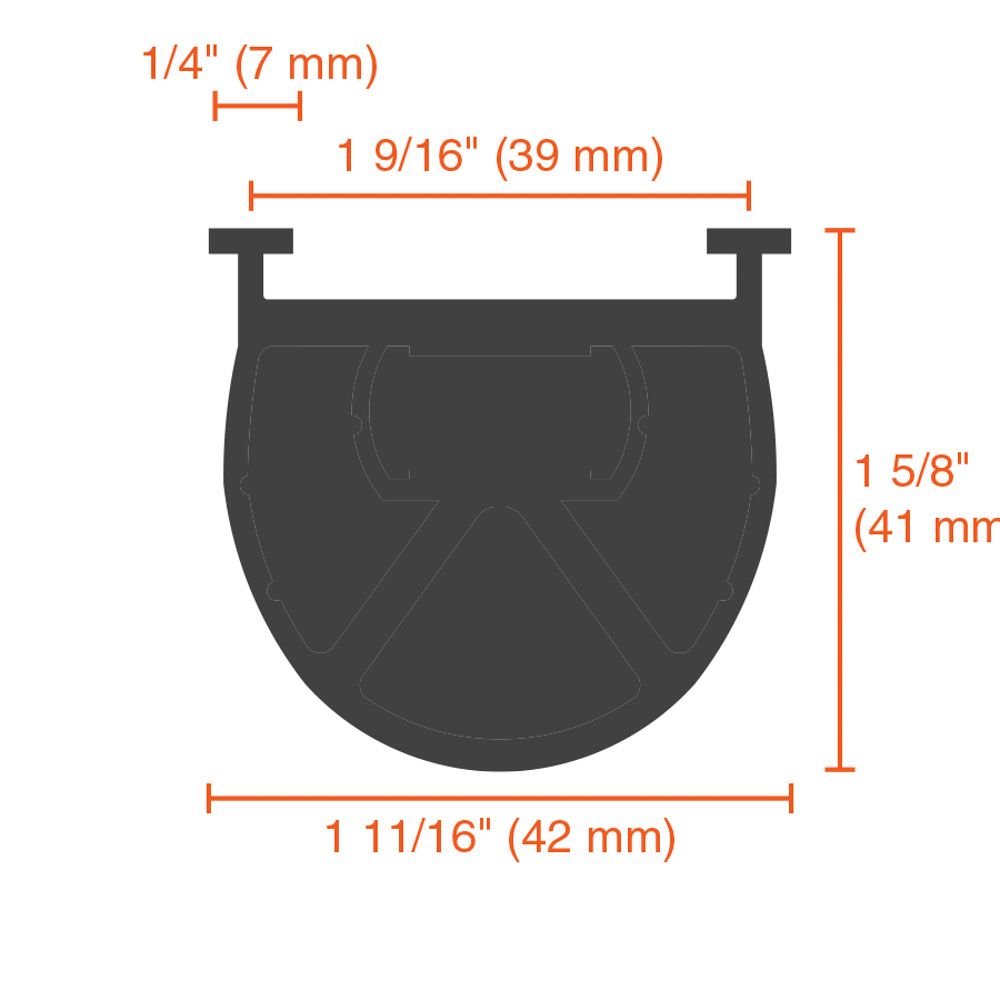

• Optimum size for 2-inch thick surfaces
• Enhanced adhesive-free end cap design streamlines field configuration, installation, and adjustments
• Bulk extrusion and end kits available for on-site assembly, eliminating lead times
• Versatile monitoring configurations
• Sealed assembly impervious to dust and debris
• Mounting channel options offer versatility
• Advanced conductive polymer technology for efficient and reliable performance
• Mounts vertically or horizontally
• UL 325 Recognized Component
• CE certificate of compliance
• 2-year warranty
• Made in USA of U.S. and imported parts

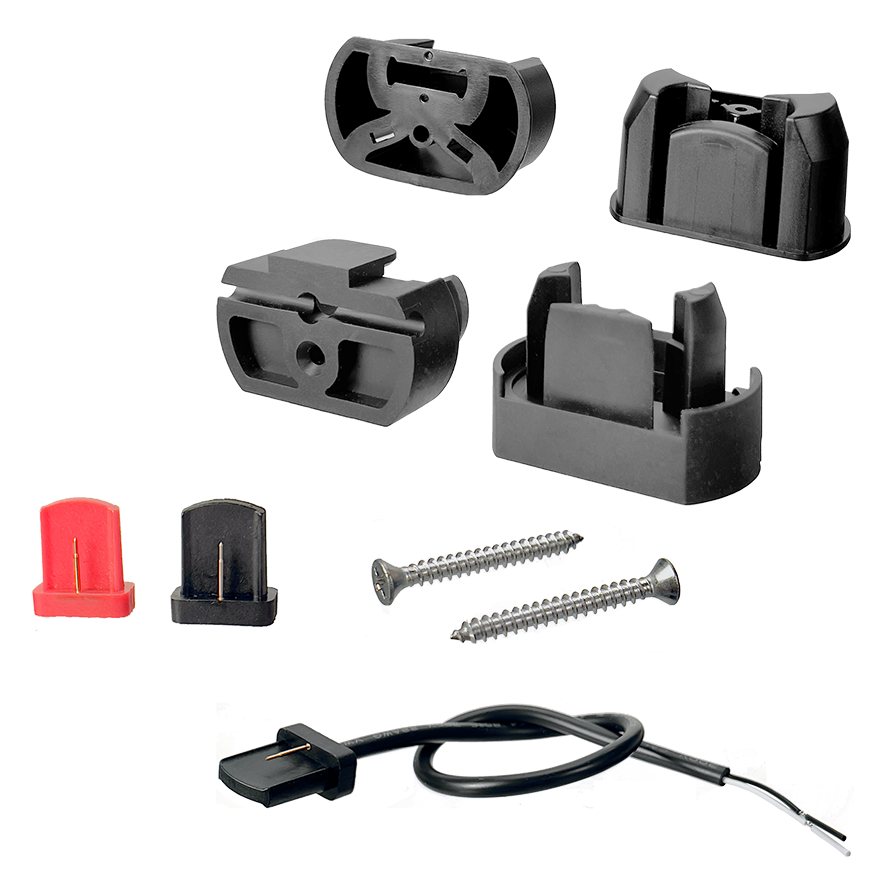

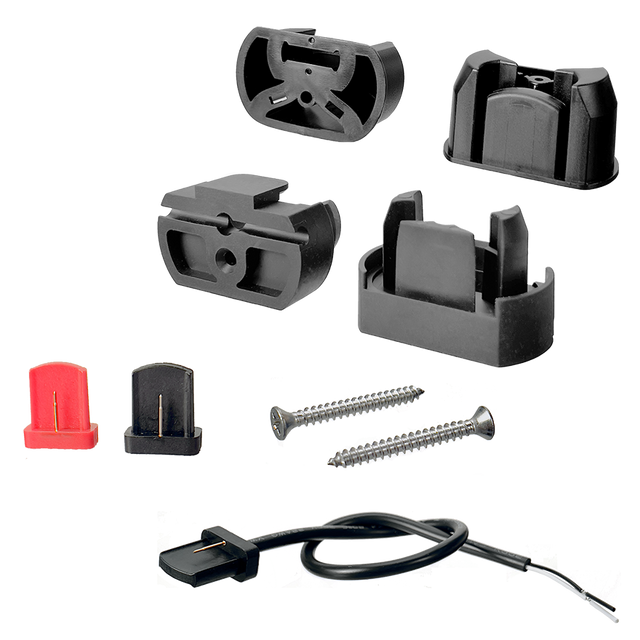

Content

(2) Cages

(2) Caps

(1) Wired plug

(1) Diode capacitor plug (red)

(1) Non-terminated plug (black)

(2) #6 x 1-1/4-in. Phillips flat head stainless steel screws
