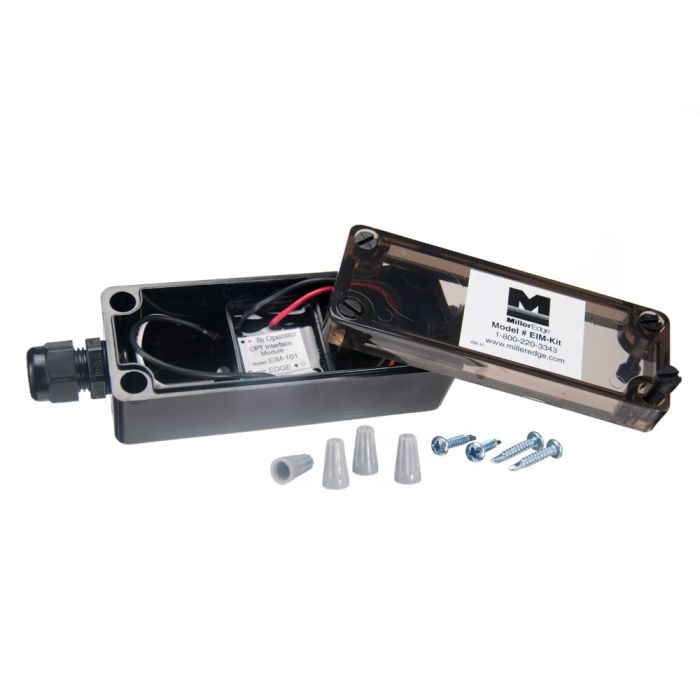

EIM-101 Electronic Interface Module w/ Nema 4 Junction Box
Eligible for shipping. Freight will apply.
EIM-101 Electronic Interface Module w/ Nema 4 Junction Box is available for shipping.
Subject to a 2% tariff surcharge at checkout
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description
The Miller Edge Electrical Interface Module (EIM) is designed for pre-2010 commercial door operators that utilize a 24 volt control circuit. EIM-101 allows for use of Miller Edge non-monitored CPT or other high resistance sensing edges on relay logic (electro-mechanical) controlled operators. EIM-101 is equipped with LED lights that indicate device power or fault conditions, is easy to install and includes a NEMA 4 junction box.
Applications
- Motorized doors
- Automated gates
Features
- Converts a high resistance input to a positive, normally open, dry contact output for pre-2010 commercial door operators
- Allows use of CPT edges on relay logic operators
- LED lights indicate device power or fault conditions
- Easy wiring connections
- Includes junction box for installation with coil cord or retracting reel
- Includes NEMA 4 protection from moisture, dirt, and dust
- UL 325 Recognized Component
- 1-year warranty
Content
(1) EIM-101 Electrical Interface Module
(1) JB-02-P-W NEMA 4 junction box with strain relief fittings
(4) Wire nuts
(4) Self-tapping stainless steel mounting screws
