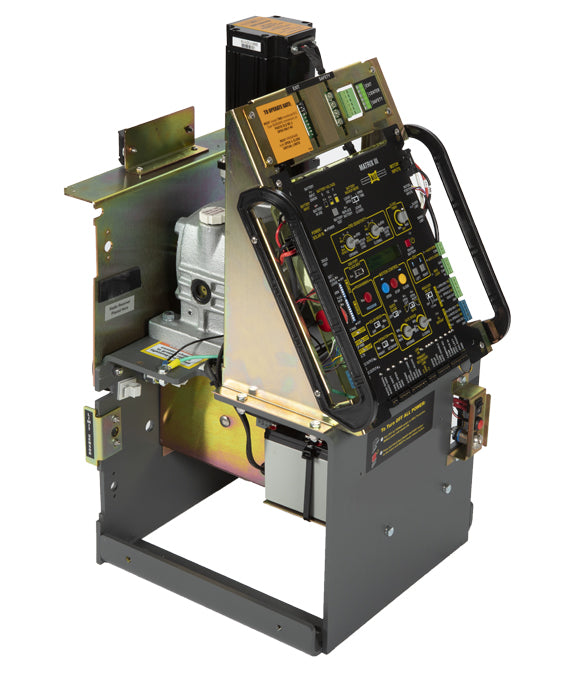

MAX F18 PRO High Traffic Commercial Brushless 24V DC Sliding Gate Operator

by Maximum Controls
Product Code: MAX F18 PRO
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$3,657.97
Shipping calculated at checkout.

MAX F18 PRO High Traffic Commercial Brushless 24V DC Sliding Gate Operator is available for shipping.

Tariff Subject to a 7% tariff surcharge at checkout

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description

Maximum Controls Max F18 PRO brushless DC fast slide gate operator has a gate capacity of 18″ per second at 1600 lbs.

The F18 PRO is strictly rated UL Class 3 & 4. The F18 PRO is not for residential use.

Applications

  • Aviation
  • Industrial
  • Government
  • Military
  • Corporate
  • Commercial
  • Correctional Facility

Typical Site Use

  • Airport Runway
  • Railway
  • Traffic Control
  • Military Base
  • Corporate Campus
  • Petrochemical
  • Law Enforcement

Mechanical Specifications

  • Max F18 PRO Slide Gate Operator dimensions (14.5” W x 19” D x 25.5” H) 7.5” chain height
  • Heavy-duty direct drive gear box Size 60, 30:1 gear ratio
  • Max F18 PRO capacity 1600lbs /60ft long gate speed 12” for UL class III and IV
  • Independent Opening and Closing speed controls for primary and secondary
  • Direct gear drive (no internal chains, belts, or pulleys)
  • Corrosion protection with gold zinc coating and electrostatic powder coating
  • Continuous cycle at extreme temperature ranges—overheating not possible
  • Intelligent ramp-up and ramp-down for smooth operation
  • Selectable short or long ramp-down
  • Shipping weight of Max Slide Gate Operator: Max F18 PRO (160 lbs)
  • Programmable virtual OPEN & CLOSE limit (Limits auto-set in the event of a total power loss)

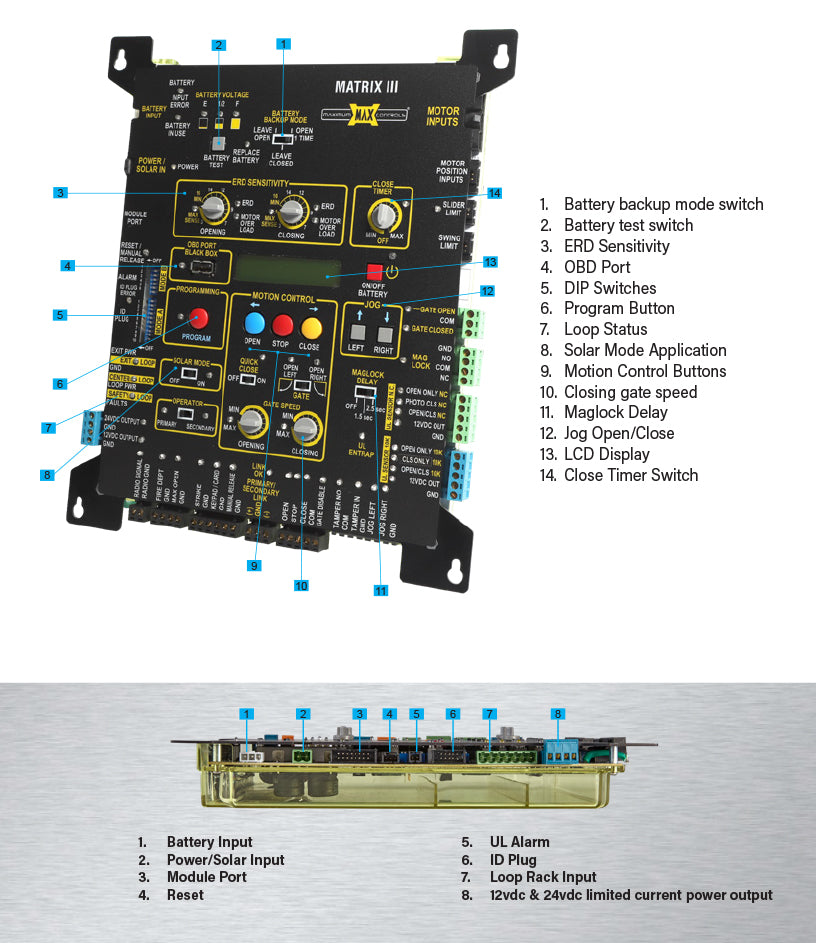

Electrical Specifications

  • Electronic Release: Jog switch at front cover sliding window
  • Brushless DC motor equivalent to 1 1/4 HP AC motor
  • Programmable gate speed controls, 16 selectable speeds
  • Automatic gate position reset requires optional magnets and sensors or when using virtual limits, positive stops on both gate directions
  • Modular system designed for ease of service
  • Switchable 115/230 voltage selection
  • Adaptive DSP control for advanced brushless DC motion control
  • Real time performance analyzer and event log (OBD PORT and Black Box) 8000 events including the history of error failure
  • LCD display that report past and recent errors
  • Low voltage wiring capabilities for remote power up 500 ft (no battery needed)
  • ‘Solar Ready’ battery module with built-in advanced solar regulator
  • Intelligent power management system with energy saver mode
  • Built-in 12V DC and 24V DC outputs
  • Gold contact input connections and automobile grade connectors
  • Selectable open timer 0 to 60 seconds with ‘timer-off’ option
  • -4F to 165F (-20C to +74C) operational temperature range including battery performance without needing a heater
  • Robust lightning protection up to 20KVolts and 10KAmps on all inputs and outputs (44 channels) including loop detector input connections
  • Motor overcurrent safety shut-off for additional protection
  • This operator includes a battery backup module providing on average 200 cycles in case of power failure
  • Three modes of selectable battery backup functions
  • State machine design electronics with ultra-fast microprocessor
  • On-board three button station
