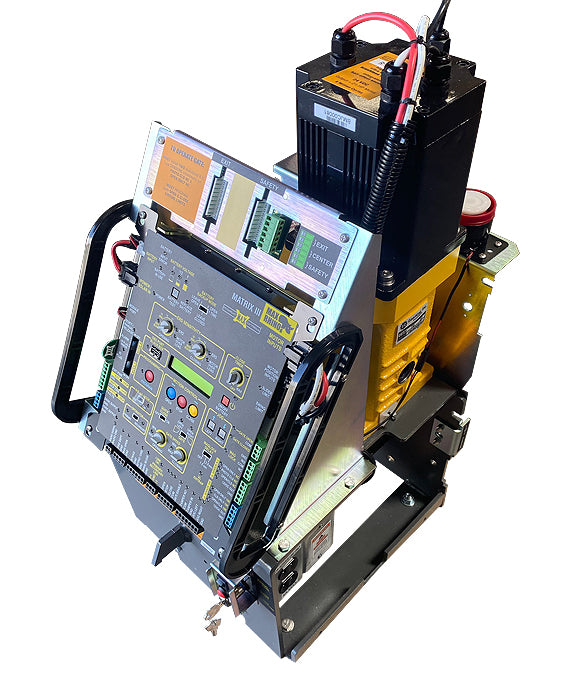

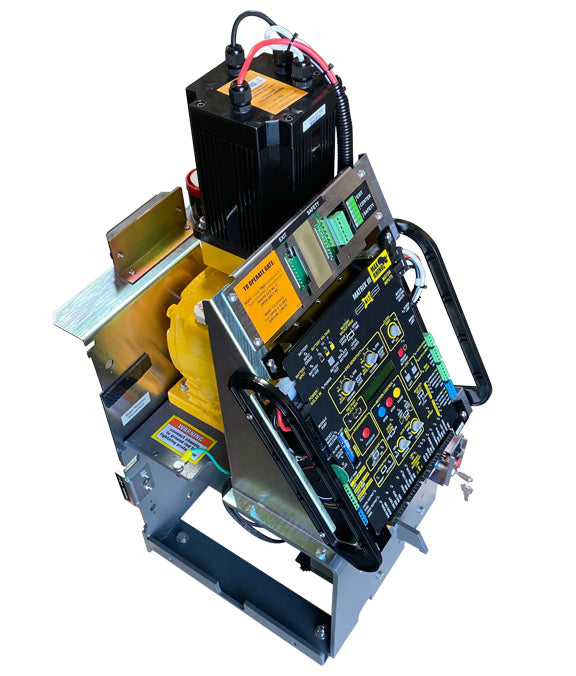

MAX RHINO 4000 FS Heavy Duty Industrial Brushless 24V DC Sliding Gate Operator

by Maximum Controls
Product Code: MAX RHINO 4000 FS
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$5,338.32
Shipping calculated at checkout.

MAX RHINO 4000 FS Heavy Duty Industrial Brushless 24V DC Sliding Gate Operator is available for shipping.

Tariff Subject to a 7% tariff surcharge at checkout

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description
  • Built-in battery backup
  • 2 AGM (7Amp/Hr) 12V, Yuasa batteries, 40 cycles
  • Operator does not rely on the batteries when AC power is present
  • On board diagnostic logs 8000 past events, large LCD display shows current and past errors and info.
  • Dynamic braking system, in closed position, will fight back if unauthorized push back is attempted.
  • Audible alarm and relay out trigger when unauthorized entry (push back) is attempted
  • Brushless DC Motor equivalent to 2 1/2 HP AC motor• Gate capacity 4000 lbs• 3-year warranty on gate operator
  • Battery 1-year warranty
  • Motor overcurrent safety shutoff for additional protection
  • Direct drive gearbox in oil bath allows less moving parts (making the system more reliable) as well as quieter (virtually silent)
  • Lightning Protection: Advanced lightning strike protection up to 20,000 Volts/10,000 amp
  • Continuous duty cycles at extreme temperature range -4F to 165F (-20C to +74C) operational temperature range including battery performance without needing a heater.
  • Safety monitor device types: Normally closed or 10K types (most safety inputs in the industry)
  • UL 325/991 compliant Class III, and IV. CSA approved
  • Rhino Slide Gate Operator dimensions (14.5” W x 19 5/8” D x 29” H) weight 225 lbs
  • The chain tray can be used on this gate operator
  • Chain #50 nickel plate - 30 ft included
  • Independent open and closing speed control, adjustable from 19” per second to 10” per second
  • Manual disconnect:Local switch, keypad, or any dry contact relay will release dynamic braking, allowing gate to be pushed back in case of emergency
  • Programmable virtual limit standard
  • Optional magnetic limit sensors available
  • Gate status outputs for gate monitoring/Gate Open or Close
  • Power options Input 115V/230V AC single phase
  • Solar panel compatible (24V DC)
