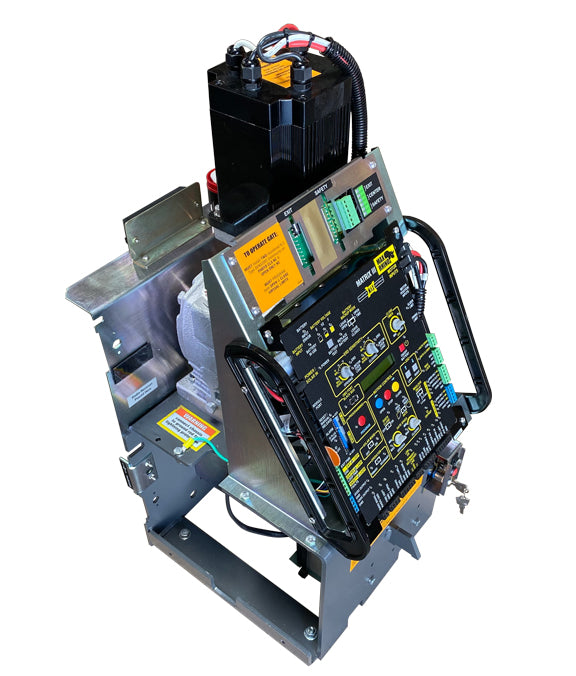

MAX RHINO 5500 Heavy Duty Industrial Brushless 24V DC Sliding Gate Operator, Max Gate Weight 5,500 Lbs.

by Maximum Controls
Product Code: MAX RHINO 5500
Pickup Eligible for free local pickup. If this item is out of stock, we will bring it to an R&S location near you at no cost.
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$5,317.23
Shipping calculated at checkout.

MAX RHINO 5500 Heavy Duty Industrial Brushless 24V DC Sliding Gate Operator, Max Gate Weight 5,500 Lbs. is available for shipping.

No Tariff No import tariff

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description

• Built-in battery backup

• 2 AGM (7Amp/Hr) 12V, Yuasa batteries, 40 cycles

• Operator does not rely on the batteries when AC power is present

• On board diagnostic logs 8000 past events, large LCD display

• Shows current and past errors and info

• Dynamic braking system, on incline applications.

• Audible alarm and relay out trigger when unauthorized entry (push back) is attempted

• Brushless DC Motor equivalent to 2 1/2 HP AC motor

• Gate capacity 5500 lbs

• 3-year warranty on gate operator

• Battery 1-year warranty

• Motor overcurrent safety shutoff for additional protection

• Direct drive gearbox in oil bath allows less moving parts (making the system more reliable) as well as quieter (virtually silent)

• Lightning Protection Advanced lightning strike protection up to 20,000 Volts/10,000 amp

• Continuous duty cycles at extreme temperature range -4˚F to 165˚F (-20o˚C to +74˚C) operational temperature range including battery performance without needing a heater

• Safety monitor device types: Normally closed or 10K types (most safety inputs in the industry)

• UL 325/991 compliant Class III, and IV. CSA approved

• Rhino Slide Gate Operator dimensions (14.5” W x 19 .625” D x 29” H) weight 225 lbs

• The chain tray can be used on this gate operator

• Chain #50 nickel plated • 30 ft included

• Independent open and closing speed control, adjustable from 8” per second to 12” per second

• The jog key feature on the Rhino is used for emergency opening or closing. Think of the jog circuit as a single trace from key to power source to motor. The jog input can also be connected a latched relay on your keypad for emergency opening of the sliding gate due to UL2018 open device failure.

• Programmable virtual limit standard

• Optional magnetic limit sensors available

• Gate status outputs for gate monitoring/Gate Open or Close

• Power options Input 115V/230V AC single phase

• Solar panel compatible (24V DC)
