SFK-DS005-HVAC - HVAC Kit
Eligible for shipping. Freight will apply.
SFK-DS005-HVAC - HVAC Kit is available for shipping.
No import tariff
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description

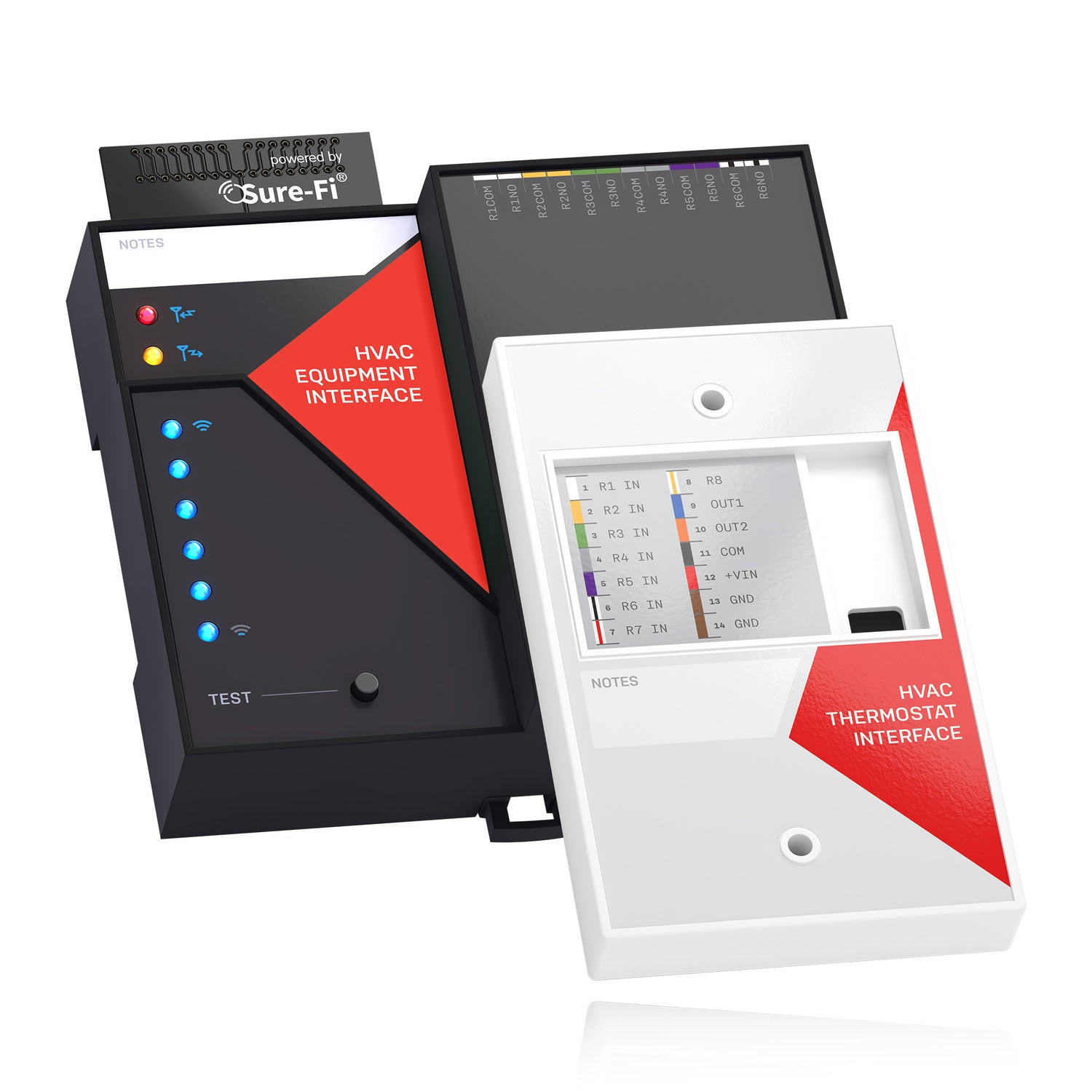

The HVAC bridge comprises two or more Sure-Fi Units, a Thermostat Interface and one or more Equipment Interfaces. The Thermostat interface is connected to the Thermostat and the others are connected to the HVAC Equipment. In operation, when the thermostat sends a signal to engage a function on the HVAC System the signal is received by the connected Sure-Fi Thermostat interface. This unit then sends this signal wirelessly to the other Sure-Fi units which in turn, engages their own relays, thus completing the action as if a direct wired connection existed between the devices. The wireless communication eliminates the need for physical wiring between the two devices.
Specifications
- Works with Conventional HVAC Systems
- Supports up to 8 functions between Thermostat and Equipment Units
- Compatible with Heat Pump Systems
- Connect up to 8 Equipment Units to one Thermostat
- UL 60730-1

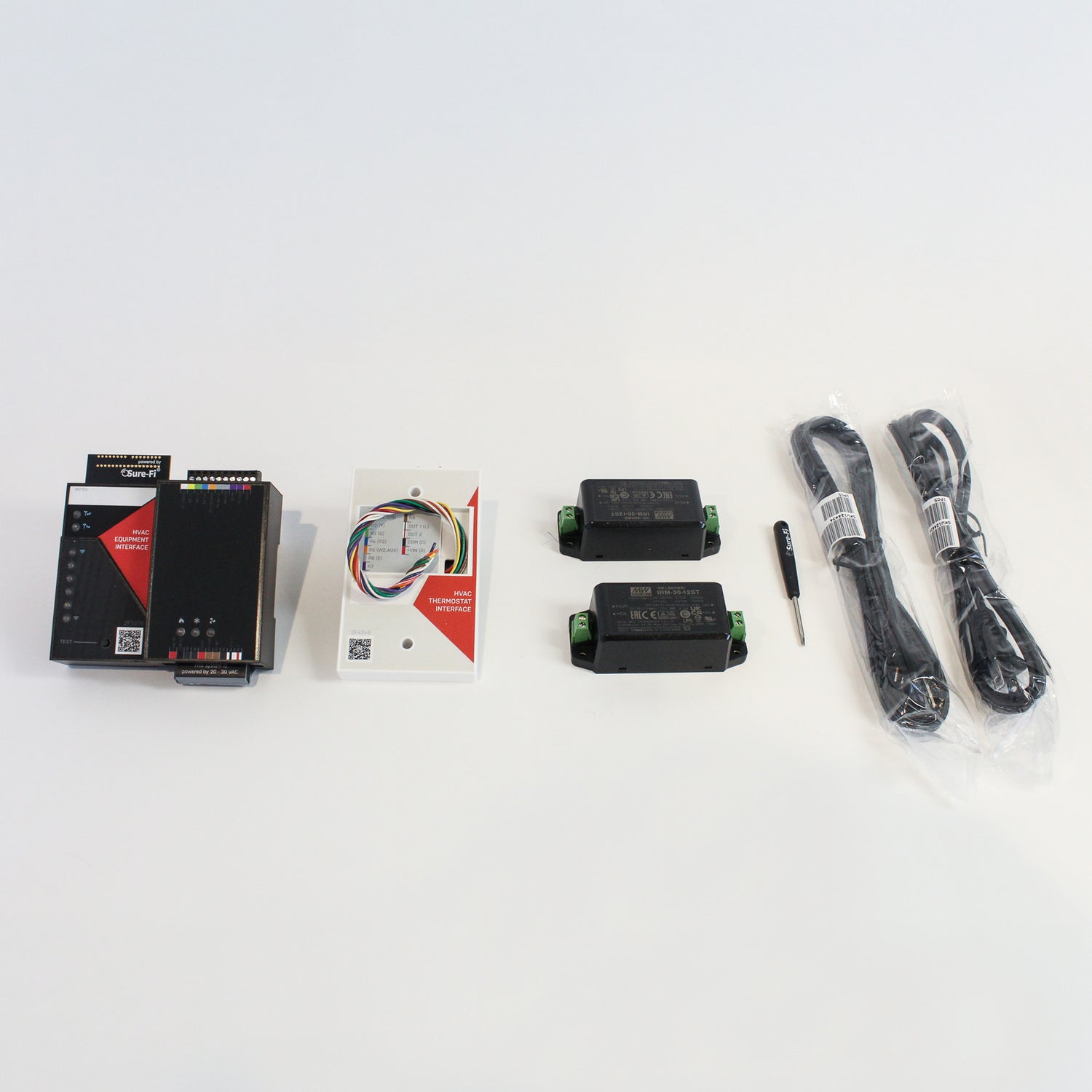

Items Included
- 1, Sure-Fi HVAC Wireless Bridge System, DS005-HVAC. Includes one Equipment and one Thermostat Interfaces

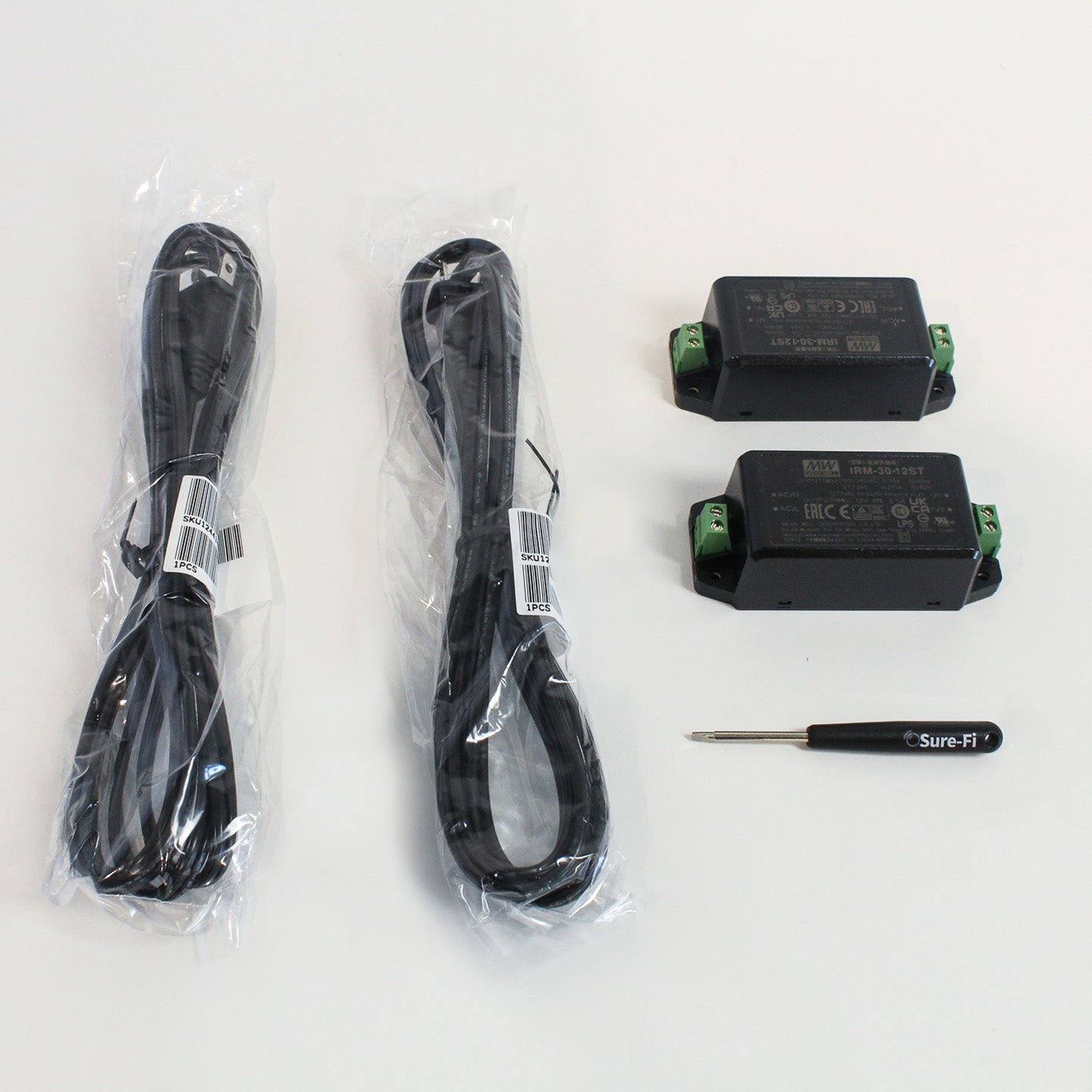

- 2, 12V 2.5A Output Power Supplies with 100-240, 277 VAC Input
- 2, 6 foot power cords
- 1, Sure-Fi Screwdriver
