SFK-DS006-RELAY - Relay Kit

by Sure-Fi
Product Code: SFK-DS006-RELAY
Pickup Eligible for free local pickup. If this item is out of stock, we will bring it to an R&S location near you at no cost.
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$1,111.89
Shipping calculated at checkout.

A wireless relay bridge that enables wireless communication between two devices that normally communicate through a wired connection using a relay. Relays are electrically operated switches that allow a lower power signal to control a higher power circuit.
No Tariff No import tariff

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description

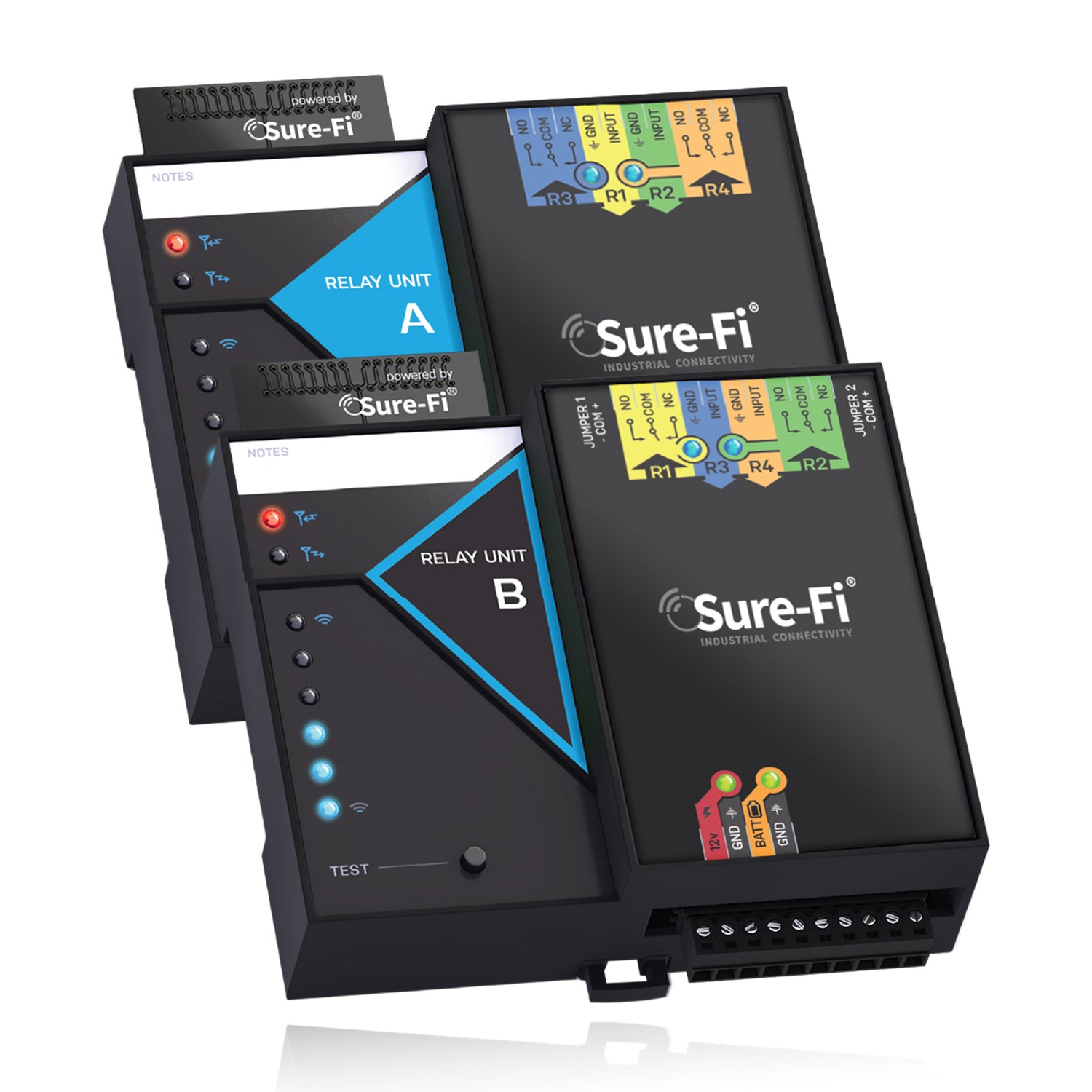

The wireless relay bridge comprises two Sure-Fi Units, A and B. One Unit is connected to the first device and the other is connected to the second device. In operation, when the first device sends a signal to engage the relay (turn on a switch, for example), this signal is received by the connected Sure-Fi unit. This unit then sends this signal wirelessly to the other Sure-Fi unit which in turn, engages its own relay, thus completing the action as if a direct wired connection existed between the two devices. The wireless communication eliminates the need for physical wiring between the two devices.

Specifications

  • Works for general purpose relay control
  • 2 pairs of relay input/outputs each direction
  • 1 digital input/output each unit
  • Battery backup input with UPS function

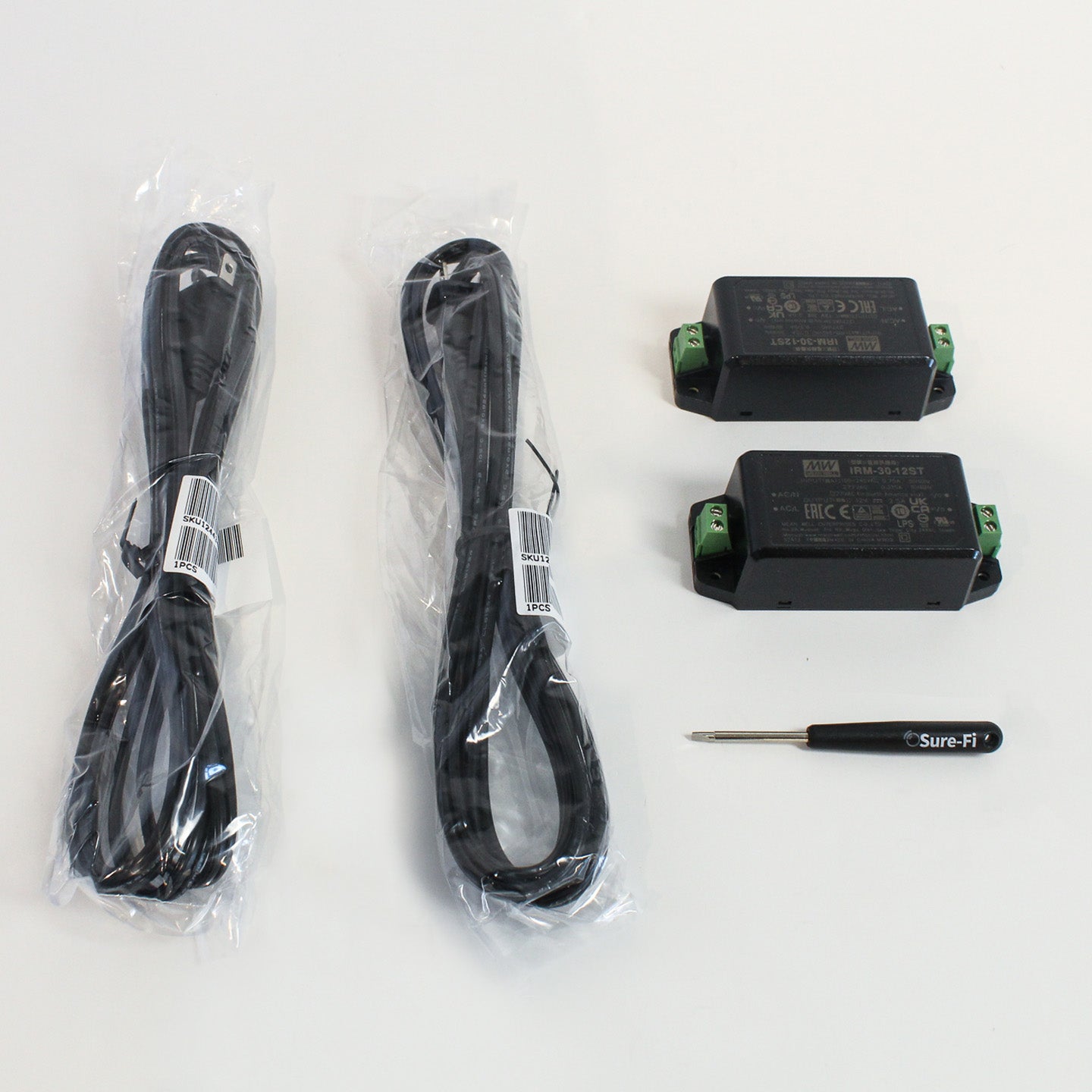

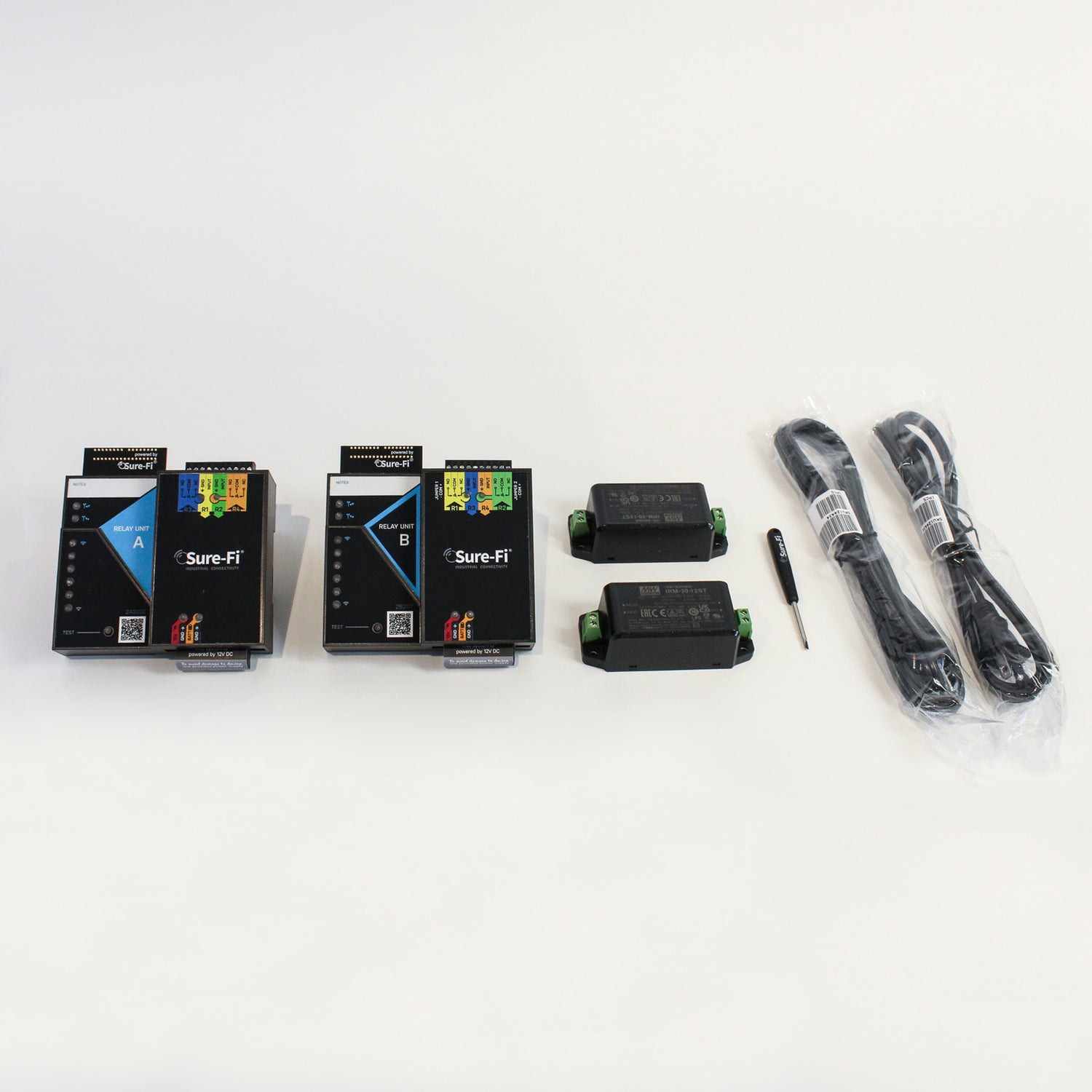

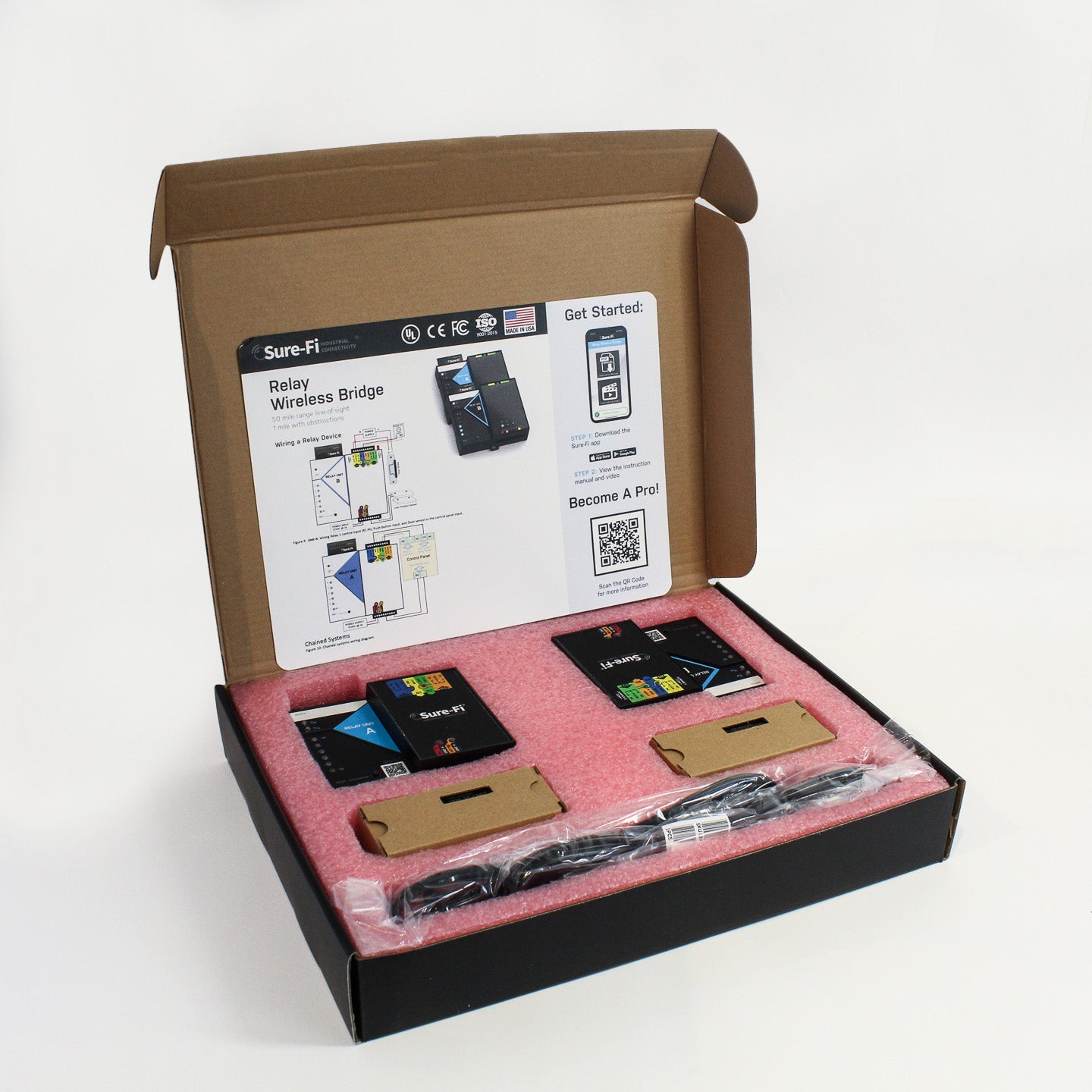

Items Included

  • 1 - Sure-Fi Relay Wireless Bridge System, DS006-RELAY. Includes one Relay Unit A and one Relay Unit B
  • 2 - 12V 2.5A Output Power Supplies with 100-240, 277 VAC Input
  • 2 - 6 foot power cords
  • 1 - Sure-Fi Screwdriver
