SFK-DS010-RELAY-PRO - Relay Kit
Eligible for shipping. Freight will apply.
SFK-DS010-RELAY-PRO - Relay Kit is available for shipping.
No import tariff
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description

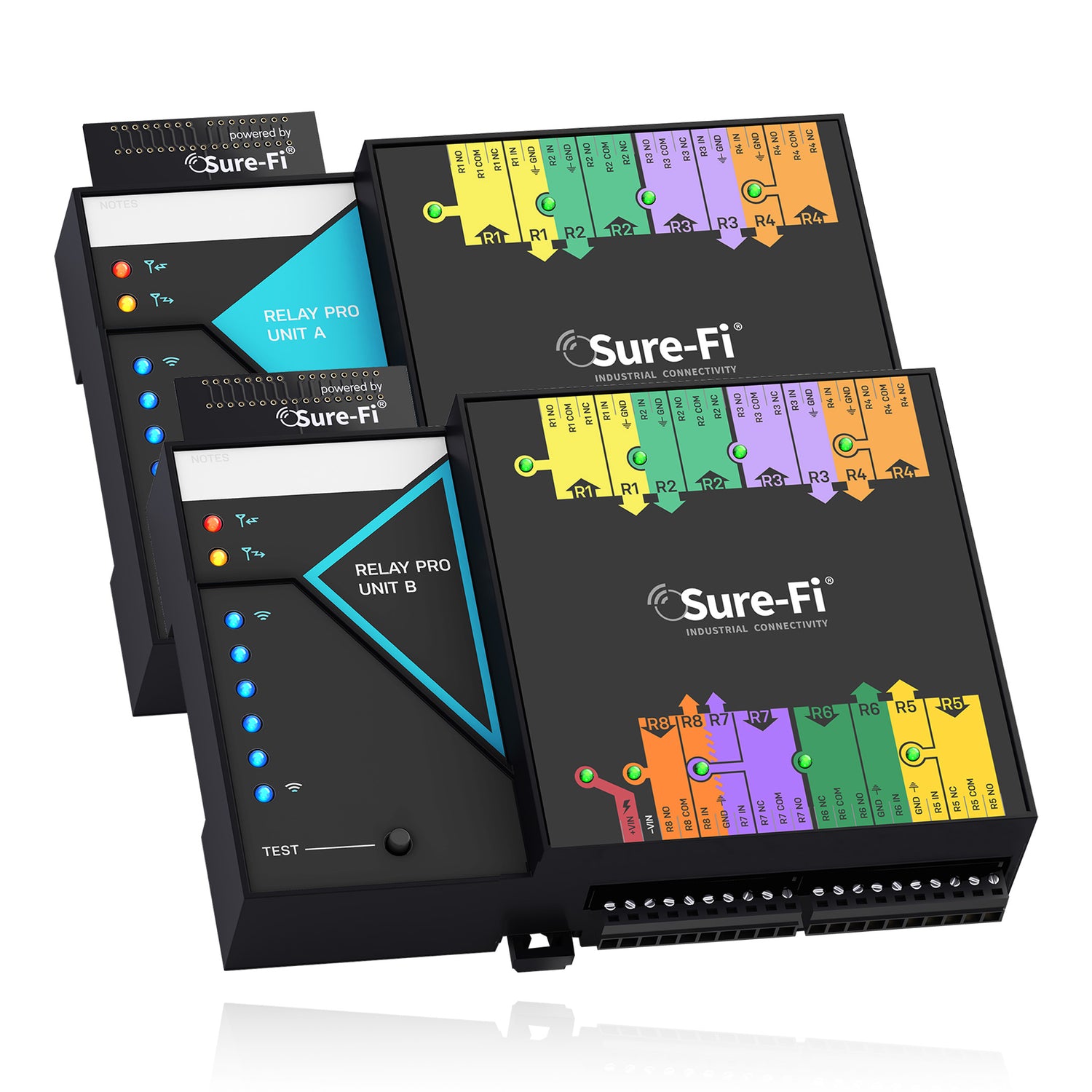

The Relay Pro bridge comprises two Sure-Fi Units, A and B. One Unit is connected to the first device and the other is connected to the second device. In operation, when the first device sends a signal to engage the relay (turn on a switch, for example), this signal is received by the connected Sure-Fi unit. This unit then sends this signal wirelessly to the other Sure-Fi unit which in turn, engages its own relay, thus completing the action as if a direct wired connection existed between the two devices. The Relay Pro bridge features more relays than the Sure-Fi Relay Bridge as well as more robust and higher rated relays. The wireless communication eliminates the need for physical wiring between the two devices.
Specifications
- Works for advanced relay control. Eight relays, each unit:
- Two FORM C Mechanical Relays 5A 220VDC/250VAC
- Five FORM C Solid State Relays, 2A 30VDC/30VAC
- One FORM A Solid State Relay, 0.75A 30VDC/30VAC
- Input Power 12/24V AC/DC
Items Included

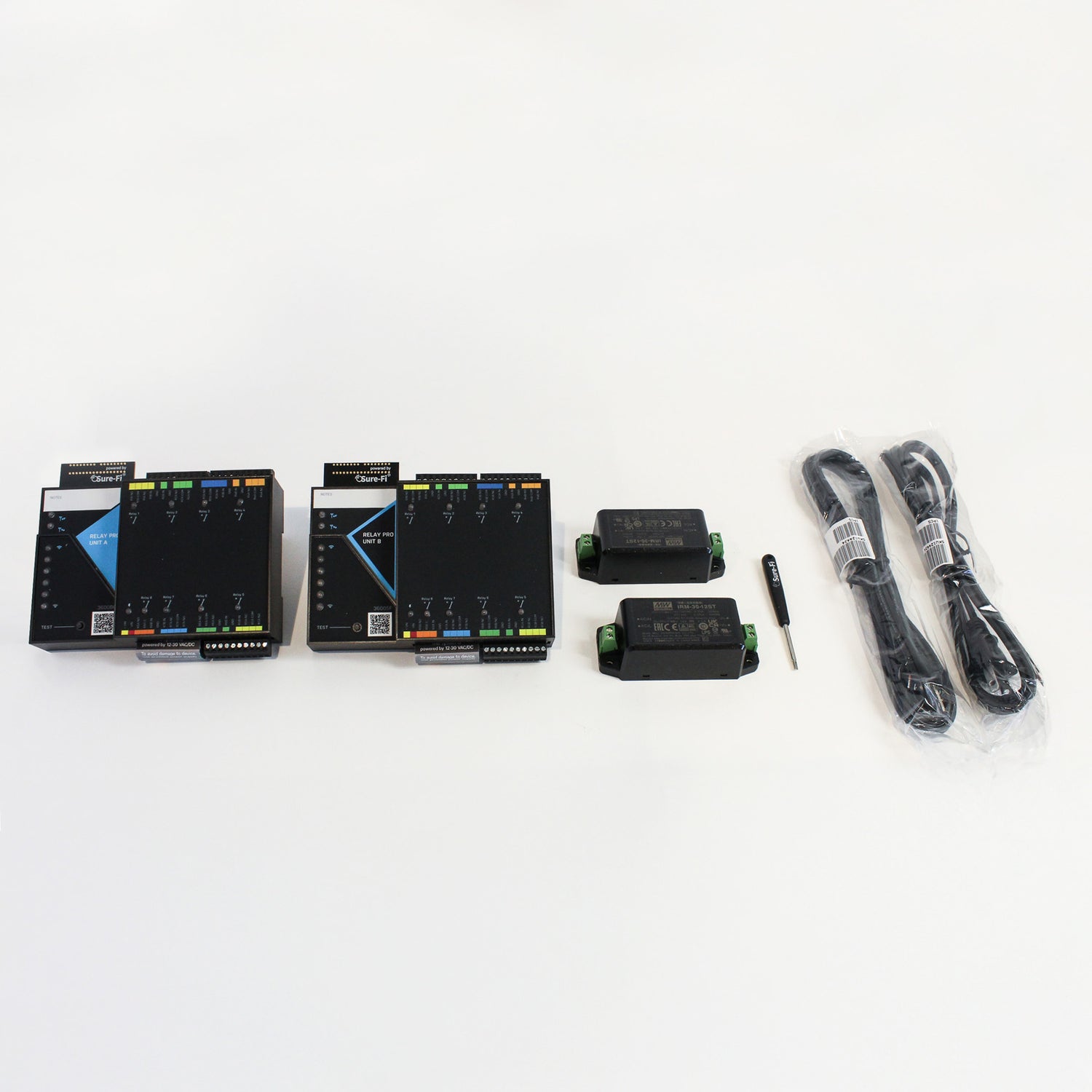

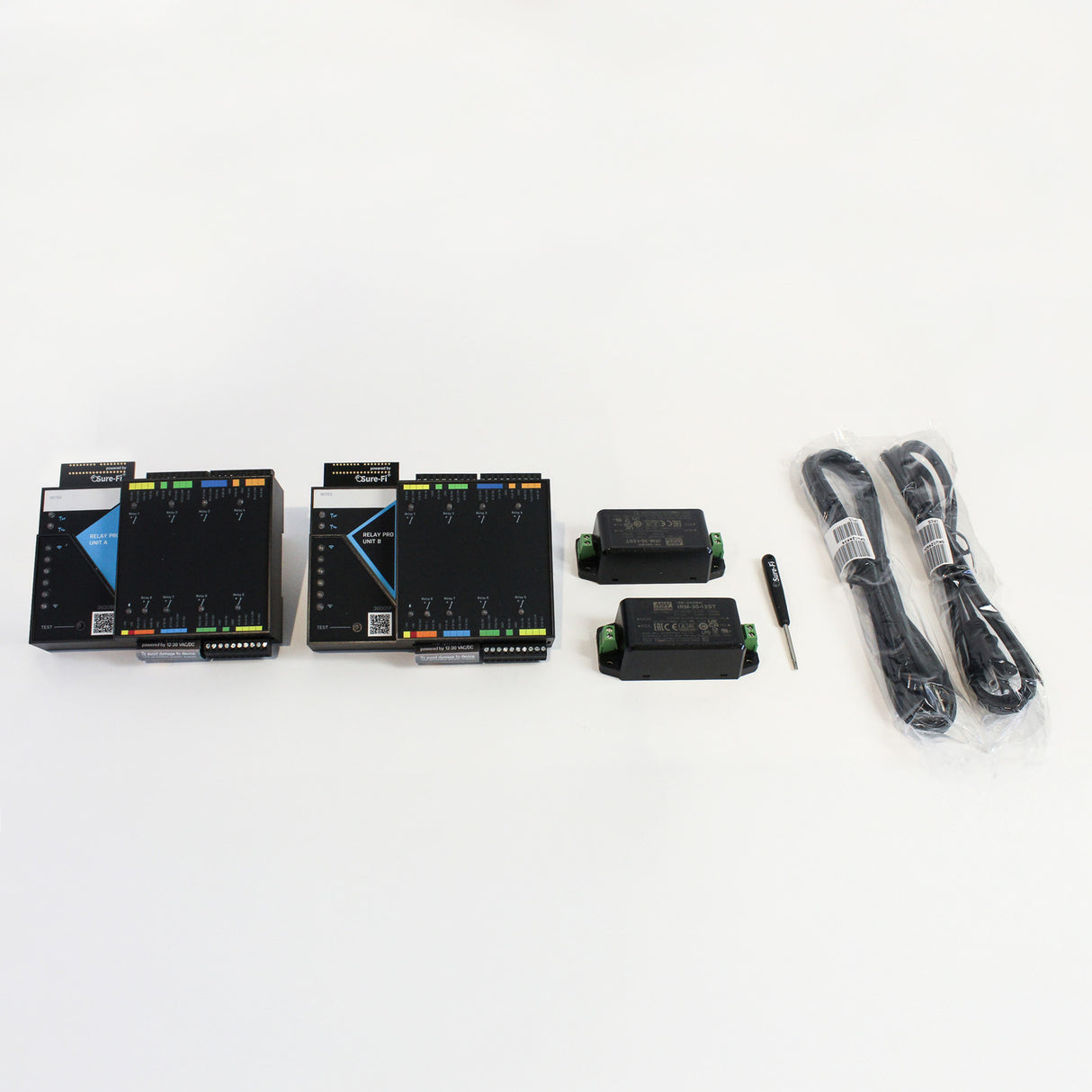

- 1 - Sure-Fi Relay Pro Wireless Bridge System, DS010-RELAY-PRO. Includes one Relay Pro Unit A and one Relay Pro Unit B

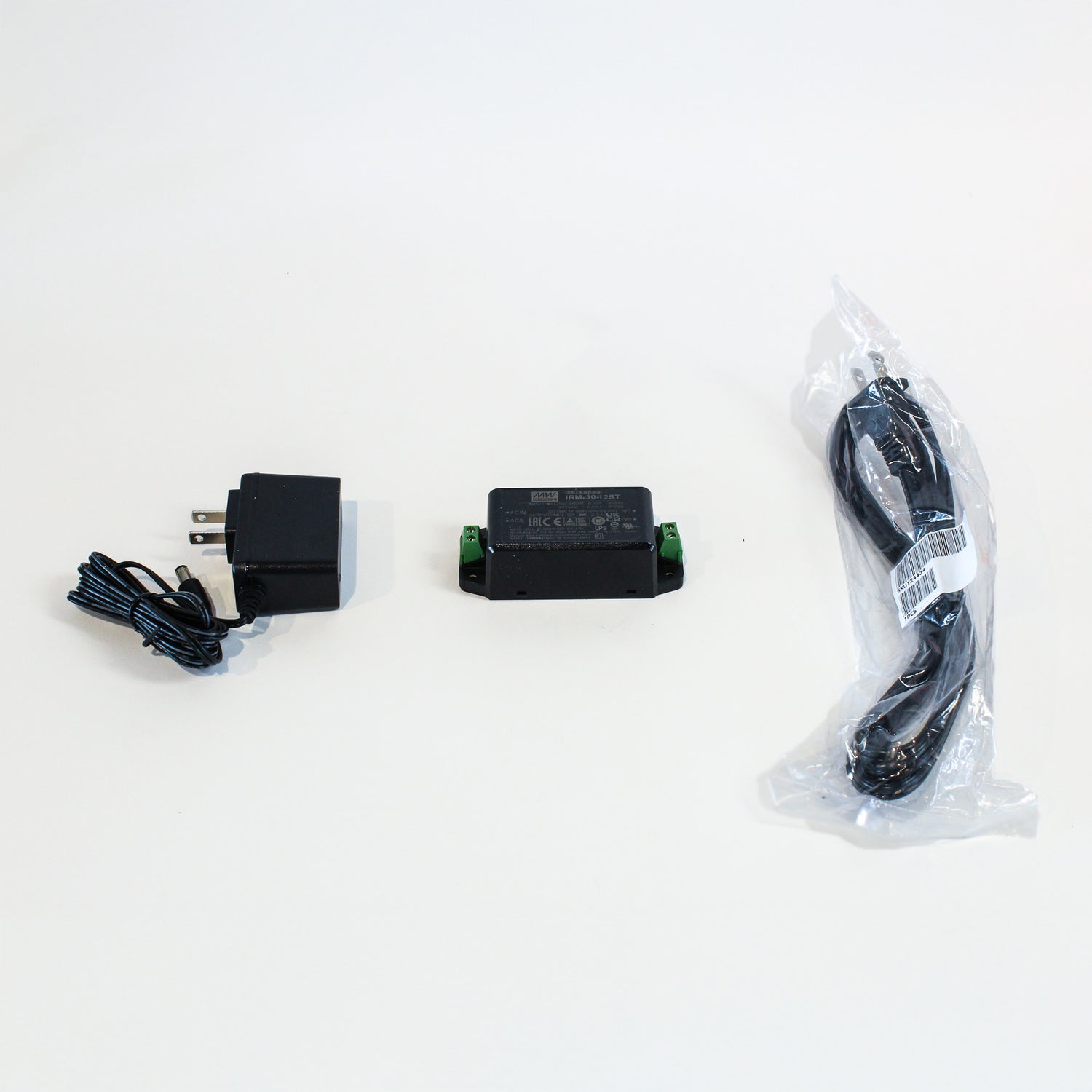

- 2 - 12V 2.5A Output Power Supplies with 100-240, 277 VAC Inputs
- 2 - 6 foot power cords
- 1 - Sure-Fi Screwdriver
