SFK-DS004-WIEGAND - Wiegand Kit

by Sure-Fi
Product Code: SFK-DS004-WIEGAND
Pickup Eligible for free local pickup. If this item is out of stock, we will bring it to an R&S location near you at no cost.
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$1,272.86
Shipping calculated at checkout.

A wireless bridge that enables you to wirelessly connect Wiegand-based access control systems, which are often used in security applications. Wiegand systems generally involve cables and wiring to transfer data between a card reader (like an access card scanner) and the control panel that decides whether to unlock a door.
No Tariff No import tariff

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description

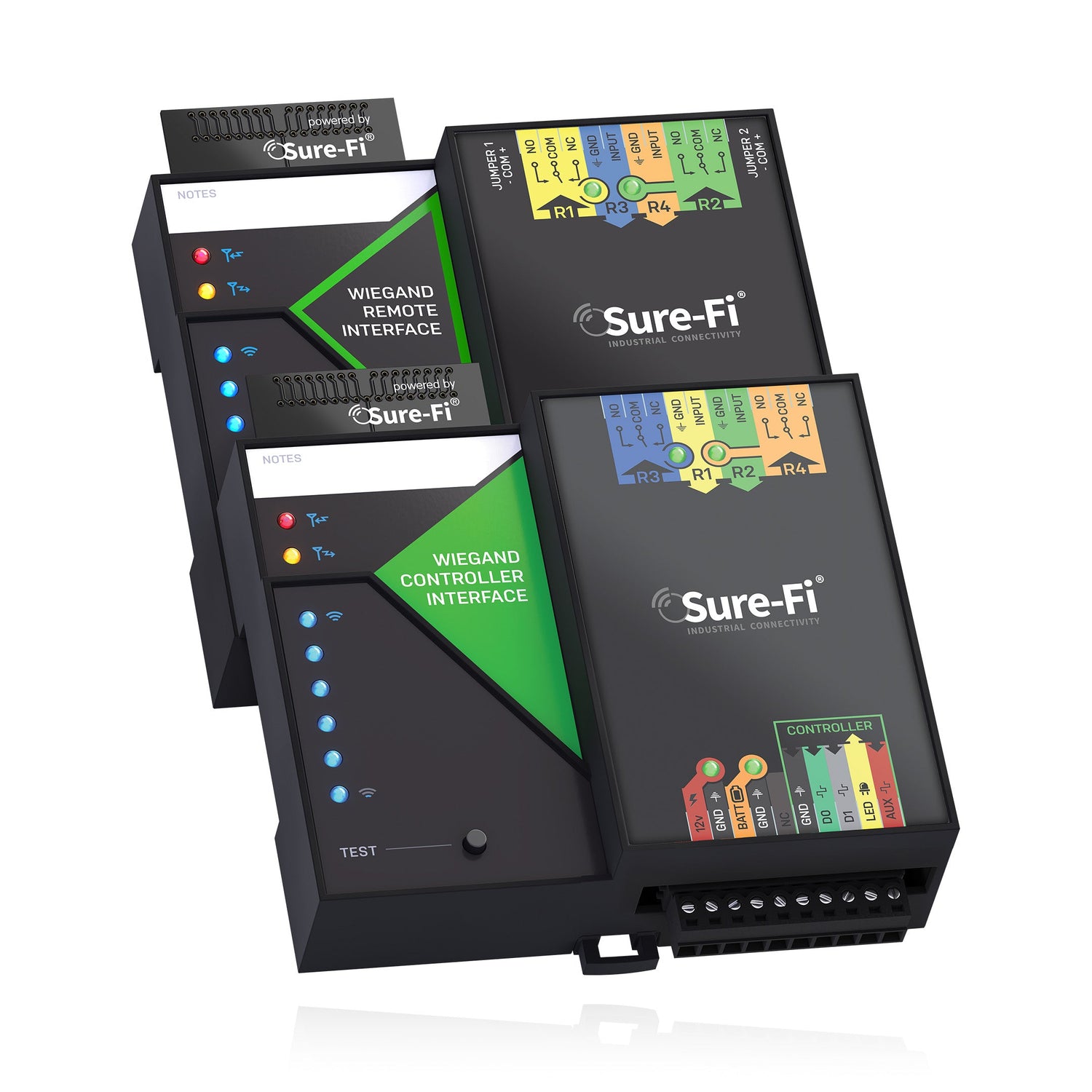

The bridge consists of two parts: a transmitter and a receiver. The transmitter (Remote Interface) is connected to the card reader, which reads access cards or key fobs. When a card is read, the transmitter sends the data wirelessly to the receiver. The receiver (Controller Interface), in turn, is connected to the control panel and sends the data to it, just as if it were wired directly to the card reader.

Specifications

  • Works with Any Wiegand protocol up to 64 Bits
  • 1 Wiegand input
  • 2 relay outputs (Wet or Dry) i.e. door strike, gate operator, mag lock, powered crash bars, etc.
  • 2 relay inputs i.e. Request to exit (REX), door position sensor (DPS), etc
  • UL CERTIFIED SECURITY US-CA

Items Included

  • 1 - Sure-Fi Wiegand Wireless Bridge System, DS004-WIEGAND. Includes one Controller and one Remote Interfaces
  • 2 - 12V 2.5A Output Power Supplies with 100-240, 277 VAC Input
  • 2 - 6 foot power cords
  • 1 - Sure-Fi Screwdriver
