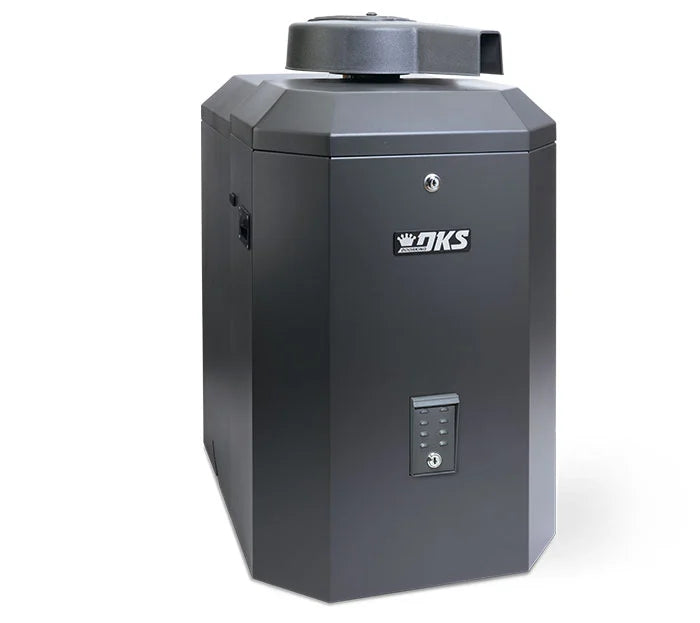

6550-380 Swing Gate Operator, 1HP, 115V, Primary
Eligible for shipping. Freight will apply.
Please log in to see if you’re eligible to purchase this product.
6550-380 Swing Gate Operator, 1HP, 115V, Primary is available for shipping.
No import tariff
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description
The 6500 Series Operators are designed to operate very large Vehicular Swing Gates in residential, commercial and industrial applications for both single and bi-parting gates. The Operator swings gates 90 degrees in approximately 12-14 seconds.
The unique design of this Operator allows for easy access to the electronics and mechanical areas of the Operator without ever having to remove the gate arm. The electronic magnetic limits will never wear out or break and they are easily adjusted. The solid steel frame and belt-driven gear box make this operator one of the quietest on the market today.
Secondary operators are used in bi‐parting (dual) gate applications, and cannot be used as a stand‐alone device.
Features

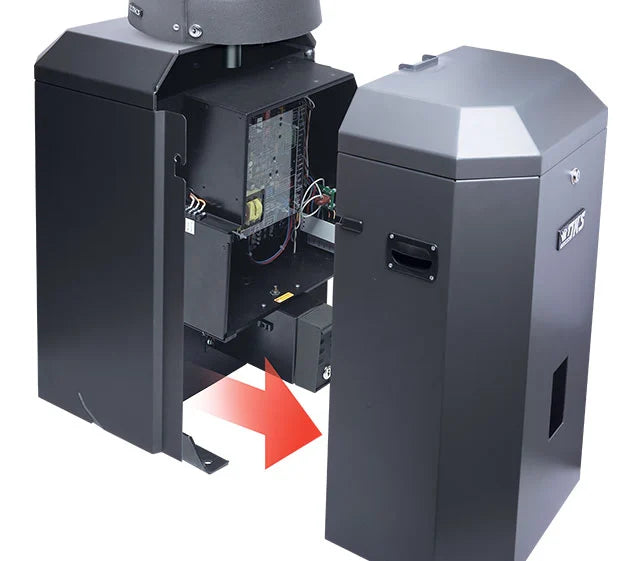

- Split Case: Two-piece split steel housing allows easy installation and maintenance.

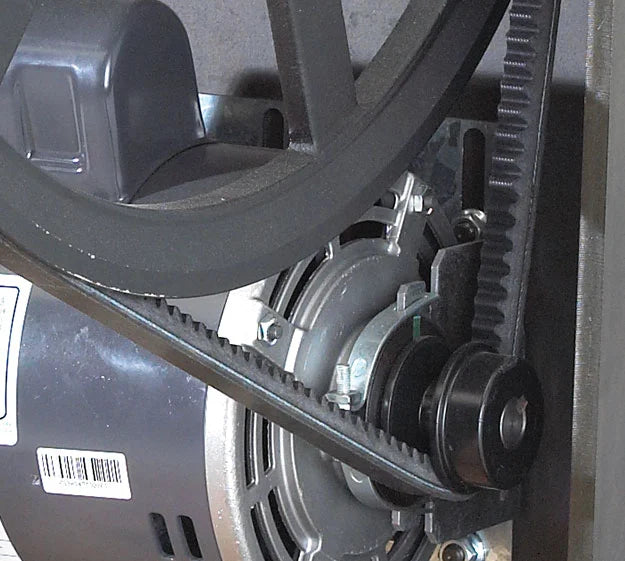

- One of the Quietest: The solid steel frame and belt-driven gearbox make this Operator one of the quietest on the market today.
- Steel Frame: Provides strength and durability even in harsh weather environments.
- Loop Detectors: Easy plug-in ports for DKS Loop Detectors.
- Breakaway Hub: Unique breakaway hub design prevents gear box damage if the gate is struck.
- Easy-to-Adjust Electronic Magnetic Limits: Eliminates old-style mechanical switches that can wear out, break, or fail.
Specifications
- Maximum gate width 25-ft.
- Maximum gate weight 2000 pounds*. (*Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
- 115 VAC. High Voltage Kit allows the operator to be powered from 208, 230, 460 or 575 source voltage. In dual gate applications, only one (1) kit is required (secondary operator DOES NOT require a high voltage kit).
- Class I, II, III and IV applications.
- Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
- Adjustable electronic magnetic limits
- Auto-close timer (1-23 seconds)
- Gate overlap feature for bi-parting (dual) gate operation
- Simple connection for secondary operator in bi-parting gate systems
- Built-in On / Off switch
- Built-in alarm reset switch
- Selectable shadow / reverse loop function
- Magnetic lock power
- Ports for plug-in open and reverse loop detectors.
- DKS plug-in detectors only
- Three 115 VAC convenience outlets for accessory transformers
Dimensions
21.0″W x 35.5″H x 27.25″D
(533.4mm W x 901.7mm H x 692.1mm D)
