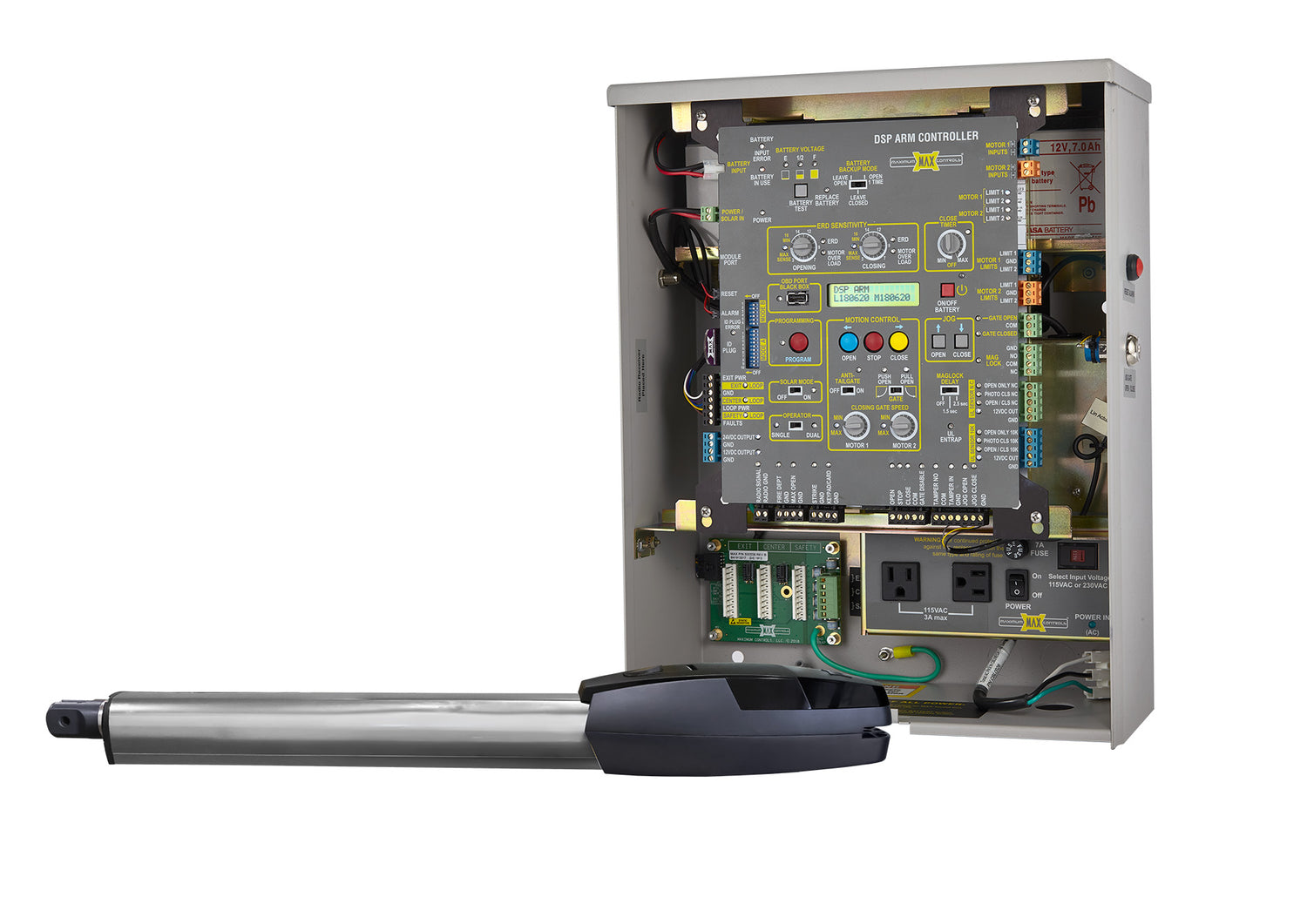

MAX ULTRA ARM Heavy Duty 24V DC Linear Actuator for Residential / Light Commercial Use
by Maximum Controls
Product Code:
MAX ULTRA ARM
Eligible for shipping. Freight will apply.
Regular price
$881.29
Unit price
/
Unavailable
Shipping calculated at checkout.
MAX ULTRA ARM Heavy Duty 24V DC Linear Actuator for Residential / Light Commercial Use is available for shipping.
Subject to a 7% tariff surcharge at checkout
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description
Mechanical Specifications
- Stainless steel output shaft 2″ tubular
- Direct gear drive (no internal chains, belts, or pulleys)
- Mechanical and electrical gate release functions
- Corrosion protection: powder coated aluminum housing
- Continue cycles at extreme temperature ranges. No overheating
- Limit Switch base Intelligent ramp-up and ramp-down for smooth gate operation
Security Specifications
- High traffic intuitive loop management system for exceptional security
- Advanced security features with built-in audible and remote alarms
- Magnetic lock control relay outputs with selectable delay times
- Tamper alert relay output triggers “on” if gate is forced open
- Audible alarm if gate is tampered with or ERD is triggered for heightened security
- Steel cover with lock protects against intruders and vandalism
- Gate disable feature disables all inputs with exception of the fire department and Max Open input for increased security
- Built in transaction buffer
- Gate status outputs for gate monitoring
- Key activated jog function for emergency OPEN/CLOSE function
- Advanced anti-tailgate feature prevents unwanted intrusion
Safety Specifications
- UL 325/991 compliant Class I, II, III, and IV. CSA approved
- Built in advanced entrapment protection and alarm output
- Built in “gate-in-motion” alarm for industrial applications

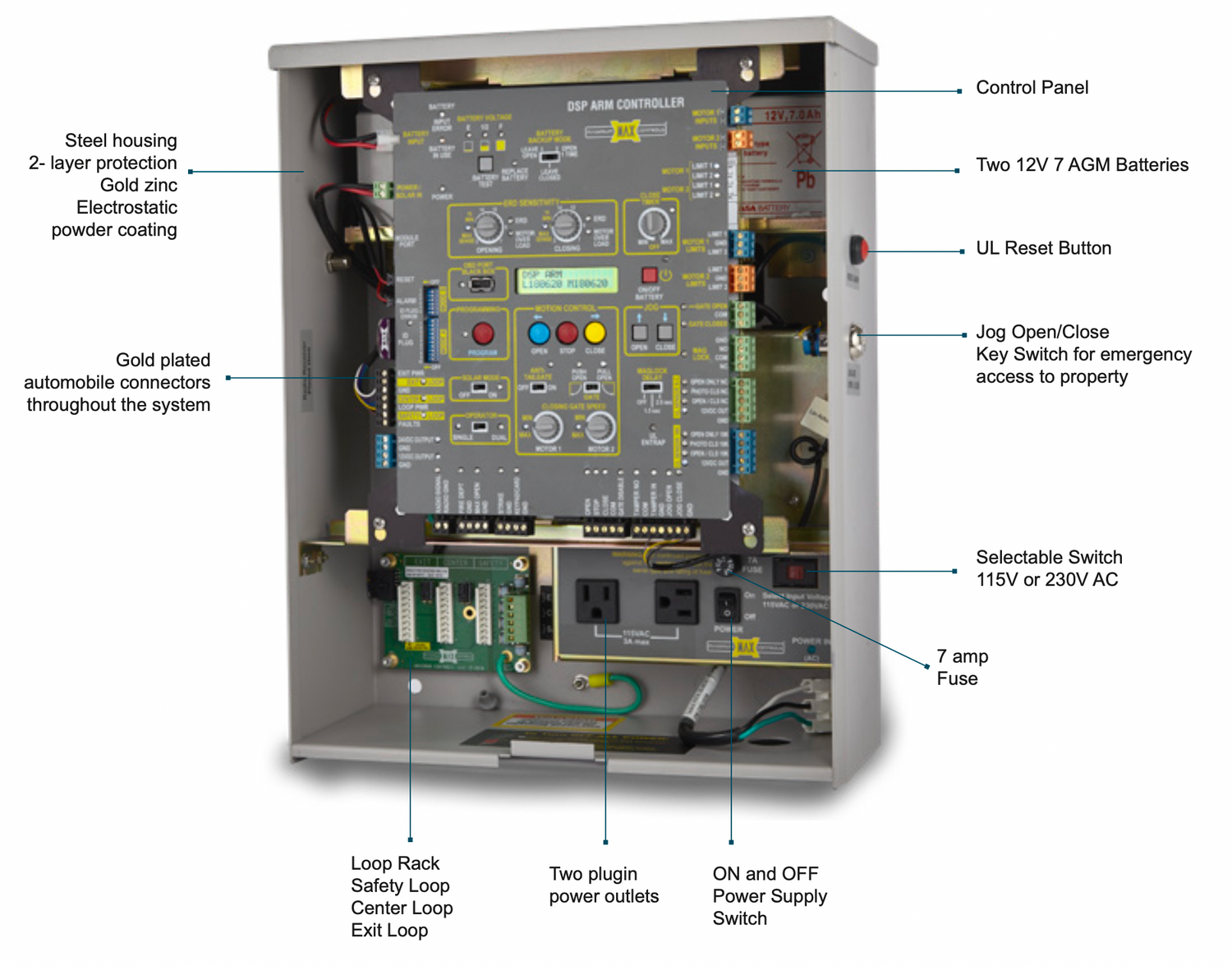

AC Control Box
- The AC Control Box features rugged metal construction that is gold zinc plated and powder coated.
- Each AC Control Box comes with an exterior UL reset button, a convenient jog key switch for emergency access or egress, a 10 amp power supply with two 115 VAC accessory outlets, two 7 amp batteries conveniently located behind the control panel, a loop rack and much more. A lockable steel cover finishes off this slick design.

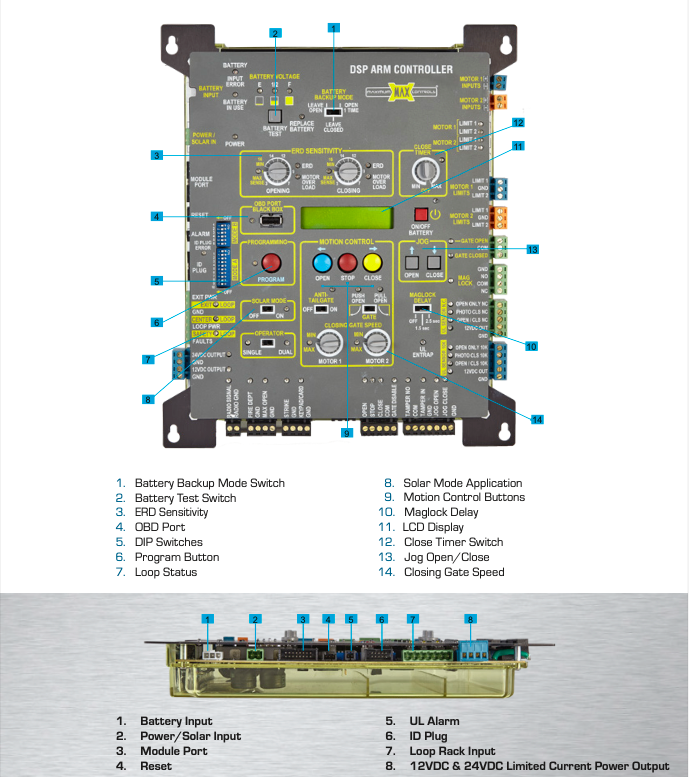

- A convenient LCD display keeps you informed. Functional data and error messages are visible when an accessory failure or function is present. This makes troubleshooting and monitoring a breeze.
