SUPER ARM 2300 Heavy Duty Commercial Actuator

Mechanical Specifications

• The patented brake system allows the operator to retract with extreme force. When the force exceeds 3 tons, the clutch releases upon impact then automatically resets. Causes for clutch release include a vehicle strike while the gate is in motion.
• Stainless steel output shaft
• Direct gear drive (no internal chains, belts, or pulleys)
• Mechanical and electrical gate release functions
• Corrosion protection: gold zinc and powder coated aluminum housing
• High cycles at extreme temperature ranges. No overheating
• Intelligent ramp-up and ramp-down for smooth gate operation

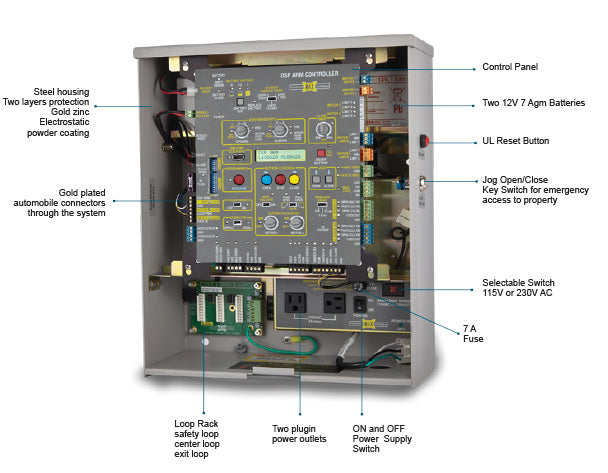

Electrical Specifications

• 24 Volt DC motor
• Two independently adjustable closing speed controls with 16 positions each
• Switchable 115/230 voltage selection

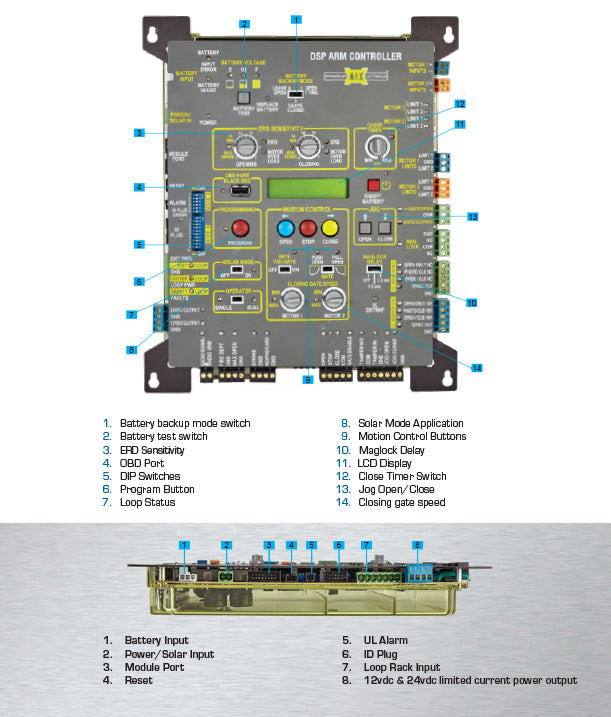

• Adaptive DSP motor control for advanced motion control
• Real time performance analyzer and event log (OBD PORT and Black Box)

• Magic Box enables low voltage wiring capabilities for remote power up to 1000 ft
• On-board switch for solar mode enables 18 milliamp idle in sleep mode
• Gold contact input connections and automobile grade connectors
• -4F to 165F (-20C to +74C) operational range including battery backup without a heater
• Robust lightning protection, up to 20KVolts and 10KAmps on all inputs and outputs (35 channels) including loop detector input connections
• Two selectable 16 position safety obstruction sensors, auto adaptable to gate weight and size, for independent control of open and close cycles
• Independent closing speeds for primary and secondary
• Dual motor overcurrent safety shut off for additional protection
• Two 7amp hour batteries provides 500 cycles in case of power failure with three modes of battery backup, open once, leave open or leave closed
• On-board three button station
• On-board UL reset button

• High traffic intuitive loop management system for exceptional security
• Advanced security features with built-in audible and remote alarms
• Magnetic lock control relay outputs with selectable delay times
• Tamper alert relay output triggers “on” if gate is forced open
• Audible alarm if gate is tampered with or ERD is triggered for heightened security
• Steel cover with lock protects against intruders and vandalism
• Gate disable feature disables all inputs with exception of the fire department and Max Open input for increased security
• Built in transaction buffer
• Gate status outputs for gate monitoring
• Key activated jog fuction for emergency OPEN/CLOSE function
• Advanced anti-tailgate feature prevents unwanted intrusion

• UL 325/991 compliant Class I, II, III, and IV. CSA approved
• Vehicle hit protection technology protects the gate operator from collision damage caused by automobile impact, avoiding costly repairs
• Built in advanced entrapment protection and alarm output
• Built in gate-in-motion alarm for industrial applications
