MAX ARM Residential and Commercial Heavy Duty Actuator (TO BE DISCONTINUED)
Eligible for shipping. Freight will apply.
MAX ARM Residential and Commercial Heavy Duty Actuator (TO BE DISCONTINUED) is available for shipping.
Subject to a 7% tariff surcharge at checkout
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description

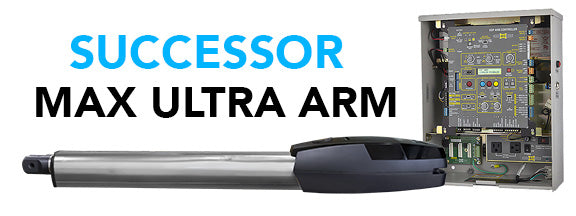

*TO BE DISCONTINUED / Replacement: MAX ULTRA ARM*
The Max Arm is a long throw linear actuator that will move up to 1000 lbs gates. The smooth motion control and separate closing speeds for dual gate installations truly sets this machine apart from its competition. The 15 gauge gold zinc, powder coated metal control box with standard loop rack and toroid power supply protects the many user friendly features of the DSP Arm Controller board. A window display for instant diagnostics, opening and closing emergency reversal controls, and easy logical control of gate motion and safety parameters are just a few aspects of many that makes Maximum Controls’ residential/commercial linear actuator a gate operator you
Mechanical Specifications
- Shipping weight of Actuator: Max Arm (27 lbs)
- Shipping weight of AC Control Box (38 lbs)
- Stainless steel output shaft
- Direct gear drive (no internal chains, belts, or pulleys)
- Mechanical and electrical gate release functions
- Corrosion protection: powder coated aluminum housing
- High cycles at extreme temperature ranges. No overheating
- Intelligent ramp-up and ramp-down for smooth gate operation
Electrical Specifications
- 24 Volt DC motor
- Two independently adjustable closing speed controls with 16 positions each
- Switchable 115/230 voltage selection
- Adaptive DSP motor control for advanced motion control
- Real time performance analyzer and event log (OBD PORT and Black Box)
- Magic Box enables low voltage wiring capabilities for remote power up to 1000 ft
- On-board switch for solar mode enables 18 milliamp idle in sleep mode
- Gold contact input connections and automobile grade connectors
- -4F to 165F (-20C to +74C) operational range including battery backup without a heater
- Robust lightning protection, up to 20KVolts and 10KAmps on all inputs and outputs (35 channels) including loop detector input connections
- Two selectable 16 position safety obstruction sensors, auto adaptable to gate weight and size, for independent control of open and close cycles
- Independent closing speeds for primary and secondary
- Dual motor overcurrent safety shut off for additional protection
- Two 7amp hour batteries provides 500 cycles in case of power failure with three modes of battery backup, open once, leave open or leave closed
- On-board three button station
- On-board UL reset button
