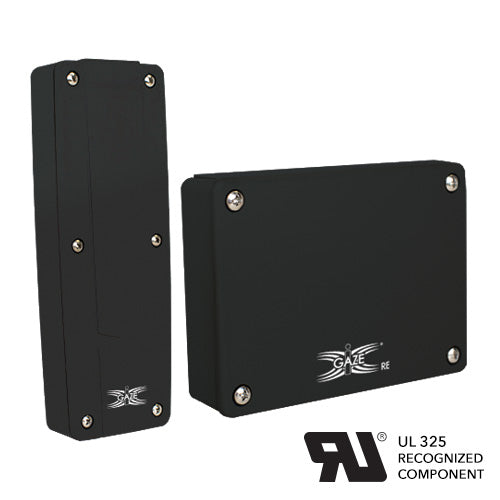

IGAZEREKIT-UL - IGAZE Wireless Safety Edge Kit

by Transmitter Solutions
Product Code: IGAZEREKIT-UL
Pickup Eligible for free local pickup. If this item is out of stock, we will bring it to an R&S location near you at no cost.
Shipping Eligible for shipping. Freight will apply.
Loading locations...
$241.61
Shipping calculated at checkout.

FEATURES Includes wireless transmitter (2 AA batteries) and receiver (12VAC/DC). Transmitter batteries included. Functions with mechanical & resistive edges simultaneously 65 feet of range between receiver & transmitter 2 Relay outputs Battery powered transmitter with up to 5 years battery life 8 Edges per relay Receiver enclosed in water tight box SPECIFICATIONS Operating frequency 902 – 928 Mhz Range in open space 65 feet Transmitter power supply 2 AA batteries Receiver power supply 12/24 Vac/dc Battery life for transmitter Normal mode: 2 years Low power mode: 5 years Compatible safety edges Mechanical (N.O. or N.C.) and/or resistive (8.2kΩ and 10kΩ) Number of outputs 2 Maximium # of transmitters for each receiver 8 for each device Maximum # of safety edges for each output 8 for each relay Power Draw on Receiver (24Vdc): 25mA (standby) 38mA (one relay engaged) 50mA (two relays engaged) Resistive Safety Edge: 2,7kOhm < R < 27KOhm (safety edge OK) R<2,7KOhm (safety edge in short circuit) R>27KOhm (OPEN safety edge)

IGAZEREKIT-UL - IGAZE Wireless Safety Edge Kit is available for shipping.

No Tariff No import tariff

Please log in to see if you’re eligible to purchase this product.

Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description

FEATURES

  • Includes wireless transmitter (2 AA batteries) and receiver (12VAC/DC).  Transmitter batteries included.
  • Functions with mechanical & resistive edges simultaneously
  • 65 feet of range between receiver & transmitter
  • 2 Relay outputs
  • Battery powered transmitter with up to 5 years battery life
  • 8 Edges per relay
  • Receiver enclosed in water tight box


SPECIFICATIONS

  • Operating frequency 902 – 928 Mhz
  • Range in open space 65 feet
  • Transmitter power supply 2 AA batteries
  • Receiver power supply 12/24 Vac/dc
  • Battery life for transmitter Normal mode: 2 years
  • Low power mode: 5 years
  • Compatible safety edges Mechanical (N.O. or N.C.) and/or resistive (8.2kΩ and 10kΩ)
  • Number of outputs 2
  • Maximium # of transmitters for each receiver 8 for each device
  • Maximum # of safety edges for each output 8 for each relay
  • Power Draw on Receiver (24Vdc):
  • 25mA (standby)
  • 38mA (one relay engaged)
  • 50mA (two relays engaged)
  • Resistive Safety Edge:
  • 2,7kOhm < R < 27KOhm (safety edge OK)
  • R<2,7KOhm (safety edge in short circuit)
  • R>27KOhm (OPEN safety edge)
