1000-083 Backup Power Inverter 1000 Watt Pure Sine Wave

by DoorKing
Product Code: 1000-083

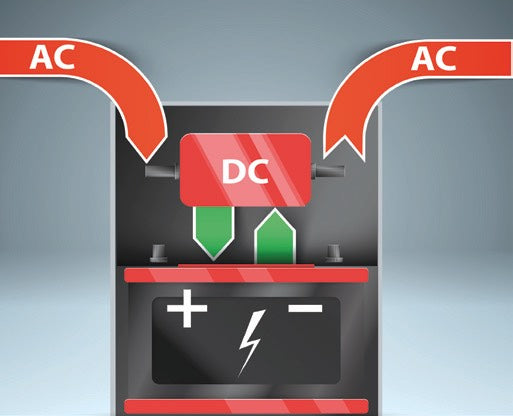

  • Provides backup AC power for Access Control Systems when primary (AC) power is lost
  • Pure sine wave inverter provides 120 volt, 60 cycle AC power
  • Maintains power to all components of the Vehicular Gate System including the Gate Operator, Loop Detectors, Secondary Entrapment Prevention Devices, Telephone Entry System, Card Access System, RF Controls, etc.
  • 2-Year Limited Factory Warranty – excludes batteries
Pickup Eligible for free local pickup. If this item is out of stock, we will bring it to an R&S location near you at no cost.
Shipping Eligible for shipping. Freight will apply.
Loading locations...

Please log in to see if you’re eligible to purchase this product.

$2,018.84
Shipping calculated at checkout.
No Tariff No import tariff
Working on offers?

Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.

Description

Pure Sine Wave Inverter can be used to power a single Gate Operator with a 1 HP motor, or 2 Gate Operators with 1/2 HP motors, and Access Control Systems

  • Low Battery Alarm: 10.5 V
  • Low Battery Shutdown: 9.5 V
  • Overload Protection
  • Input Short Protection
  • Over Temperature Control (140°F / 60°C)
  • LED Status Indicators
  • Status Report Capability
  • Control Circuit
  • Selectable Power Out and Power Start Options
  • Continuous Operation / Quick Open Operation
  • Low Battery Shutdown and Operate Options
  • 2 Relays

Electrical

Continuous Power: 1000 Watts

Efficiency: 90%

Max AC Load Current:

Pure Sine Wave = 12.5 A

DC Input: 10 to 15 VDC

Nominal 12 VDC

Frequency: 60 Hz

AC Output Voltage: 120 VAC

Batteries

Maintenance Free, Rechargeable, Non-spillable, Sealed Lead-Acid (SLA), 12-Volt, 35.0 AH

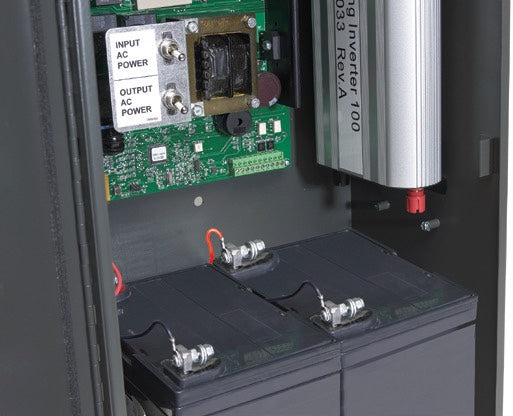

Pure Sine Wave Inverter includes 2 batteries (wired in parallel)

Cabinet contains room for two Batteries
