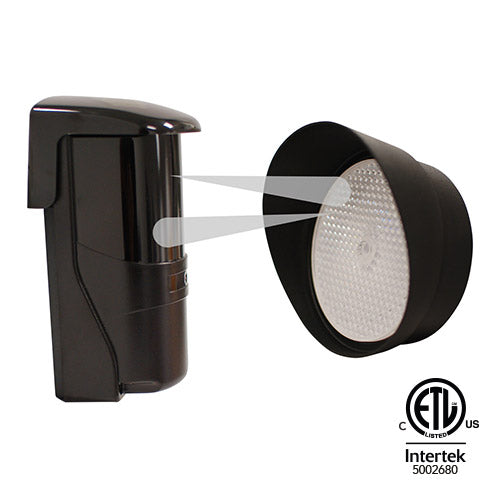

IGAZER50LR-UL Long Range Photo Eyes, 50ft Reflective Photoelectric Beam Sensor
by Maximum Controls
Product Code:
IGAZER50LR-UL
Eligible for shipping. Freight will apply.
Regular price
$147.58
Unit price
/
Unavailable
Shipping calculated at checkout.
IGAZER50LR-UL Long Range Photo Eyes, 50ft Reflective Photoelectric Beam Sensor is available for shipping.
Subject to a 7% tariff surcharge at checkout
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description
Features
- Long range – 50 ft. external range
- Works with N.C. and 10K gate operators
- Retro-reflective
- NEMA 4X(IP-66) waterproof/cable gland
- Infrared LED element
- PC upper casing, anti fog/dew/rain
- Round shape reflector – Diameter 3-1/4”
- Twin colors LED indicator for beam alignment
- Tamper switches included
Specifications
- Type: Retro-reflective
- Input volt: 12-250 VAC/DC (non polarity)
- Tx LED element: Infrared LED/Wave length 940 nm
- Beam spreading angle: 5°
- Contact capacity: 0.5A/120VAC (1A/30VDC)
- Response time: 10 msec
- Delay time of relay: 100 msec
- Sensing range: 50 feet
- LED indicators:
- Red LED off: Beam aligned / Red LED on: Beam broken
- Red LED flash: Beam alignment signal weak (re-align)
- Green LED on: Beam aligned proper
- Additional function: Tamper switches
- Wiring connection: Terminal block/ Cable gland (NEMA 4X(IP-66)
- Housing material: PC
- IP: NEMA 4X(IP-66)
- Environment/storage temp.: -13°F to 140°F / -31°F to 176°F
- Dimension: 4-5/8 (L) 2-1/4 (W) 2-1/4 (D) inches
