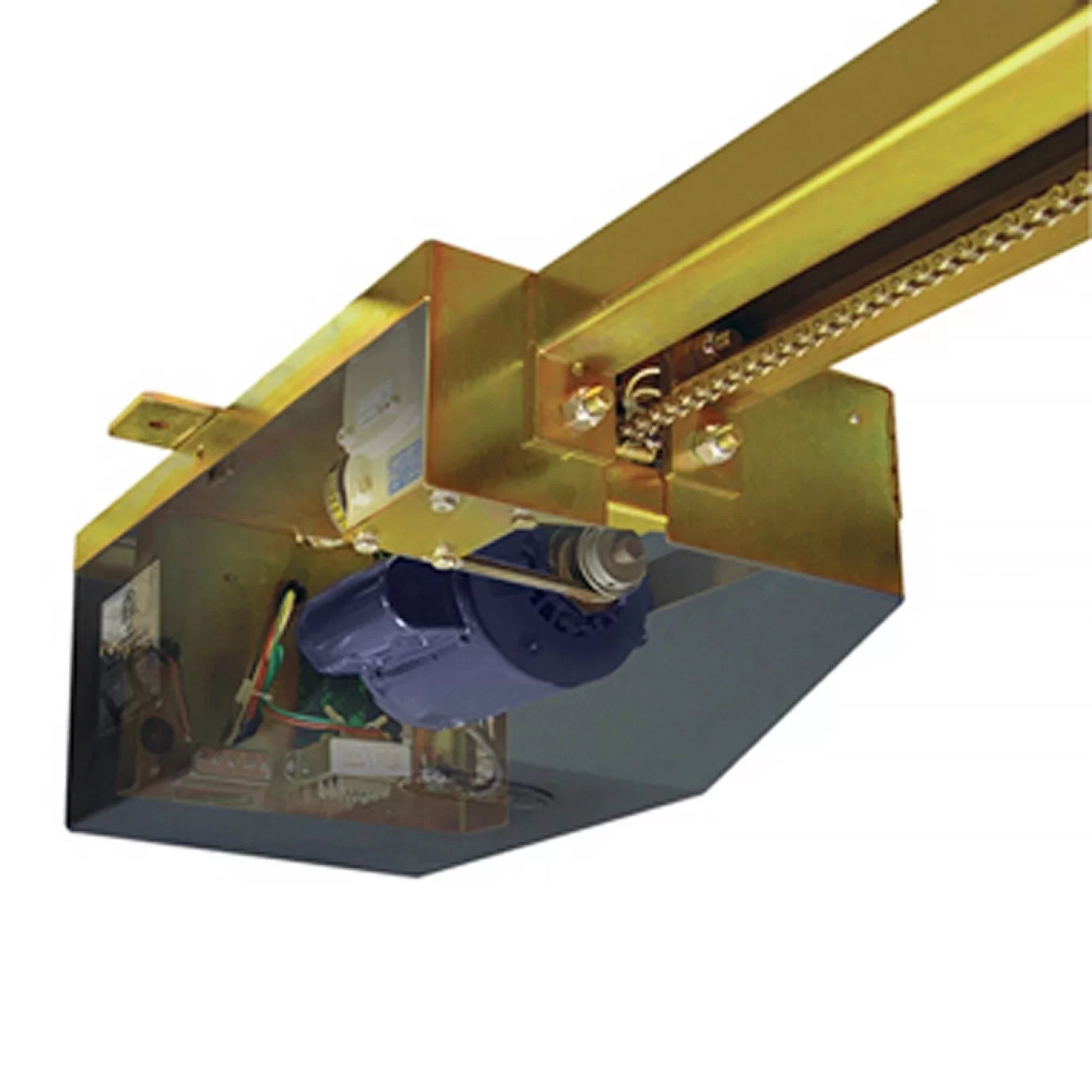

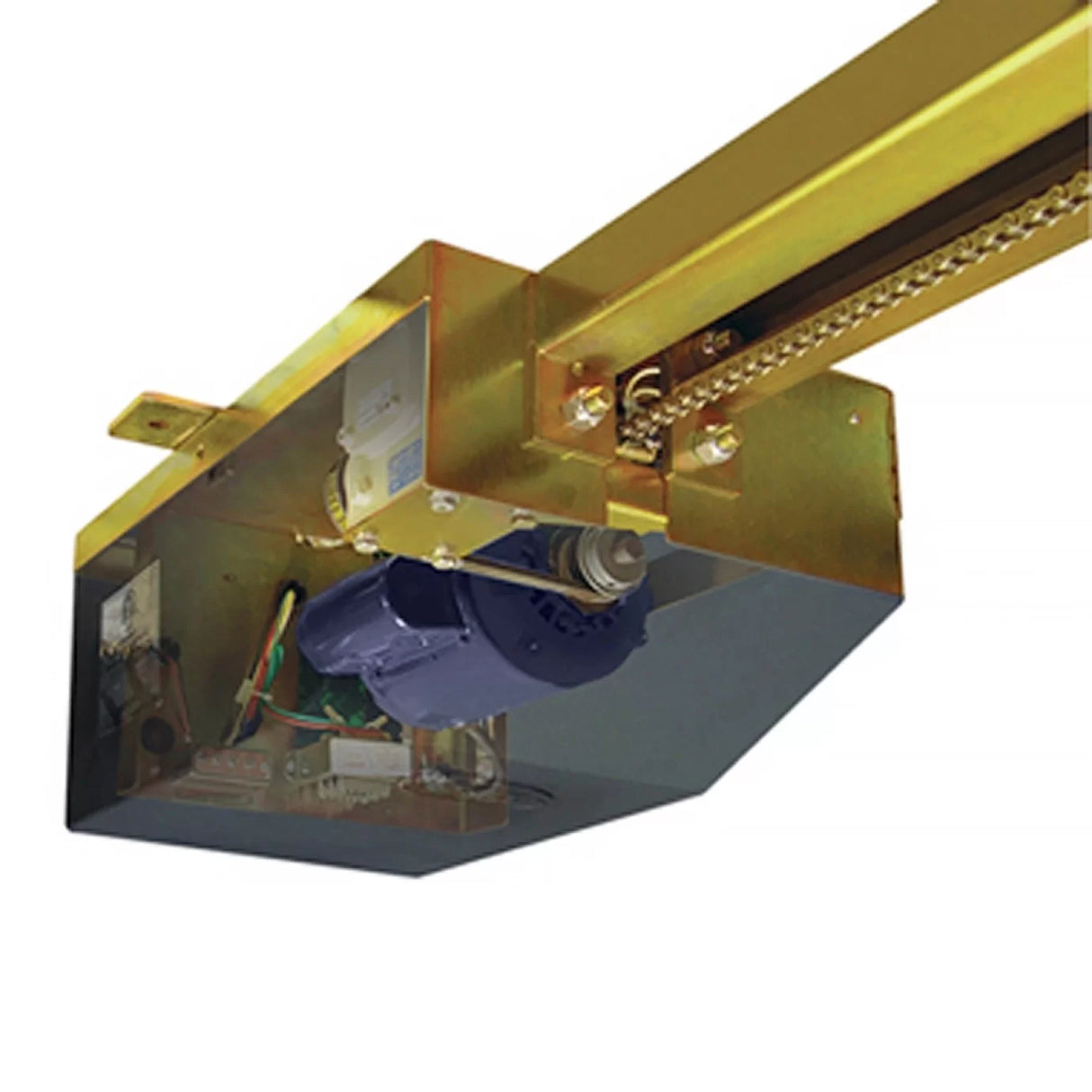

800-96-18 - 2000 ETL Overhead Gate Operator, 1/2HP, 120V, 20' at 450 lbs, Commercial
Eligible for shipping. Freight will apply.
800-96-18 - 2000 ETL Overhead Gate Operator, 1/2HP, 120V, 20' at 450 lbs, Commercial is available for shipping.
No import tariff
Please log in to see if you’re eligible to purchase this product.
Working on offers?
Create estimates, easily organize bids by project name and order your selected products when the job is awarded. Export to pdf, share and update anytime.
Description
Description
The RAM 2000 Series offers a durable 1/2, 3/4, or 1 horsepower, continuous duty motor, with high speed ball bearings and resettable overload button. The RAM 2000 series offers a heavy duty worm gear that is constantly bathed in oil for a smooth and whisper quiet operation. The system includes a battery backup in case of power outages and will open the gate automatically. It also comes with an emergency release for easy manual opening and closing of the gate during power outages and emergencies.
Specifications:
- Maximum gate length: 20’
- Operating Temperature: -10 to 160 degrees F.
- Gate Traveling Speed: Approx. 90 degrees opening in 14 sec.
- Overall Dimensions: 10” x 143" x 13'.
- Finish & Construction: 10 Ga Gold/Zinc plated metal

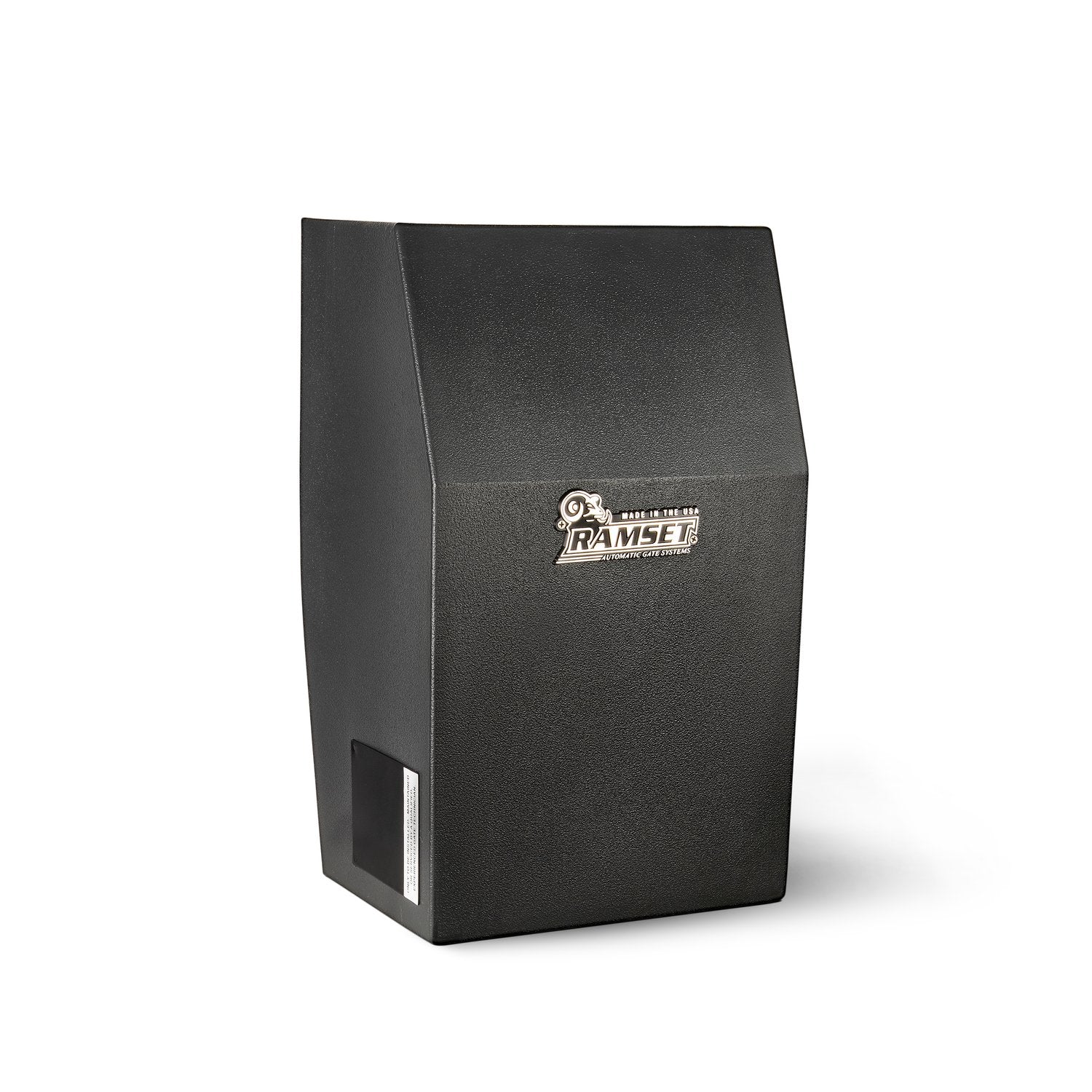

- Cover: High Impact resistant charcoal gray polyethylene.
- Gear Reducer: Heavy Duty Worm Gear
- Maximum gate weight: 400 lbs
- Motor: Continuous Duty
- 1/2 Hp
- 120VAC
- 4.5 amps
